BUCHER Double GEAR PUMP QX23/23 QX33/23 QX33/33 QX43/23 QX43/33

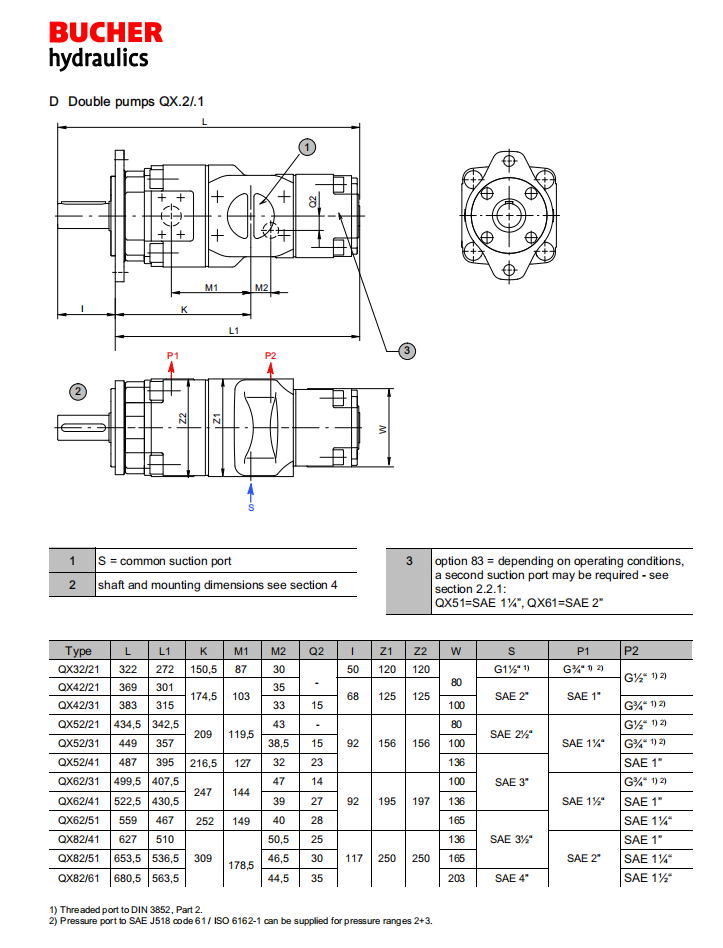

QX double pumps consist of two single pumps mounted on a common drive shaft. Hydraulically, the two pumps operate independently of one another but they share a common suction port in the pump's centre section. The larger pump of the combination is situated at the shaft end (the drive side) and is referred to as pump 1. With equal frame sizes, the pump with the larger displacement is situated at the drive side. Double pumps can be combined as shown in the following table. If a letter is shown at the intersection point of the two pumps, the letter identifies the page in section 5.2 that contains the relevant dimensional drawing. If there is no letter at the intersection point, then that pump combination is not possible. IMPORTANT: Double pumps with pressure range 4 on request QX32/21 QX42/21 QX42/31 QX52/21 QX52/31 QX52/41 QX62/31 QX62/41 QX62/51 QX82/41 QX82/51 QX82/61 QX22/22 QX32/22 QX32/32 QX42/22 QX42/32 QX42/42 QX52/22 QX52/32 QX52142 QX52/52 QX62/32 QX62142 QX62/52 QX62/62 QX82/42 QX82/52 QX82/62 QX82/82 QX32/23 QX42/23 QX42/33 QX52/23 QX52/33 QX52/43 QX62/33 QX62/43 QX62/53 QX82/43 QX82/53 QX82/63 QX33/21 QX43/21 QX43/31 QX53/21 QX53/31 QX53/41 QX63/31 QX63/41 QX63/51 QX83/41 QX83/51 QX83/61 QX23/22 QX33/22 QX33/32 QX43/22 QX43/32 QX43/42 QX53/22 QX53/32 QX53/42 QX53/52 QX63/32 QX63/42 QX63/52 QX63/62 QX83/42 QX83/52 QX83/62 QX83/82 QX23/23 QX33/23 QX33/33 QX43/23 QX43/33 QX43/43 QX53/23 QX53/33 QX53/43 QX53/53 QX63/33 QX63/43 QX63/53 QX63/63 QX83/43 QX83/53 QX83/63 QX83/83 QX43/43 QX53/23 QX53/33 QX53/43 QX53/53 QX63/33 QX63/43 QX63/53 QX63/63 QX83/43 QX83/53 QX83/63 QX83/83 QX21/23 QX31/23 QX31/33 QX41/23 QX41/33 QX41/43 QX51/23 QX51/33 QX51/43 QX51/53 QX61/33 QX61/43 QX61/53 QX61/63 QX81/43 QX81/53 QX81/63 QX81/83 QX21/21 QX31/21 QX31/31 QX41/21 QX41/31 QX41/41 QX51/21 QX51/31 QX51/41 QX51/51 QX61/31 QX61/41 QX61/51 QX61/61 QX81/41 QX81/51 QX81/61 QX81/81 QX21/22 QX31/22 QX31/32 QX41/22 QX41/32 QX41/42 QX51/22 QX51/32 QX51/42 QX51/52 QX61/32 QX61/42 QX61/52 QX61/62 QX81/42 QX81/52 QX81/62 QX81/82
