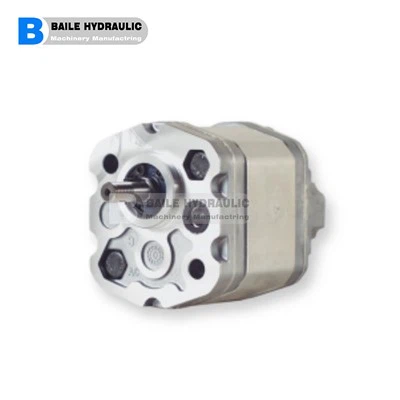

Aluminum Gear Pump ALP1
PA-ALP1 gear pumps are a series of single aluminum hydraulic pumps that offer high-performance. Available in SAE A, SAE AA, or SAE B in single rotation or reversible. For use in industrial and mobile applications..
|
Name |
PA-ALP1 Series Hydraulic gear pump |
|
Series |
Series 1 |
|
Sizes |
1.4 2.1 2.8 3.5 4.1 5.2 6.2 7.6 9.3 11 13.8cc/rev |
|
Nominal Pressure |
230 bar |
|
Maximum Pressure |
250 bar |
|
Operation Mode |
External Gear Pumps |
|
TYPE |
Displacement |
FLOW at |
MAX PRESSURE |
MAX SPEED |
||
|
P1 |
P2 |
P3 |
||||
|
|
cm³/rev |
litri/min |
bar |
bar |
bar |
rpm |
|
ALP1-D(S)-2 |
1.4 |
2 |
250 |
270 |
290 |
6000 |
|
ALP1-D(S)-3 |
2.1 |
2.9 |
250 |
270 |
290 |
6000 |
|
ALP1-D(S)-4 |
2.8 |
3.9 |
250 |
270 |
290 |
5000 |
|
ALP1-D(S)-5 |
3.5 |
4.9 |
250 |
270 |
290 |
5000 |
|
ALP1-D(S)-6 |
4.1 |
5.9 |
250 |
270 |
290 |
4000 |
|
ALP1-D(S)-7 |
5.2 |
7.4 |
230 |
245 |
260 |
4000 |
|
ALP1-D(S)-9 |
6.2 |
8.8 |
230 |
245 |
260 |
3800 |
|
ALP1-D(S)-11 |
7.6 |
10.8 |
200 |
215 |
230 |
3200 |
|
ALP1-D(S)-13 |
9.3 |
13.3 |
180 |
195 |
210 |
2600 |
|
ALP1-D(S)-16 |
11 |
15.7 |
170 |
185 |
200 |
2200 |
|
ALP1-D(S)-20 |
13.8 |
19.7 |
150 |
165 |
180 |
1800 |
