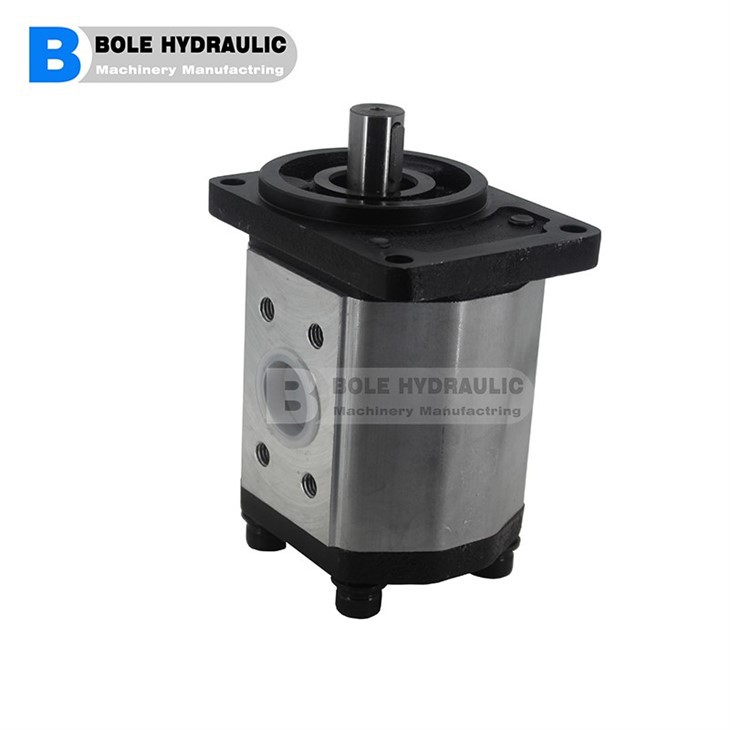

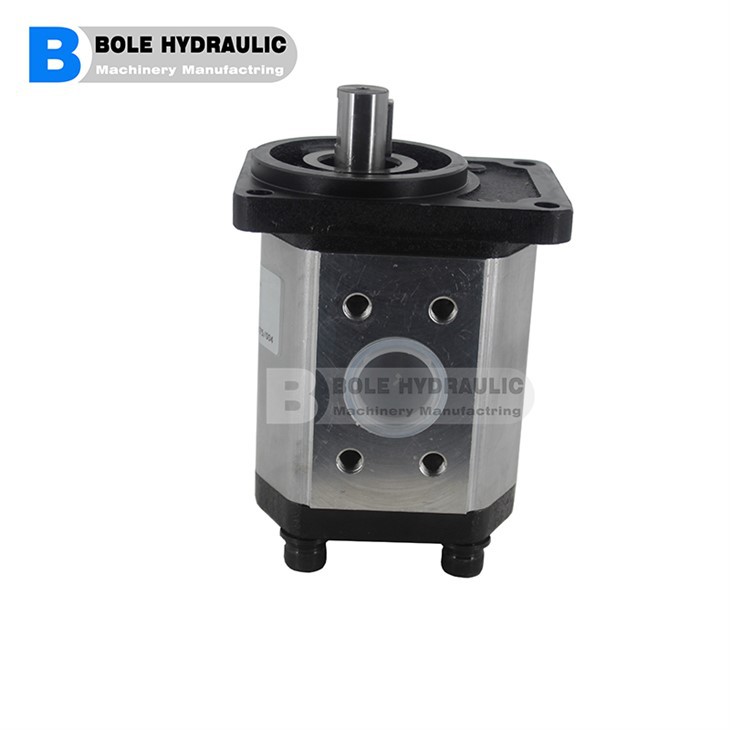

Ronzio Aluminum Group 3 Gear Pump Z3

NSH25M-3,NSH32M-3,NSH40M-3,NSH50M-3 single pump,NSH and double pump Welcome to send your requirements, we will help you find the products you need, make quotations and send relevant product parameters and drawings

Send Inquiry

Description

		20	25	30	35	40	45	50	55	60	64	70	80	90
CAPACITY	19.9	24.9	29.9	34.3	40.5	45.2	49.9	54.5	60	63.9	70	78.7	89.6
cm3/giro at 1000 (giri/min)	19.9	24.9	29.9	34.3	40.5	45.2	49.9	54.5	60	63.9	70	78.7	89.6
DELIVERY	29.9	37.4	44.9	51.5	60.8	67.8	74.9	81.8	90	95.9	105	118	134.4
lt/min at 1500 (giri/min)	29.9	37.4	44.9	51.5	60.8	67.8	74.9	81.8	90	95.9	105	118	134.4
A (mm)	100.8	104	107.2	110	114	117	120	123	126.5	129	132.9	138.6	145.6
B (mm)	38.5	40	41.6	43	45	46.5	48	49.5	51	52.5	54.5	57.3	60.8
Max working pressure (bar)	280	280	280	280	250	250	230	230	200	200	170	170	160
Max peak pressure (bar)	310	310	310	310	280	280	250	250	220	220	190	190	180
Max speed for P1 pressure (Rpm)	450	450	350	350	350	350	350	350	350	350	350	350	350
speed without load (Rpm)	3000	3000	3000	3000	2700	2700	2200	2200	2000	2000	1800	1800	1800
Coppia resa (Nm)	26.9	33.7	40.4	464	548	61.1	67.5	73.7	81.2	86.4	947	106.5	121.2
Mass (Kg)	10.6	10.8	11	11.2	11.4	11.5	11.7	11.9	12	12.2	12.4	12.7	13.1
