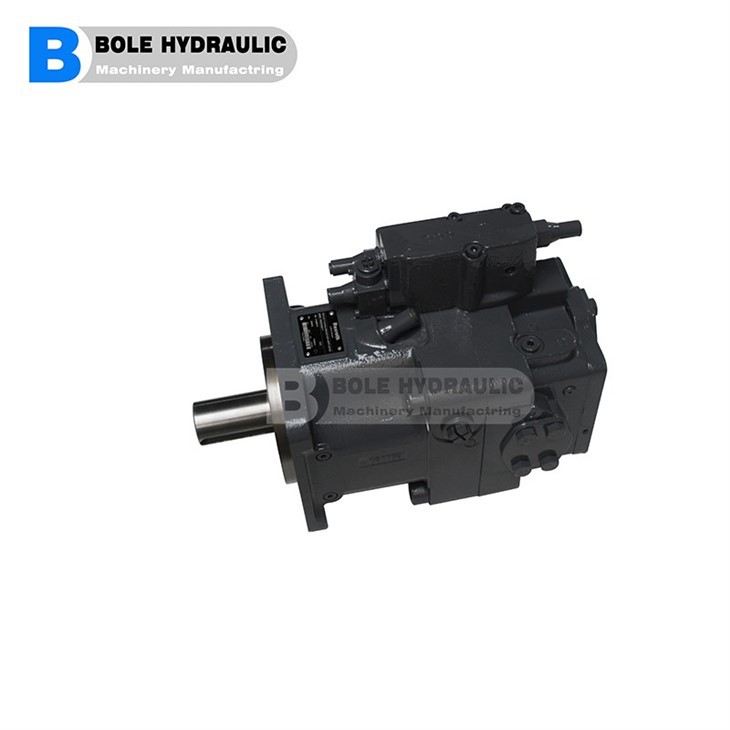

235-4109 2354109 10R-8695 Piston Pump For CAT 420D 432D 442D Backhoe Loader
About this item PART NUMBER: 235-4109 2354109 10R-8695 APPLICATION: for CAT 420D 432D 442D Backhoe Loader Hydraulic Piston Pump works absolutely well since every item we have executed a strict quality test prior shipping.Plug and play, easy to install, you could use it directly. Please check the specification carefully to ensure you get what you want.Our products are made of High quality durability material and excellent crafts.Proper use of the product can make the product have a longer service life Please rest assured to buy our products, we will deliver the products to you faster.
About this itemPART NUMBER: 235-4109 2354109 10R-8695 APPLICATION: for CAT 420D 432D 442D Backhoe Loader Hydraulic Piston Pump works absolutely well since every item we have executed a strict quality test prior shipping.Plug and play, easy to install, you could use it directly. Please check the specification carefully to ensure you get what you want.Our products are made of High quality durability material and excellent crafts.Proper use of the product can make the product have a longer service life Please rest assured to buy our products, we will deliver the products to you faster.
|
|||
|---|---|---|---|
| R902500005 | A A10VSO 18 DFE1/31R-PKC62K01 | ||
| R910979955 | A A10VSO 18 DFE1/31R-PKC62N00 | ||
| 28 | |||
| R902500005 | A A10VSO 18 DFE1/31R-PKC62K01 | ||
| R910979955 | A A10VSO 18 DFE1/31R-PKC62N00 | ||
| 45 | |||
| R910947012 | A A10VSO 45 DFE /31R-PPA12G80 | ||
| R910939691 | A A10VSO 45 DFE /31R-PPA12H00 | ||
| 71 | |||
| R910936184 | A A10VSO 71 DFE /3*UNGUEL***0 -SO203 | ||
| R910910314 | A A10VSO 71 DFE /3*UNGUEL***00 | ||
| 100 | |||
| R910936184 | A A10VSO 71 DFE /3*UNGUEL***0 -SO203 | ||
| R910910314 | A A10VSO 71 DFE /3*UNGUEL***00 | ||
| 140 | |||
| R902469087 | A A10VSO 140 LA6S /32R-VSB22U99 | ||
| R910965853 | A A10VSO140 DFE /31R-PPB12K26 -SO487 | ||
| 180 | |||
| R902487703 | A A10VSO 180 DR /32R-VPB22U99 | ||
| R902515907 | A A10VSO180 DFEH/32R-VSB32U00 | ||
| Series | A10VSO Series Variable Piston Pumps (Series 31) |
| Specifications | A10VSO28, A10VSO45, A10VSO71, A10VSO100, A10VSO140,A10VSO31,A10VS032 |
| Working pressure | Rated pressure: 28 MPa, Peak pressure: 35 MPa |
Control mode: DG - Two-Point Direct Control DR- Pressure Control DRG - Remote Pressure Control DFR, DFR1 - Pressure and Flow Control DFLR - Pressure, Flow and Power Control ED-Electric Hydraulic Control |
Characteristic: - Axial piston variable pump with swashplate structure is used for hydrostatic transmission in open circuit. - Flow is proportional to transmission speed and displacement. - By adjusting the angle of the rotating swashplate, the stepless change of flow rate can be realized. - Two shell outlets. - Excellent oil absorption characteristics. - Low noise level. - Long service life. - Axial and radial load capacity of transmission shaft. - Ideal power-weight ratio. - Various control ranges. - Short control time. - The pump is driven by a through shaft, and can be loaded with gear pumps or axial piston pumps less than or equal to the same specifications, that is, 100% through shaft drive. |
| Size | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Version | Standard | ||||||||
| Displacement | Vg max | cm³ | 18 | 28 | 45 | 71 | 100 | 140 | |
| geometric, per revolution | |||||||||
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed | at Vg max | nnom | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
| Flow | at Vg max and nnom | qV nom | l/min | 59 | 84 | 117 | 156 | 200 | 252 |
| at Vg max and n = 1500 rpm | qV 1500 | l/min | 27 | 42 | 68 | 107 | 150 | 210 | |
| Power | at qV nom and pnom | P | kW | 30 | 39 | 55 | 73 | 93 | 118 |
| at qV 1500 and pnom | P 1500 | kW | 12.6 | 20 | 32 | 50 | 70 | 98 | |
| Torque | at Vg max and pnom | M | Nm | 80 | 125 | 200 | 316 | 445 | 623 |
| Weight (approx.) | m | kg | 12 | 15 | 21 | 33 | 45 | 60 | |
