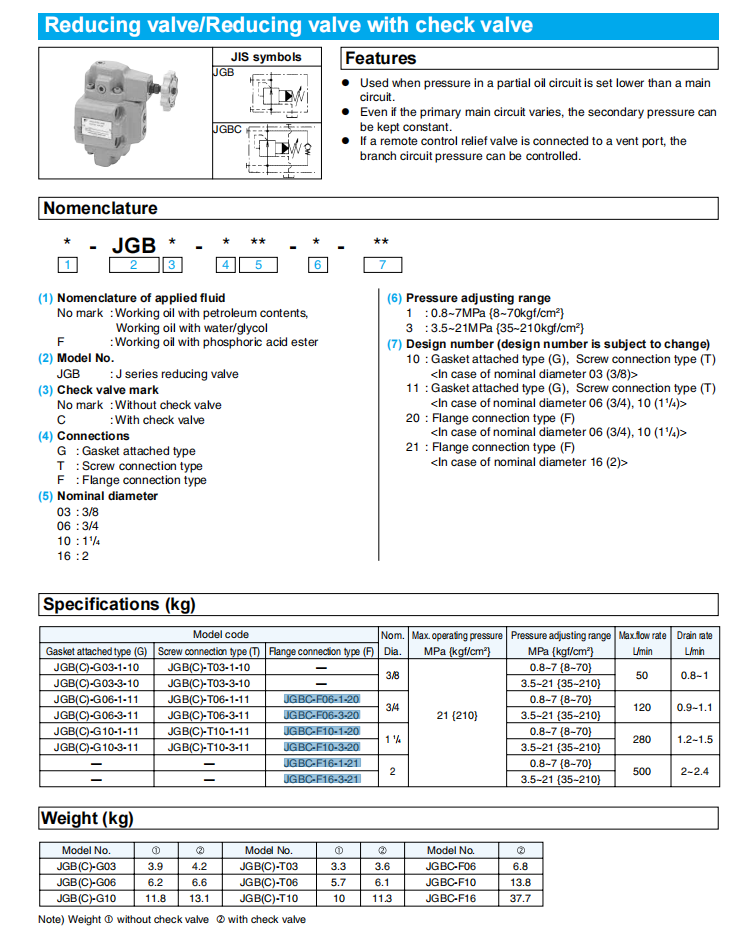

DAIKIN JGB Reducing Valve JGBC Reducing Valve With Check Valve JGB-G03-3-10 JGB-G06-1-11 JGB-G06-3-11

JGB Reducing valve Used when pressure in a partial oil circuit is set lower than a main circuit. ! Even if the primary main circuit varies, the secondary pressure can be kept constant. ! If a remote control relief valve is connected to a vent port, the branch circuit pressure can be controlled. Connections G : Gasket attached type T : Screw connection type F : Flange connection type JGB-G03-1-10 JGB-G03-3-10 JGB-G06-1-11 JGB-G06-3-11 JGB-G10-1-11 JGB-G10-3-11 JGBC-G03-1-10 JGBC-G03-3-10 JGBC-G06-1-11 JGBC-G06-3-11 JGBC-G10-1-11 JGBC-G10-3-11 JGBC-T03-1-10 JGBC-T03-3-10 JGBC-T06-1-11 JGBC-T06-3-11 JGBC-T10-1-11 JGBC-T10-3-11 JGB-T03-1-10 JGB-T03-3-10 JGB-T06-1-11 JGB-T06-3-11 JGB-T10-1-11 JGB-T10-3-11 JGBC-F06-1-20 JGBC-F06-3-20 JGBC-F10-1-20 JGBC-F10-3-20 JGBC-F16-1-21 JGBC-F16-3-21 JGB-G10-1-11 JGB-G10-3-11 JGBC-G03-1-10 JGBC-G03-3-10 JGBC-G06-1-11 JGBC-G06-3-11 JGBC-G10-1-11 JGBC-G10-3-11 JGBC-T03-1-10 JGBC-T03-3-10 JGBC-T06-1-11 JGBC-T06-3-11 JGBC-T10-1-11 JGBC-T10-3-11 JGB-T03-1-10 JGB-T03-3-10 JGB-T06-1-11 JGB-T06-3-11 JGB-T10-1-11 JGB-T10-3-11 JGBC-F06-1-20 JGBC-F06-3-20 JGBC-F10-1-20 JGBC-F10-3-20 JGBC-F16-1-21 JGBC-F16-3-21
