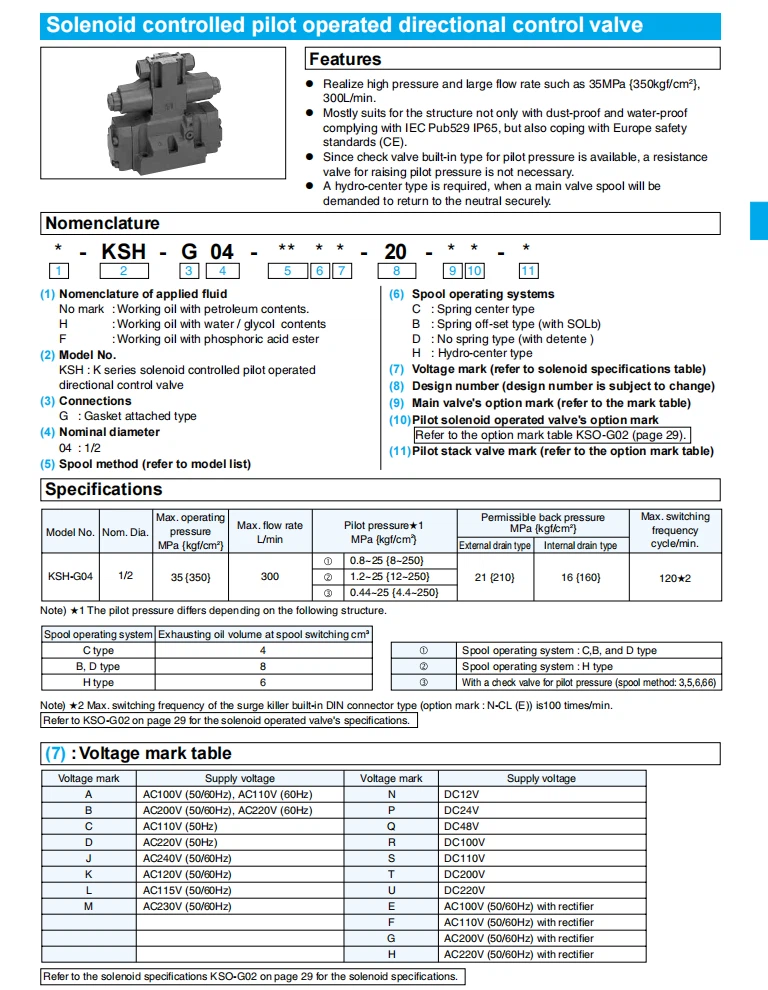

DAIKIN KSH-G04 Solenoid Controlled Pilot Operated Directional Control Valve KSH-G04-2C KSH-G04-3C KSH-G04-33C KSH-G04-4C KSH-G04-44C KSH-G04-5C KSH-G04-6C KSH-G04-66C KSH-G04-8C KSH-G04-81C

Realize high pressure and large flow rate such as 35MPa {350kgf/cm2}, 300L/min. ! Mostly suits for the structure not only with dust-proof and water-proof complying with IEC Pub529 IP65, but also coping with Europe safety standards (CE). ! Since check valve built-in type for pilot pressure is available, a resistance valve for raising pilot pressure is not necessary. ! A hydro-center type is required, when a main valve spool will be demanded to return to the neutral securely .KSH-G04-2C KSH-G04-3C KSH-G04-33C KSH-G04-4C KSH-G04-44C KSH-G04-5C KSH-G04-6C KSH-G04-66C KSH-G04-8C KSH-G04-81C KSH-G04-9C KSH-G04-91C KSH-G04-2B KSH-G04-3B KSH-G04-33B KSH-G04-2D KSH-G04-3D KSH-G04-33D KSH-G04-2H KSH-G04-3H KKSH-G04-33H KSH-G04-4H KSH-G04-44H KSH-G04-5H KSH-G04-6H KSH-G04-66H KSH-G04-8H KSH-G04-81H KSH-G04-9H KSH-G04-91H
