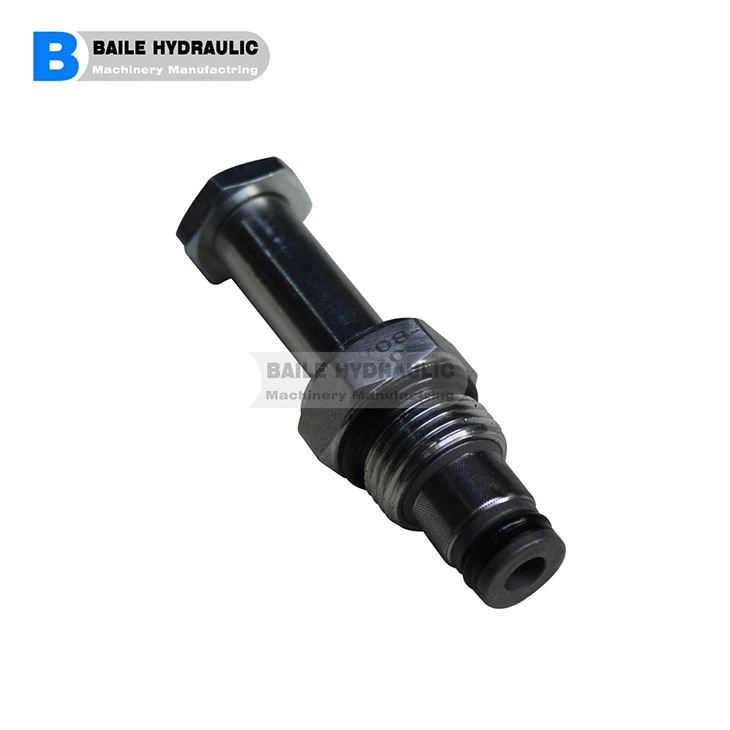

EATON Vickers FCV11-12 - Flow Restrictor Valve FCV11-12-S-0-NV

Description This is a manually adjusted cartridge type needle valve. With fine control it is ideal for none compensated speed control of actuators or as a control orifice in conjunction with a pressure compensator Total shut off can be achieved allowing the valve to be used as a shut of valve.Needle 114 L/min • 350 bar (5000 psi). Performance data is typical with fluid at 21,8 cSt (105 SUS) and 49°C (120°F). Operation This needle valve is a variable orifice used to create a pressure drop when flow passes from port 1 to 2 or port 2 to 1. Clockwise rotation of the adjust screw de-creases the orifice size to completely closed and anticlockwise increases the orifice. The setting can be locked using the lock nut on the adjust screw.
