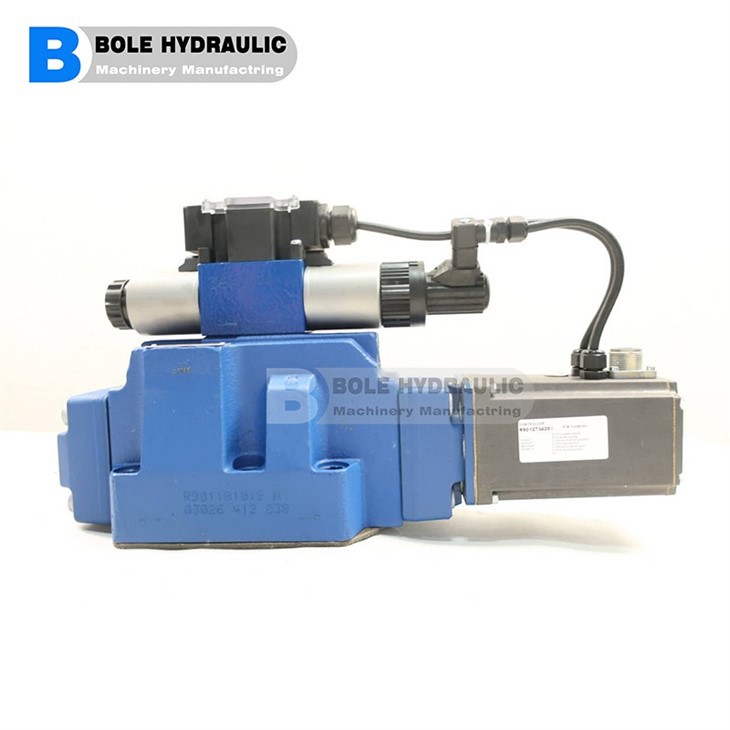

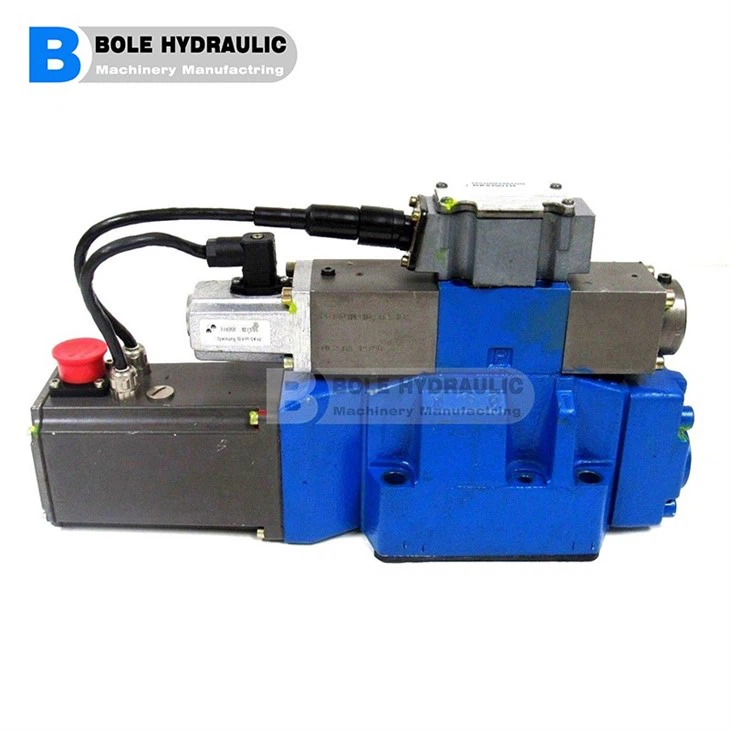

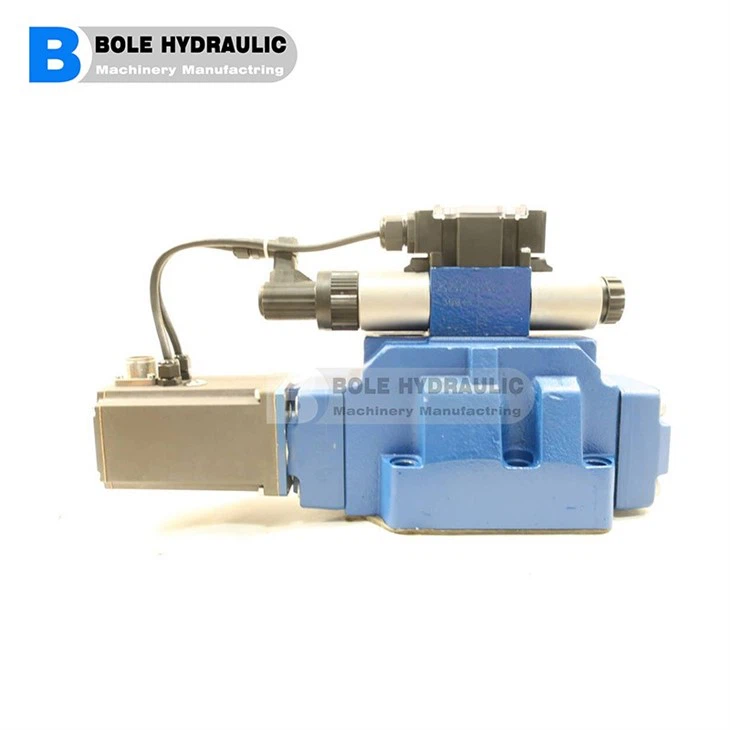

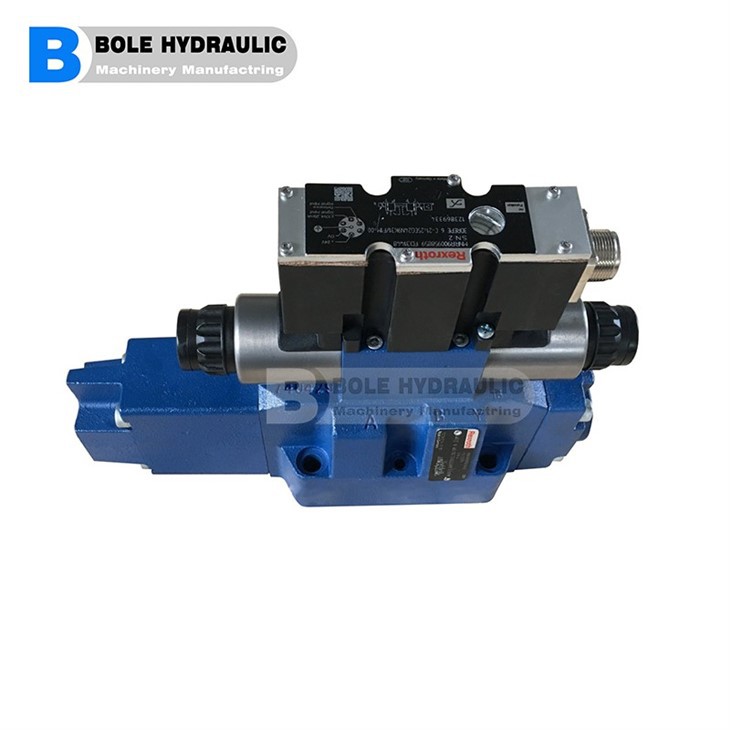

R900914841 4WREE6V1-32-24/G24K31/A1V 4WREE Series Proportional Directional Valve

Rexroth 4WREE Series Proportional Directional Valves Size 6, 10 Component series 2X Maximum operating pressure 315 bar Maximum flow 180 l/min Features – Actuation is by proportional solenoids with central thread and removable coil – Electrical position feed-back – For subplates: porting pattern to DIN 24 340 form A, ISO 4401, CETOP-RP 121 H, NFPA T3.5.1M R1, and ANSI B93.7 D 03, D 05 Subplates to SAARalog sheets RA 45 052 and RA 45 054 (separate order), see pages 15 and 16 – Spring centered control spool – Model 4WREE, integrated valve electronics with interface A1and F1 – Control electronics for model 4WRE: electronic amplifier VT-VRPA2-1-1X in Eurocard format (separate order) Type Code: 01 02 03 04 05 06 07 08 09 10 11 4 WREE ‒ 2X / G24 K31 / * 01 4 main ports 4 02 Proportional directional valve with electrical position feedback and integrated electronics (OBE) WREE 03 Size 6 6 Size 10 10 04 Symbols; for the possible version, see "Symbols/Circuit diagrams" E; E1-; V; V1-; W; W1-; EA; WA Rated flow NG6 05 4 l/min 4 8 l/min 8 16 l/min 16 32 l/min 32 Rated flow NG10 05 25 l/min 25 50 l/min 50 75 l/min 75 06 Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) 2X 07 Supply voltage 24 V G24 Electrical connection 08 Connector DIN EN 175201-804 K31 Electrical interface 09 Command value ±10 V A1 Command value 4 to 20 mA F1 Seal material 10 NBR seals M FKM seals V 11 Further details in the plain text * SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts. Rexroth 4WREE6E/4WREE6EA/4WREE6Q/4WREE6V/4WREE6W/4WREE10E/4WREE10Q/4WREE10V/4WREE10W Proportional Directional Valves on Sale, Short lead time, Best price!!! R900958157 4WREE10E1-25-2X/G24K31/A1V R901066667 4WREE10E1-25-2X/G24K31/F1V R900933076 4WREE10E1-50-2X/G24K31/A1V R901188937 4WREE10E1-50-2X/G24K31/A1V-660 R901354776 4WREE10E1-50-2X/G24K31/F1M R900703908 4WREE10E1-50-2X/G24K31/F1V R900927232 4WREE10E1-75-2X/G24K31/A1V R901188938 4WREE10E1-75-2X/G24K31/A1V-660 R900970089 4WREE10E1-75-2X/G24K31/F1V R900933073 4WREE10E25-2X/G24K31/A1V R900956574 4WREE10E25-2X/G24K31/F1V R900949382 4WREE10E3-50-2X/G24K31/A1V R900972424 4WREE10E3-75-2X/G24K31/A1V R901048034 4WREE10E3-75-2X/G24K31/F1V R900927231 4WREE10E50-2X/G24K31/A1V R901219466 4WREE10E50-2X/G24K31/A1V=XV R901179145 4WREE10E50-2X/G24K31/A1V-660 R900943094 4WREE10E50-2X/G24K31/F1V R900927230 4WREE10E75-2X/G24K31/A1V R901219782 4WREE10E75-2X/G24K31/A1V=XV R901289129 4WREE10E75-2X/G24K31/A1V-967 R900927356 4WREE10E75-2X/G24K31/F1V R900967790 4WREE10EA25-2X/G24K31/A1V R900767561 4WREE10EA25-2X/G24K31/F1V R900939866 4WREE10EA50-2X/G24K31/A1V R900971420 4WREE10EA50-2X/G24K31/F1V R900940191 4WREE10EA75-2X/G24K31/A1V R900976330 4WREE10EA75-2X/G24K31/F1V R900710343 4WREE10EB50-2X/G24K31/A1V R900950497 4WREE10EB75-2X/G24K31/A1V R900724343 4WREE10EB75-2X/G24K31/F1V R901113546 4WREE10Q00-2X/G24K31/A1V-598=DE R900927237 4WREE10Q2-50-2X/G24K31/A1V R900927236 4WREE10Q2-75-2X/G24K31/A1V R901143612 4WREE10Q3-75-2X/G24K31/A1V-912 R901066046 4WREE10Q5-50-2X/G24K31/A1V R901113345 4WREE10Q5-50-2X/G24K31/A1V=DE R901028415 4WREE10R3-75-2X/G24K31/A1V R901341484 4WREE10R3-75-2X/G24K31/F1V R901037424 4WREE10R75-2X/G24K31/A1V R901349596 4WREE10R75-2X/G24K31/A1V-660 R900724591 4WREE10R75-2X/G24K31/F1V R900950365 4WREE10V1-25-2X/G24K31/A1V R900976334 4WREE10V1-25-2X/G24K31/F1V R900943804 4WREE10V1-50-2X/G24K31/A1V R900972643 4WREE10V1-50-2X/G24K31/F1V R901233907 4WREE10V1-50-2X/G24K31/F1V-876 R900950902 4WREE10V1-75-2X/G24K31/A1V R901024870 4WREE10V1-75-2X/G24K31/F1V R900933075 4WREE10V25-2X/G24K31/A1V R901179107 4WREE10V25-2X/G24K31/A1V-660 R900779950 4WREE10V25-2X/G24K31/F1V R900927235 4WREE10V50-2X/G24K31/A1V R901179034 4WREE10V50-2X/G24K31/A1V-660 R901071199 4WREE10V50-2X/G24K31/A1V-826 R901272730 4WREE10V50-2X/G24K31/A1V-956 R900924975 4WREE10V50-2X/G24K31/F1V R901268329 4WREE10V50-2X/G24K31/F1V-876 R901071988 4WREE10V50-2X=G24K31/A1V-826 R901276917 4WREE10V50-2X=G24K31/A1V-956 R900924607 4WREE10V75-2X/G24K31/A1V R901179032 4WREE10V75-2X/G24K31/A1V-660 R901060222 4WREE10V75-2X/G24K31/A1V-826 R901272835 4WREE10V75-2X/G24K31/A1V-956 R900617269 4WREE10V75-2X/G24K31/F1V R901268334 4WREE10V75-2X/G24K31/F1V-876 R901071989 4WREE10V75-2X=G24K31/A1V-826 R901276978 4WREE10V75-2X=G24K31/A1V-956 R900956458 4WREE10W1-25-2X/G24K31/A1V R900962405 4WREE10W1-25-2X/G24K31/F1V R900933077 4WREE10W1-50-2X/G24K31/A1V R901285747 4WREE10W1-50-2X/G24K31/A1V-967 R900965185 4WREE10W1-50-2X/G24K31/F1V R900927234 4WREE10W1-75-2X/G24K31/A1V R901289124 4WREE10W1-75-2X/G24K31/A1V-967 R900976119 4WREE10W1-75-2X/G24K31/F1V R900933074 4WREE10W25-2X/G24K31/A1V R900953102 4WREE10W25-2X/G24K31/F1V R901185591 4WREE10W2-75-2X/G24K31/A1V R900935771 4WREE10W3-25-2X/G24K31/A1V R900931319 4WREE10W3-50-2X/G24K31/A1V R900969321 4WREE10W3-75-2X/G24K31/A1V R900244748 4WREE10W3-75-2X/G24K31/F1V R900931371 4WREE10W50-2X/G24K31/A1V R900949806 4WREE10W50-2X/G24K31/F1V R900927233 4WREE10W75-2X/G24K31/A1V R900969501 4WREE10W75-2X/G24K31/A1V=DE R900741017 4WREE10W75-2X/G24K31/A1V=LB R901135118 4WREE10W75-2X/G24K31/A1V-280 R901293243 4WREE10W75-2X/G24K31/A1V-660 R901284098 4WREE10W75-2X/G24K31/A1V-967 R900948360 4WREE10W75-2X/G24K31/F1V R901060996 4WREE10WA25-2X/G24K31/F1V R900247296 4WREE10WA50-2X/G24K31/A1V R901063131 4WREE10WA50-2X/G24K31/F1V R901002587 4WREE10WA75-2X/G24K31/A1V R900963483 4WREE10WA75-2X/G24K31/F1V R901097145 4WREE10WB50-2X/G24K31/A1V R900960910 4WREE10WB50-2X/G24K31/F1V R901268120 4WREE10WB75-2X/G24K31/A1V R900938420 4WREE6E04-2X/G24K31/A1V R900978168 4WREE6E04-2X/G24K31/F1V R900912156 4WREE6E08-2X/G24K31/A1V R901289133 4WREE6E08-2X/G24K31/A1V-967 R900928726 4WREE6E08-2X/G24K31/F1V R900933794 4WREE6E1-08-2X/G24K31/A1V R900976811 4WREE6E1-08-2X/G24K31/F1V R900915686 4WREE6E1-16-2X/G24K31/A1V R901155084 4WREE6E1-16-2X/G24K31/A1V-280 R900617482 4WREE6E1-16-2X/G24K31/F1V R900928553 4WREE6E1-32-2X/G24K31/A1V R901179025 4WREE6E1-32-2X/G24K31/A1V-660 R900949222 4WREE6E1-32-2X/G24K31/F1V R901267814 4WREE6E1-32-2X/G24K31/F1V-660 R900920567 4WREE6E16-2X/G24K31/A1V R900774364 4WREE6E16-2X/G24K31/A1V=LB R900941623 4WREE6E16-2X/G24K31/F1V R901164513 4WREE6E16-2X/G24K31/F1V-660 R900907114 4WREE6E32-2X/G24K31/A1V R900975521 4WREE6E32-2X/G24K31/A1V=LB R901161258 4WREE6E32-2X/G24K31/A1V-204 R901220128 4WREE6E32-2X/G24K31/A1V-204=XV R901179031 4WREE6E32-2X/G24K31/A1V-660 R900925733 4WREE6E32-2X/G24K31/F1V R900706670 4WREE6E3-32-2X/G24K31/A1V R900957273 4WREE6E3-32-2X/G24K31/F1V R900950317 4WREE6EA08-2X/G24K31/A1V R900937147 4WREE6EA08-2X/G24K31/F1V R900913433 4WREE6EA16-2X/G24K31/A1V R900973289 4WREE6EA16-2X/G24K31/F1V R900912521 4WREE6EA32-2X/G24K31/A1V R900969497 4WREE6EA32-2X/G24K31/A1V=DE R900929889 4WREE6EA32-2X/G24K31/F1V R901032102 4WREE6EB04-2X/G24K31/F1V R901073284 4WREE6EB08-2X/G24K31/A1V R901063172 4WREE6EB08-2X/G24K31/F1V R900776804 4WREE6EB16-2X/G24K31/A1V R900932498 4WREE6EB32-2X/G24K31/A1V R900964078 4WREE6EB32-2X/G24K31/F1V R901095159 4WREE6Q00-2X/G24K31/A1V-598 R901113540 4WREE6Q00-2X/G24K31/A1V-598=DE R900912149 4WREE6Q2-08-2X/G24K31/A1V R901250869 4WREE6Q2-08-2X/G24K31/F1V R900912150 4WREE6Q2-16-2X/G24K31/A1V R900912154 4WREE6Q2-32-2X/G24K31/A1V R901287575 4WREE6Q2-32-2X/G24K31/F1V R901192082 4WREE6Q5-08-2X/G24K31/A1V R901116919 4WREE6Q5-32-2X/G24K31/A1V=DE R900936357 4WREE6V04-2X/G24K31/A1V R900976331 4WREE6V04-2X/G24K31/F1V R900909367 4WREE6V08-2X/G24K31/A1V R900921427 4WREE6V08-2X/G24K31/F1V R900935426 4WREE6V1-08-2X/G24K31/A1V R900949863 4WREE6V1-08-2X/G24K31/F1V R900931195 4WREE6V1-16-2X/G24K31/A1V R900949899 4WREE6V1-16-2X/G24K31/F1V R901186570 4WREE6V1-16-2X/G24K31/F1V-660 R900914841 4WREE6V1-32-2X/G24K31/A1V R900709937 4WREE6V1-32-2X/G24K31/F1V R901254686 4WREE6V16-2X/G24K31/A0V-906 R900907440 4WREE6V16-2X/G24K31/A1V R901279270 4WREE6V16-2X/G24K31/A1V-822 R900940561 4WREE6V16-2X/G24K31/F1V R901176334 4WREE6V16-2X=G24K31/A1V R901120484 4WREE6V32-2X/G24K31/A0V-906 R900911681 4WREE6V32-2X/G24K31/A1V R901284535 4WREE6V32-2X/G24K31/A1V-968 R900926747 4WREE6V32-2X/G24K31/F1V R900246469 4WREE6W04-2X/G24K31/A1V R900967564 4WREE6W04-2X/G24K31/F1V R900923000 4WREE6W08-2X/G24K31/A1V R901278020 4WREE6W08-2X/G24K31/A1V-280 R900924283 4WREE6W08-2X/G24K31/F1V R900929827 4WREE6W1-08-2X/G24K31/A1V R900965071 4WREE6W1-08-2X/G24K31/F1V R900939627 4WREE6W1-16-2X/G24K31/A1V R901154928 4WREE6W1-16-2X/G24K31/A1V-280 R900937065 4WREE6W1-16-2X/G24K31/F1V R900913359 4WREE6W1-32-2X/G24K31/A1V R900933476 4WREE6W1-32-2X/G24K31/F1V R900925657 4WREE6W16-2X/G24K31/A1V R901048039 4WREE6W16-2X/G24K31/A1V=LB R901293245 4WREE6W16-2X/G24K31/A1V-660 R900950416 4WREE6W16-2X/G24K31/F1V R900929205 4WREE6W2-32-2X/G24K31/A1V R900911004 4WREE6W32-2X/G24K31/A1V R900969483 4WREE6W32-2X/G24K31/A1V=DE R900938299 4WREE6W32-2X/G24K31/A1V=LB R901287753 4WREE6W32-2X/G24K31/A1V-967 R900246793 4WREE6W32-2X/G24K31/F1V R900761481 4WREE6W9-16-2X/G24K31/A1V R900783449 4WREE6W9-32-2X/G24K31/A1V R901185980 4WREE6WA04-2X/G24K31/F1V R900973482 4WREE6WA08-2X/G24K31/A1V R901180378 4WREE6WA08-2X/G24K31/F1V R900974247 4WREE6WA16-2X/G24K31/A1V R900617766 4WREE6WA16-2X/G24K31/F1V R900926997 4WREE6WA32-2X/G24K31/A1V R900964934 4WREE6WA32-2X/G24K31/F1V R900780141 4WREE6WB32-2X/G24K31/A1V
