YUKEN CDSC CDST CDSG Solenoid Operated Poppet Type Two-Way Valves CDSC-01-C CDSC-03-C CDST-03-C CDST-03W-C CDSG-03-C

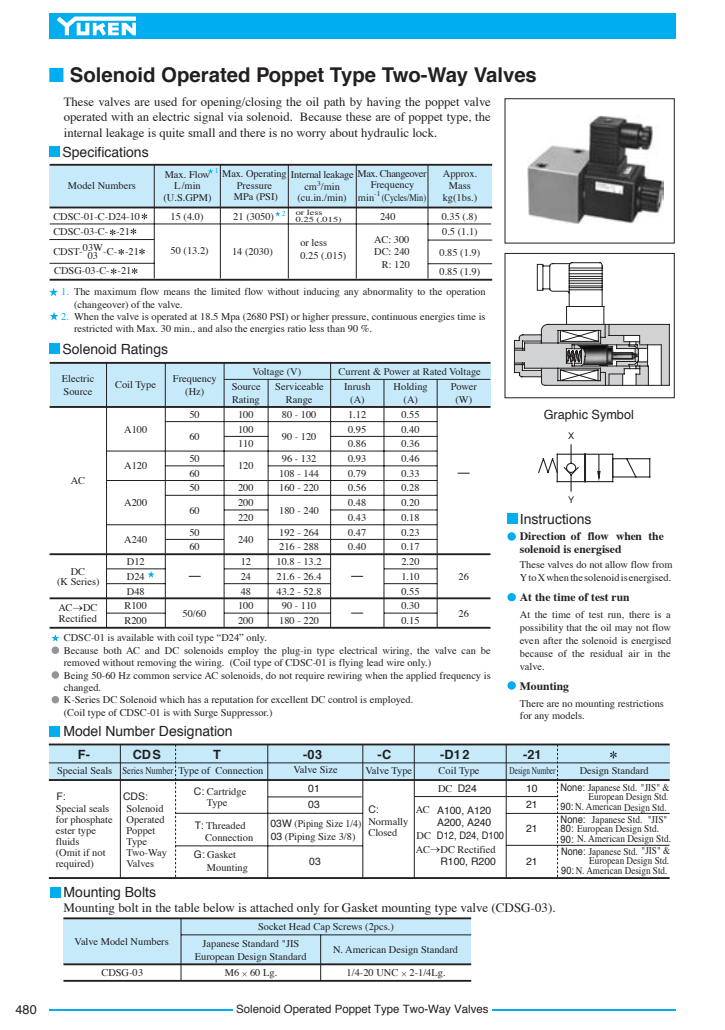

These valves are used for opening/closing the oil path by having the poppet valve operated with an electric signal via solenoid. Because these are of poppet type, the internal leakage is quite small and there is no worry about hydraulic lock. The maximum flow means the limited flow without inducing any abnormality to the operation (changeover) of the valve. When the valve is operated at 18.5 Mpa (2680 PSI) or higher pressure, continuous energies time is restricted with Max. 30 min., and also the energies ratio less than 90 %. CDSC-01 is available with coil type “D24” only. Because both AC and DC solenoids employ the plug-in type electrical wiring, the valve can be removed without removing the wiring. (Coil type of CDSC-01 is flying lead wire only.) Being 50-60 Hz common service AC solenoids, do not require rewiring when the applied frequency is changed. K-Series DC Solenoid which has a reputation for excellent DC control is employed.
