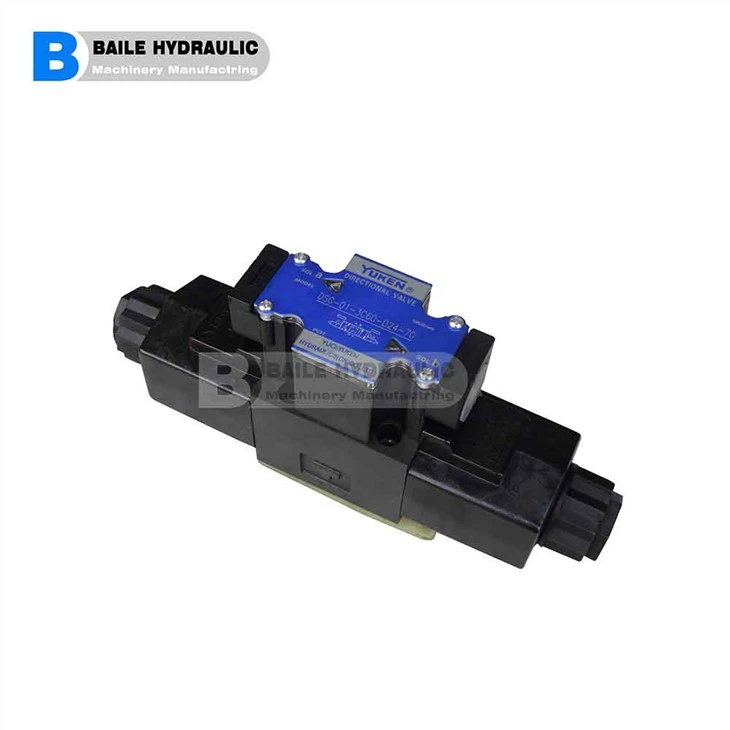

YUKEN DSG-01 Series 1/8 Solenoid Operated Directional Valves L-DSG-01-2B L-DSG-01-2N L-DSG-01-2D2 L-DSG-01-3C S-DSG-01-2B2 S-DSG-01-3C DSG-01-3C DSG-01-2D2 DSG-01-2B

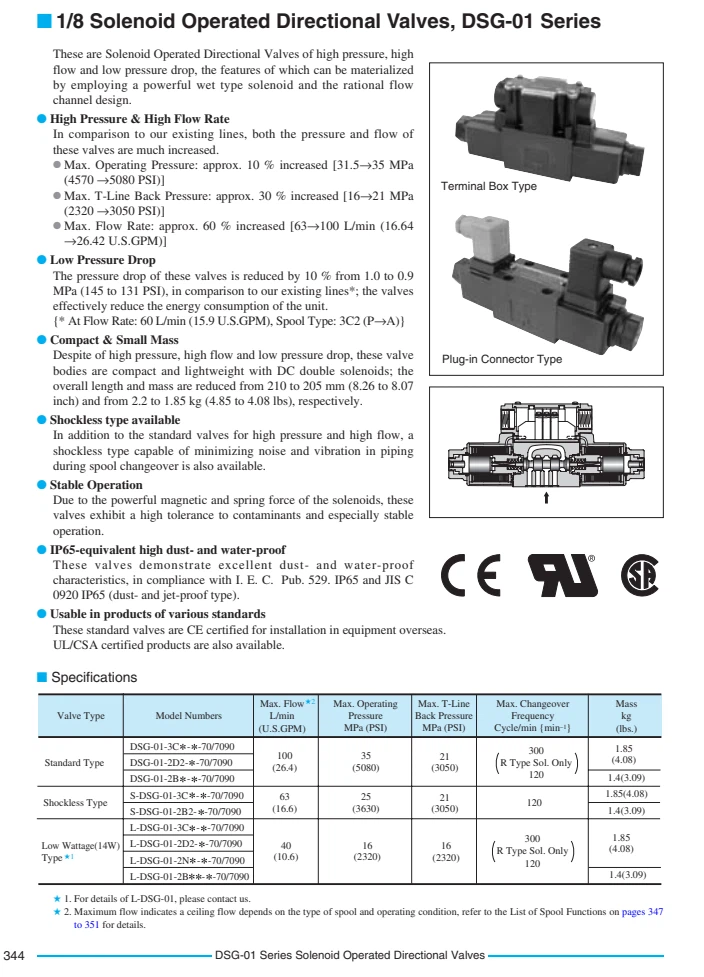

These are Solenoid Operated Directional Valves of high pressure, high flow and low pressure drop, the features of which can be materialized by employing a powerful wet type solenoid and the rational flow channel design. ● High Pressure & High Flow Rate In comparison to our existing lines, both the pressure and flow of these valves are much increased. ● Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa (4570 →5080 PSI)] ● Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa (2320 →3050 PSI)] ● Max. Flow Rate: approx. 60 % increased [63→100 L/min (16.64 →26.42 U.S.GPM)] ● Low Pressure Drop The pressure drop of these valves is reduced by 10 % from 1.0 to 0.9 MPa (145 to 131 PSI), in comparison to our existing lines*; the valves effectively reduce the energy consumption of the unit. {* At Flow Rate: 60 L/min (15.9 U.S.GPM), Spool Type: 3C2 (P→A)} ● Compact & Small Mass Despite of high pressure, high flow and low pressure drop, these valve bodies are compact and lightweight with DC double solenoids; the overall length and mass are reduced from 210 to 205 mm (8.26 to 8.07 inch) and from 2.2 to 1.85 kg (4.85 to 4.08 lbs), respectively. ● Shockless type available In addition to the standard valves for high pressure and high flow, a shockless type capable of minimizing noise and vibration in piping during spool changeover is also available. ● Stable Operation Due to the powerful magnetic and spring force of the solenoids, these valves exhibit a high tolerance to contaminants and especially stable operation. ● IP65-equivalent high dust- and water-proof These valves demonstrate excellent dust- and water-proof characteristics, in compliance with I. E. C. Pub. 529. IP65 and JIS C 0920 IP65 (dust- and jet-proof type). ● Usable in products of various standards These standard valves are CE certified for installation in equipment overseas. UL/CSA certified products are also available.
