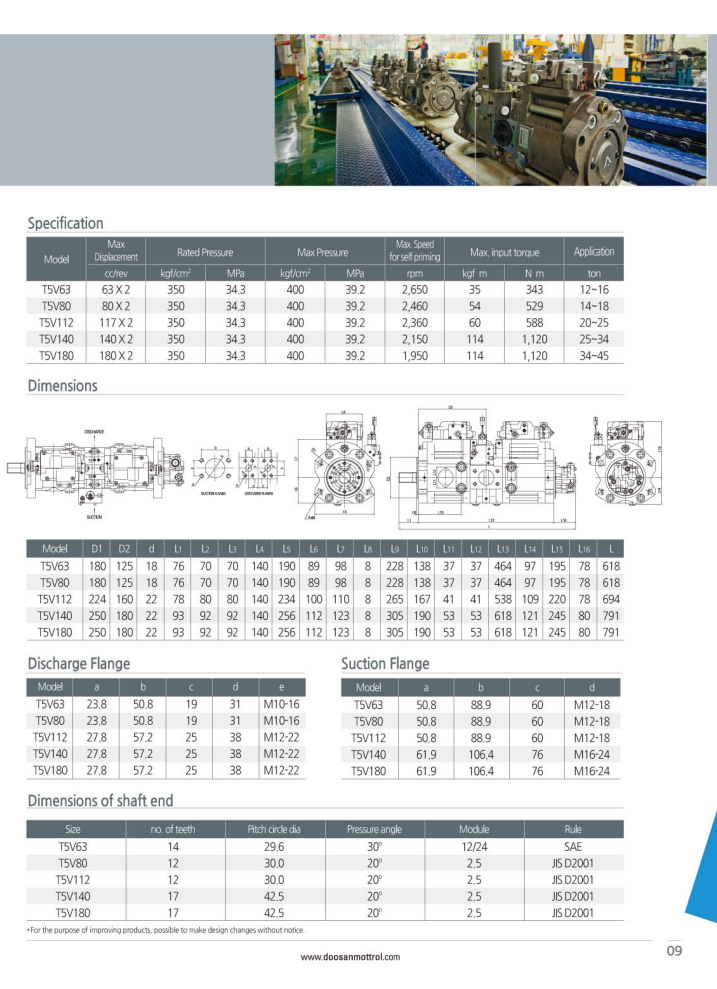

DOOSAN PISTON PUMP T5V SERIES T563 T5V80 T5V112 T5V140 T5V180

The T5V series piston pumps are developed for construction equipments and general industry These pump provide user with high output density and efficienc Moreover, they are specalized in construction equipments ano general industry applications with high quality by the functional design.The T5V series are high-pressure, swash-plate type pump developedfor construction equipments and general industrial machinery basedupon our long and rich experienceHigh reliability and longevity are achieved by adoption of the high-loadbearings and unique anti-wear materials for rotating groupThe spherical valve plate and improved hydraulic balance provide stabltcylinder rotation thus achieving high efficiency even in a lowpressureand low-speed operating rangeThe T5V series can be controlled by various methods such as flowcontrol, pressure control, horsepower control, and the combination otthese are standardized and availableOptional gear pumps for various sizes can be attached, Accordinglyand separate pump unit is not necessary as control or medium dutysystem pressure source. Hydraulic units can thus be made compact. • Valve will not operate with adjustment screw fully tightened and may cause shock in system. Also if adjustment screw is completely loose, the vent line will close and the main valve will not unload. Adjust screw to a midpoint position. T5V112DP-1P2R-9N1T T5V63DP-1P2R-9N1T T5V80DP-1P2R-9N1T T5V140DP-1P2R-9N1T T5V180DP-1P2R-9N1T T5V112DP-1P2L-9N1T T5V63DP-1P2L-9N1T T5V80DP-1P2L-9N1T T5V140DP-1P2L-9N1T T5V180DP-1P2L-9N1T
