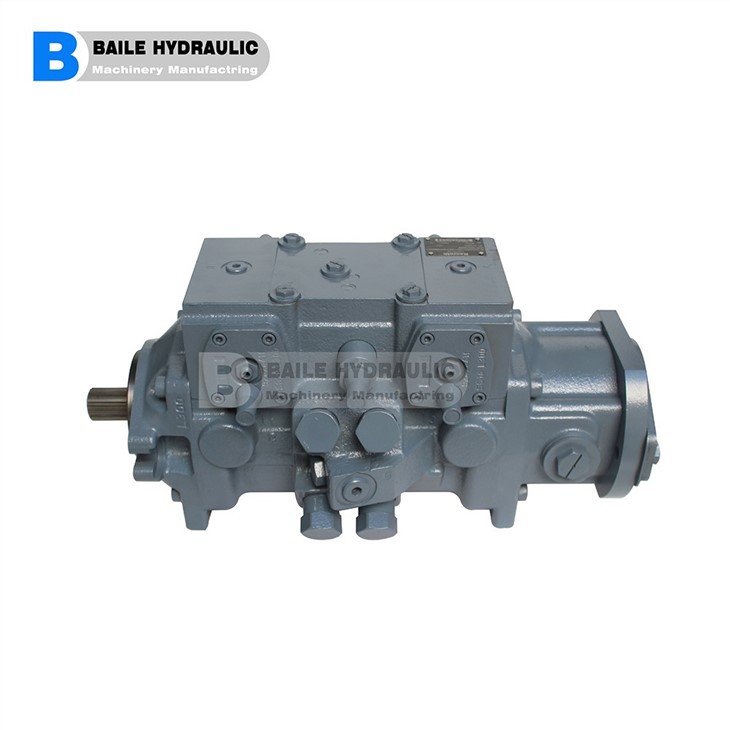

REXROTH A24VG Series 10 Axial Piston Variable Double Pump A24VG045-045 A24VG065-045 A24VG065-065 A24VG85-85 A24VG110-110 A24VG125-125

Series 10 Size A24VG045-045 A24VG065-045 A24VG065-065 A24VG85-85 A24VG110-110 A24VG125-125 Nominal pressure 450 bar Maximum pressure 500 bar Closed circuit Features – Variable double pump with two axial piston rotary groups of swashplate design for hydrostatic drives in closed circuit – The flow is proportional to the drive speed and displacement – Two flows independent of each other – The flow can be infinitely varied by adjusting the swashplate angle – Flow direction changes smoothly when the swashplate is moved through the neutral position – A wide range of highly adaptable control devices with different control and regulating functions, for all important applications – Four pressure relief valves are provided on the high-pressure side to protect the hydrostatic transmission (pump and motor) from overload – The high-pressure relief valves also function as boost valves – The maximum boost pressure is limited by a built-in low-pressure relief valve – High pressure level for high power density and good efficiency – Compact design for tight installation conditions – Optional through drive for mounting additional pumps
