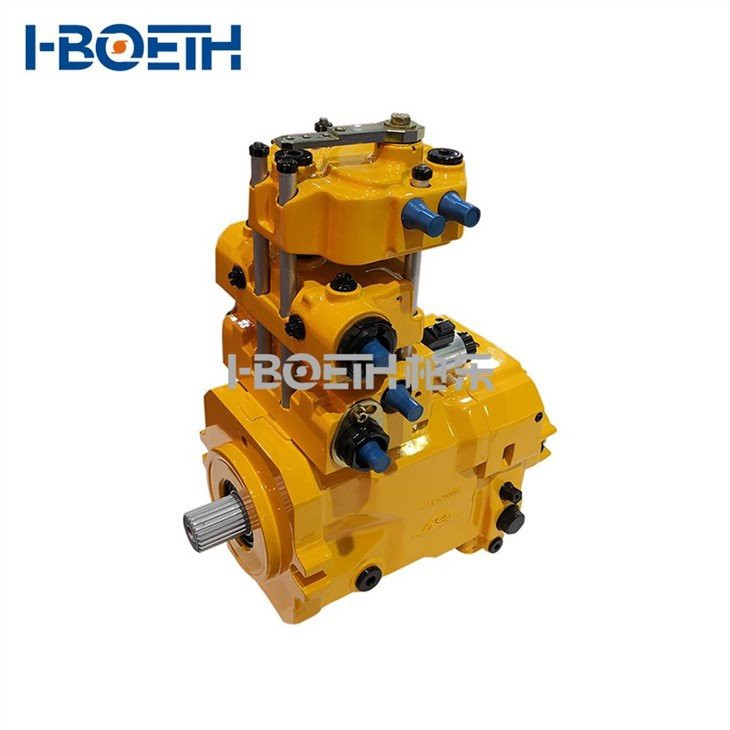

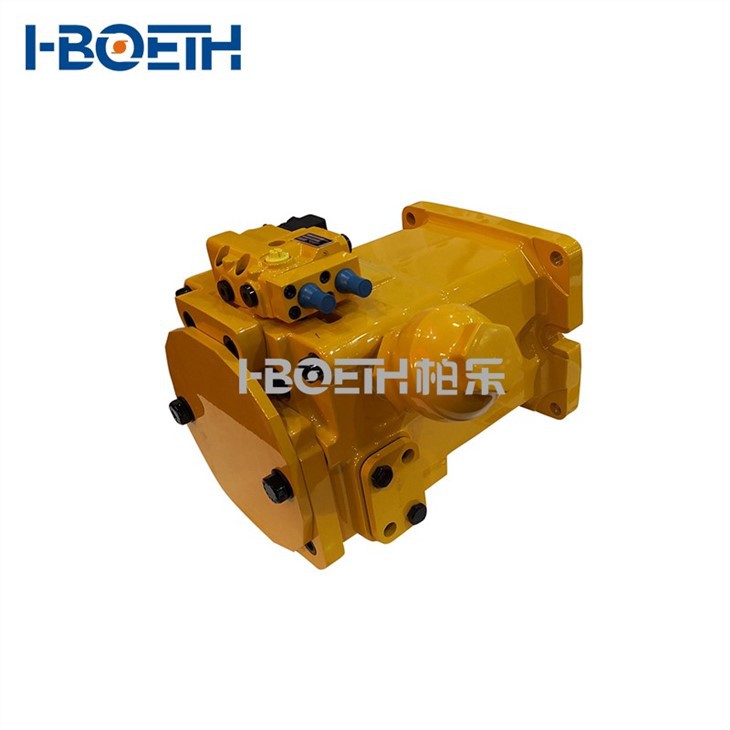

LINDE Hydraulic Pump HPV-02 HHPR-02-16

>> axial piston pump in swashplate design for high pressure closed loop systems
>> clockwise or counter clockwise rotation
>> exact and rugged servo control devices (mechanical, hydraulic, electro-hydraulic)
>> integrated high pressure relief valves with make-up function

Send Inquiry

Description

LINDE Hydraulic Pump HPV-02 hHPR-02-16

Design characteristics

>> axial piston pump in swashplate design for high pressure closed loop systems

>> clockwise or counter clockwise rotation

>> exact and rugged servo control devices (mechanical, hydraulic, electro-hydraulic)

>> integrated high pressure relief valves with make-up function

>> integrated low pressure relief valves for boost, control and cooler circuits

>> replaceable cartridge filter

>> SAE high pressure ports

>> SAE mounting flange with ANSI or SAE spine shaft

>> through shaft SAE A, B, B-B, C, D and E

>> boost pressure pumps for internal and external suction, integrated cold start relief valve optional

>> hydrostatic bearings of the rotating group compensate for axial forces

>> optional tandem and multiple pump

The table shows the complete capacity range of the pumps, while the diagram below shows the recommended practical range for the different nominal sizes of the HPV-02 pump with control limit between 200 bar ∆pmin and 280 bar ∆pmax. It enables initial selection of the required nominal pump size.
