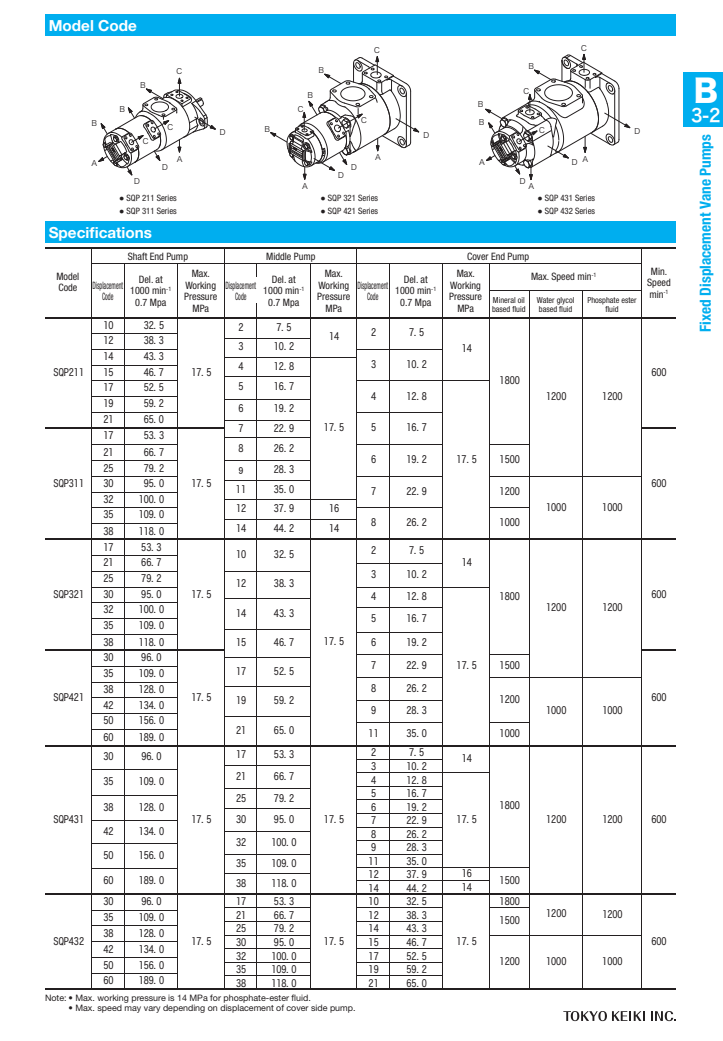

TOKYO KEIKI SQP Series Low Noise Triple Fixed Displacement Vane Pumps SQP211 SQP311 SQP321 SQP421 SQP431 SQP432

Shaft end delivery port position (viewed from cover end) A: opposite suction port B: 90º CCW from suction port C: inline with suction port D: 90º CW from suction port Middle pump delivery port position (viewed from cover end) SQP211, 311, 321, 421 A: 135º CCW from suction port B: 45º CCW from suction port C: 45º CW from suction port D: 135º CW from suction port SQP431, 432 A: opposite suction port B: 90º CCW from suction port C: inline with suction port D: 90º CW from suction port Cover end delivery port position (viewed from cover end) SQP211, 311, 431, 432 A: 135º CCW from suction port B: 45º CCW from suction port C: 45º CW from suction port D: 135º CW from suction port SQP321, 421 A: opposite suction port B: 90º CCW from suction port C: inline with suction port D: 90º CW from suction port.
