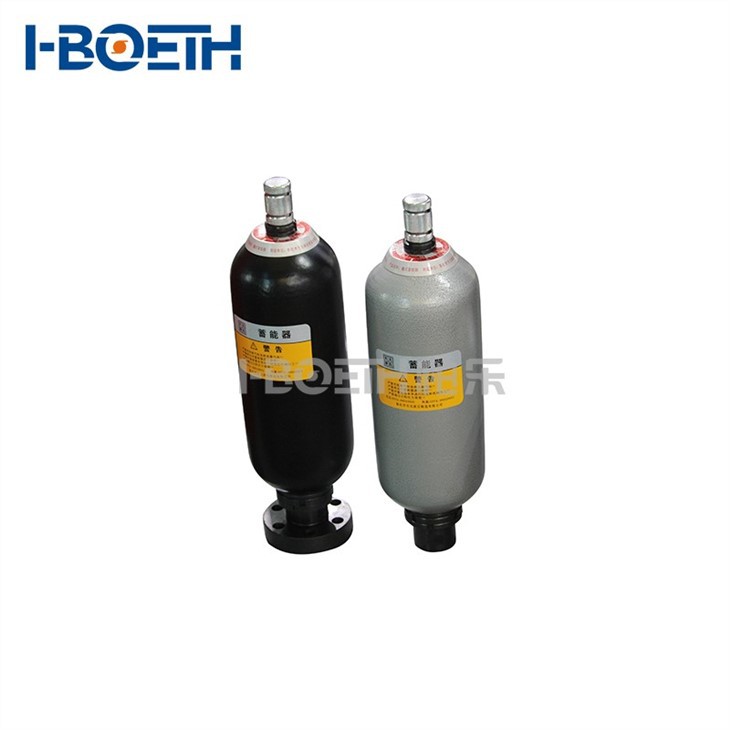

NXQ Series Hydraulic Bladder Accumulator

NXQ Series Hydraulic Bladder Accumulator

Name: NXQ Series Hydraulic Bladder Accumulator
Brand: HBOETH
SKU: 193984760

Bladder accumulators consist of a welded or forged pressure vessel, the bladder and the fittings for the gas- and media-side connection.
For special designs or particular applications are possible, for example for very high discharge speeds and high pressures, please contact us directly to learn more.

Send Inquiry

Description

HBOETH BOLE HYDRAULIC China Bladder Accumulator

Bladder Accumulators

Bladder accumulators consist of a welded or forged pressure vessel, the bladder and the fittings for the gas- and media-side connection.

For special designs or particular applications are possible, for example for very high discharge speeds and high pressures, please contact us directly to learn more.

Highlem offers accumulators including chinese GB standard, ASME code, PED directive, special hydraulic accumulators, highpressure acc. etc, to be have advantages in the worldwide fields.

Specifications:

Working temp.:－20℃～150℃

Nominal volume: 0.04 ~16.5 gal stantard accumulators, or 2.5~16.5 gal large flows, for ASME code; 0.6L ~ 54L standard accumulators for PED; 0.4 ~ 200L with 10 ~35MPa for chinese GB.

Permissible operating pressure: up to 1,000 bar.

Compatible materials with media for the elastomer: NBR, EPDM, Viton, FKM (FPM), etc.

Accumulator shell materials: carbon steel, stainless steel, aluminium, composite materials and alloy steel, and flange or screw thread connections.

If your working temperature is higher than 130 ℃, or below -20℃, or required corrosion resistance, recommend to select Highlem's Metal bellow accumulators.

Sizes and dimensions

SIZE L	dimension (mm)											Thread	Flange	Weight (Kg)
SIZE L	ΦC	M	d	K	Φ1	Φ2	Φ3	n-Φ4	h	L2	L3	L	L'	G1	G2
10	219	M60×2	70	M80×2	55	125	160	6-Φ22	32	93	109	675	690	40	44
16												885	900	54	58
20												1010	1025	62	66
25												1185	1200	74	78
32												1425	1440	90	94
40												1705	1720	106	110
50												1935	1950	120	124
25	299	M72×2	80	M95×2	65	150	200	6-Φ26	40	114	124	770	780	84	91
40												1050	1060	115	122
50												1230	1240	135	142
63												1470	1480	160	167
80												1810	1820	198	205
100												2190	2200	240	247
125												2600	2610	275	282
63	351	M72×2	80	M95×2	65	150	200	6-Φ26	40	114	124	1155	1165	168	176
80												1380	1390	204	212
100												1645	1655	248	256
125												1975	1985	302	310
160												2435	2445	376	384
180												2685	2695	418	426
63	351	M85×2	95	4 1/2-12UN	82	170	220	6-Φ26	40	140	140	1180	1180	170	178
80												1405	1405	206	214
100												1670	1670	250	258
125												2000	2000	304	312
160												2460	2460	378	386
180												2710	2710	420	428

Note: L and G1 represent the total length and weight of the thread accumulator;
L 'and G2 represent the total length and weight of the flange accumulator.

SIZE L	dimension (mm)											Thread	Flange	(Kg) Weight
SIZE L	ΦC	M	d	K	Φ1	Φ2	Φ3	n-Φ4	h	L2	L3	L	L'	G1	G2
0.4	89	M27×2	31	/	/	/	/	/	/	/	/	260	/	3	/
0.63	89											315	/	3.5	/
1	114											330	/	5	/
1.6	152	M42×2	50	M60×2	38	97	130	6-Φ17	28	68	84	360	375	11	14
2.5												425	440	13	16
4												535	550	16	19
6.3												705	720	22	25
10	219	M60×2	70	M80×2	55	125	160	6-Φ22	32	93	109	680	695	38	42
16												890	905	52	56
20												1015	1030	60	64
25												1190	1205	72	76
32												1430	1445	87	91
40												1710	1725	104	108
50												1940	1955	118	122

Max. Flow Rate	Thread hydraulic port	Φ89, Φ114	0.4～1L	240L/min
		Φ152	1.6～6.3L	240L/min
		Φ219	10～50L	900L/min
		Φ299	40L～125L	1500L/min
		Φ351	63L～180L	2000L/min
	Flange hydraulic port	Φ152	1.6～6.3L	240L/min
		Φ219	10～50L	1200L/min
		Φ299	40L～125L	1800L/min
		Φ351	63L～180L	2400L/min

Ordering Note

Working Pressure is 31.5MPa, Nominal Volume 50L, Flange Connection, Media: Hydraulic emulsion, Shell outside diameter 219, Bladder Accumulator of Type AB, the code is NXQ-AB-50/31.5-F-R(219).
