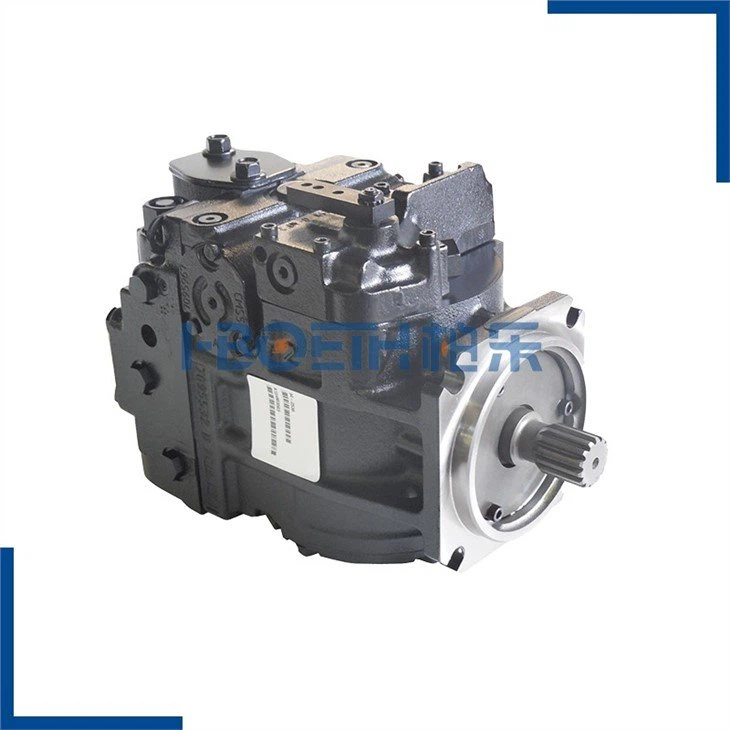

Sauer Danfoss 90M100 90M55 90M130 Hydraulic Motor

Series: Series 90 Axial Piston Motors
Brand: fucheng
Place of Origin: Jinan, China
Series 90 – advanced technology today

Send Inquiry

Description

Series: Series 90 Axial Piston Motors

Brand: fucheng

Place of Origin: Jinan, China

◇ Series 90 – advanced technology today

◇ Seven sizes of variable displacement pumps

◇ Five sizes of fixed displacement motors

◇ One variable displacement motor

◇ SAE and cartridge mount configurations

◇ Efficient axial piston design

◇ Proven reliability and performance

◇ Compact, lightweight

◇ Worldwide sales and service

		Dimension	Frame Size
		Dimension	030	042	055	075	100	130
Displacement	maximum	cm3 in3	30 1.83	42 2.56	55 3.35	75 4.57	100 6.10	130 7.93
Displacement	minimum (MV)	cm3 in3	- -	- -	19 1.16	26 1.59	- -	- -
Rated Speed *	at max. disp. at min. disp. (MV)	min-1 (rpm) min-1 (rpm)	4200 -	4200 -	3900 4600	3600 4250	3300 -	3100 -
Maximum Speed *	at max. disp. at min. disp. (MV)	min-1 (rpm) min-1 (rpm)	4600 -	4600 -	4250 5100	3950 4700	3650 -	3400 -
Max. Attainable Speed*	at max. disp.	min-1 (rpm)	5000	5000	4700	4300	4000	3700
Theoretical Torque	at max. disp.	Nm/bar lbf•in/1000 psi	0,48 290	0,67 410	0,88 530	1,19 730	1,59 970	2,07 1260
Theoretical Torque	at min. disp. (MV)	Nm/bar lbf•in/1000 psi	- -	- -	0,88 530	1,19 730	- -	- -
Max. rated flow at max. disp.	Q max.	l / min gal / min	138 36	193 51	234 62	296 78	365 96	442 117
Max. corner power at max. disp.	p corner max.	kW hp	110 149	155 208	187 251	237 318	292 392	354 475
Mass moment of inertia of the int. rotating parts	J	kg m2 lb • ft2	0,0023 0.0546	0,0039 0.0926	0,0060 0.1424	0,0096 0.2280	0,0150 0.3560	0,023 0.5460
Weight Fixed Motor (MF)	SAE Flange	kg lb	11 24	15 34	22 49	26 57	34 74	45 99
Weight Fixed Motor (MF)	Cartridge	kg lb	- -	21 46	26 57	33 72	- -	- -
Weight Variable Motor (MV)	SAE Flange	kg lb	- -	- -	39 86	44 98	- -	- -
Weight Variable Motor (MV)	Cartridge	kg lb	- -	- -	40 88	46 101	- -	- -
