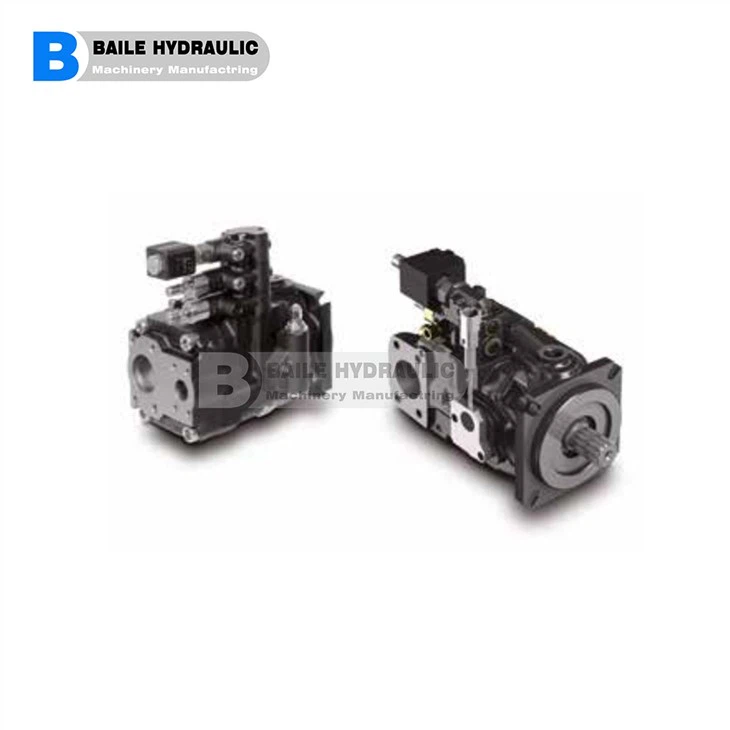

CASAPPA MVP And MVPD Series Variable Displacement Axial Piston Pumps MVP 30.28 MVP 30.34 MVP 48.45 MVP 48.53 MVP 60.60 MVP 60.72 MVP 60.84 MVPD MVPD 30.34 MVPD 30.45 MVPD 48.60 MVPD 48.65

MVP and MVPD series Variable displacement axial piston pumps swash plate design ideally suited for open circuit in mobile hydraulic applications. The compact design allows to be mounted directly on engine motors. The new “MVPD” series allow higher flow rates than traditional pumps with same dimensions, higher machine speeds without affecting the design of the hydraulic system and a high power-to-dimensions ratio. Displacements from 14 cm3/rev G 0.85 in3/rev to 84,7 cm3/rev G 5.17 in3/rev. Max. peak pressure up to 350 bar G 5100 psi. Max. speed up to 3700 min‑1.Features MVPD 48.65 65,00 G 3.97 230 G 3350 2800 Exceptional working life expectancy Low noise emission Drive shaft bearing suitable for radial and axial loads Multiple combinations Short response time MVPD additional features Higher speed Higher power-to-weight ratio Cost-optimized design Controls Min. and max. displacement limiter Pressure compensator Flow and pressure compensator (Load‑Sensing) Torque limiter Electronic controls
