CASAPPA GEAR PUMPS APL SERIES APL61 APL82 APL100 APL125

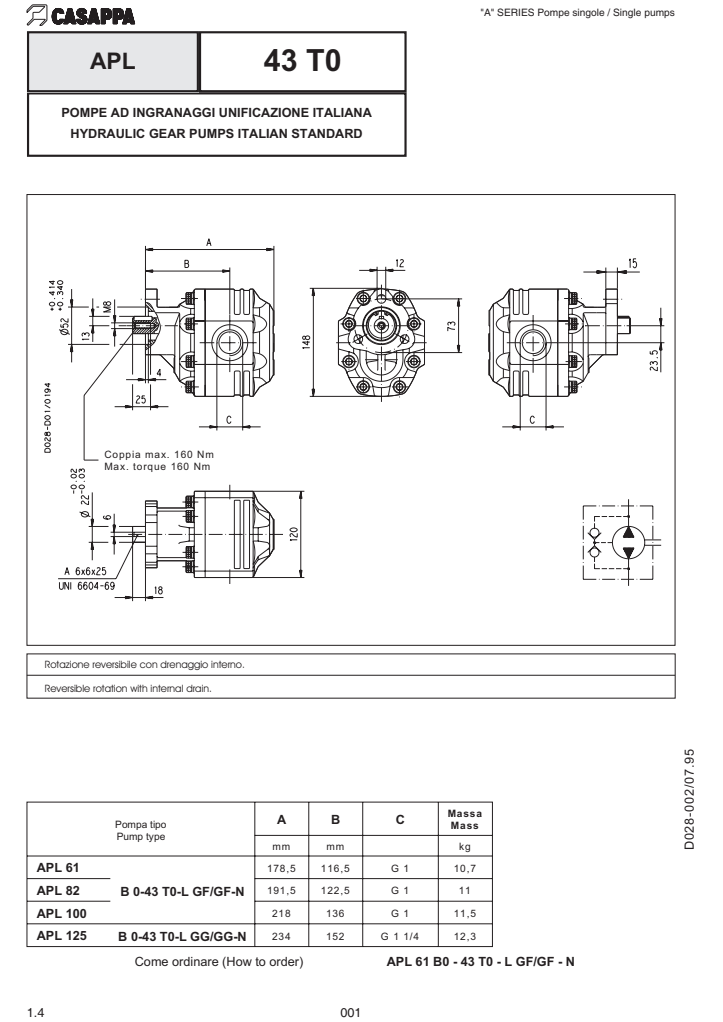

The gear pumps APL SERIES presented in this catalogue are in cast iron construction with balanced thrust plates and have a particularly high flow capacity in relation to phisical size and weight. They have been succesfully developed to attain high performance characteristics at both normal and low speed. For these reasons they have wide application in agricultural and mobile machinery. Construction External gear type pumps Mounting Triangular (Italian) flange Line connections Screw Direction of rotation (looking on drive shaft) Reversible (B) internal drain Inlet pressure range for pumps 0,7 ÷ 3 bar (abs.) Fluid temperature range From -15 to +80 °C APL 61 B0 - 43 T0 - L GF/GF - N APL 125 B 0-43 T0-L GG/GG-N APL 82 B0 - 43 T0 - L GF/GF - N APL100 B0 - 43 T0 - L GF/GF - N APL 61 B0 - 19 T1 - L GF/GF - N APL 82 B0 - 19 T1 - L GF/GF - N APL 100 B0 - 19 T1 - L GF/GF - N APL 125 B0 - 19 T1 - L GF/GF - N APL 61 B0 - 13 T1 - L GF/GF - N APL 82 B0 - 13 T1 - L GF/GF - N
