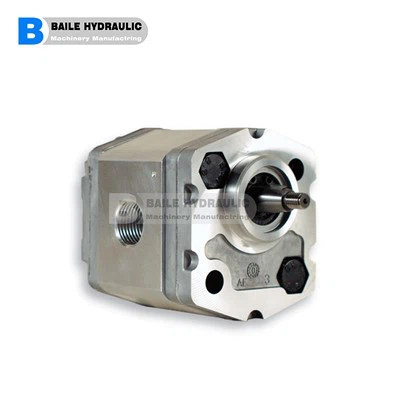

Hydraulic Gear Pump GHP1

PA-GHP1 gear pumps are a series of single aluminum hydraulic pumps that offer high-performance. Available in SAE A, SAE AA, or SAE B in single rotation or reversible. For use in industrial and mobile applications..

Send Inquiry

Description

TYPE	Displacement	FLOW at 1500r/ min	MAX PRESSURE			MAX SPEED
TYPE	Displacement	FLOW at 1500r/ min	P1	P2	P3	MAX SPEED
	cm³/rev	litri/min	bar	bar	bar	rpm
GHP1-D(S)-3	2.1	2.9	270	290	310	6000
GHP1-D(S)-4	2.8	3.9	270	290	310	5000
GHP1-D(S)-5	3.5	4.9	270	290	310	5000
GHP1-D(S)-6	4.1	5.9	270	290	310	4000
GHP1-D(S)-7	5.2	7.4	260	275	290	3500
GHP1-D(S)-9	6.2	8.8	260	275	290	3000
GHP1-D(S)-11	7.6	10.8	230	245	260	3500
GHP1-D(S)-13	9.3	13.3	210	225	240	3000
GHP1-D(S)-16	11	15.7	200	215	230	2500
GHP1-D(S)-20	13.8	19.7	180	195	210	2000
GHP1A-D(S)-2	1.4	2	270	290	310	6000
GHP1A-D(S)-3	2.1	2.9	270	290	310	6000
GHP1A-D(S)-4	2.8	3.9	270	290	310	5000
GHP1A-D(S)-5	3.5	4.9	270	290	310	5000
GHP1A-D(S)-6	4.1	5.9	270	290	310	4000
GHP1A-D(S)-7	5.2	7.4	260	275	290	3500
GHP1A-D(S)-9	6.2	8.8	260	275	290	3000
GHP1A-D(S)-11	7.6	10.8	230	245	260	3500
GHP1A-D(S)-13	9.3	13.3	210	225	240	3000
GHP1A-D(S)-16	11	15.7	200	215	230	2500
GHP1A-D(S)-20	13.8	19.7	180	195	210	2000

GHP1-D-2

GHP1-D-3

GHP1-D-4

GHP1-D-5

GHP1-D-6

GHP1-D-7

GHP1-D-9

GHP1-D-11

GHP1-D-13

GHP1-D-16

GHP1-D-20

GHP1-S-2

GHP1-S-3

GHP1-S-4

GHP1-S-5

GHP1-S-6

GHP1-S-7

GHP1-S-9

GHP1-S-11

GHP1-S-13

GHP1-S-16

GHP1-S-20

GHP1-R-2

GHP1-R-3

GHP1-R-4

GHP1-R-5

GHP1-R-6

GHP1-R-7

GHP1-R-9

GHP1-R-11

GHP1-R-13

GHP1-R-16

GHP1-R-20

GHP1A-D-2

GHP1A-D-3

GHP1A-D-4

GHP1A-D-5

GHP1A-D-6

GHP1A-D-7

GHP1A-D-9

GHP1A-D-11

GHP1A-D-13

GHP1A-D-16

GHP1A-D-20

GHP1A-S-2

GHP1A-S-3

GHP1A-S-4

GHP1A-S-5

GHP1A-S-6

GHP1A-S-7

GHP1A-S-9

GHP1A-S-11

GHP1A-S-13

GHP1A-S-16

GHP1A-S-20

GHP1A-R-2

GHP1A-R-3

GHP1A-R-4

GHP1A-R-5

GHP1A-R-6

GHP1A-R-7

GHP1A-R-9

GHP1A-R-11

GHP1A-R-13

GHP1A-R-16

GHP1A-R-20

GHP1AQ-D-2

GHP1AQ-D-3

GHP1AQ-D-4

GHP1AQ-D-5

GHP1AQ-D-6

GHP1AQ-D-7

GHP1AQ-D-9

GHP1AQ-D-11

GHP1AQ-D-13

GHP1AQ-D-16

GHP1AQ-D-20

GHP1AQ-S-2

GHP1AQ-S-3

GHP1AQ-S-4

GHP1AQ-S-5

GHP1AQ-S-6

GHP1AQ-S-7

GHP1AQ-S-9

GHP1AQ-S-11

GHP1AQ-S-13

GHP1AQ-S-16

GHP1AQ-S-20

GHP1AQ-R-2

GHP1AQ-R-3

GHP1AQ-R-4

GHP1AQ-R-5

GHP1AQ-R-6

GHP1AQ-R-7

GHP1AQ-R-9

GHP1AQ-R-11

GHP1AQ-R-13

GHP1AQ-R-16

GHP1AQ-R-20

GHP1A2-D-2

GHP1A2-D-3

GHP1A2-D-4

GHP1A2-D-5

GHP1A2-D-6

GHP1A2-D-7

GHP1A2-D-9

GHP1A2-D-11

GHP1A2-D-13

GHP1A2-D-16

GHP1A2-D-20

GHP1A2-S-2

GHP1A2-S-3

GHP1A2-S-4

GHP1A2-S-5

GHP1A2-S-6

GHP1A2-S-7

GHP1A2-S-9

GHP1A2-S-11

GHP1A2-S-13

GHP1A2-S-16

GHP1A2-S-20

GHP1A2-R-2

GHP1A2-R-3

GHP1A2-R-4

GHP1A2-R-5

GHP1A2-R-6

GHP1A2-R-7

GHP1A2-R-9

GHP1A2-R-11

GHP1A2-R-13

GHP1A2-R-16

GHP1A2-R-20
