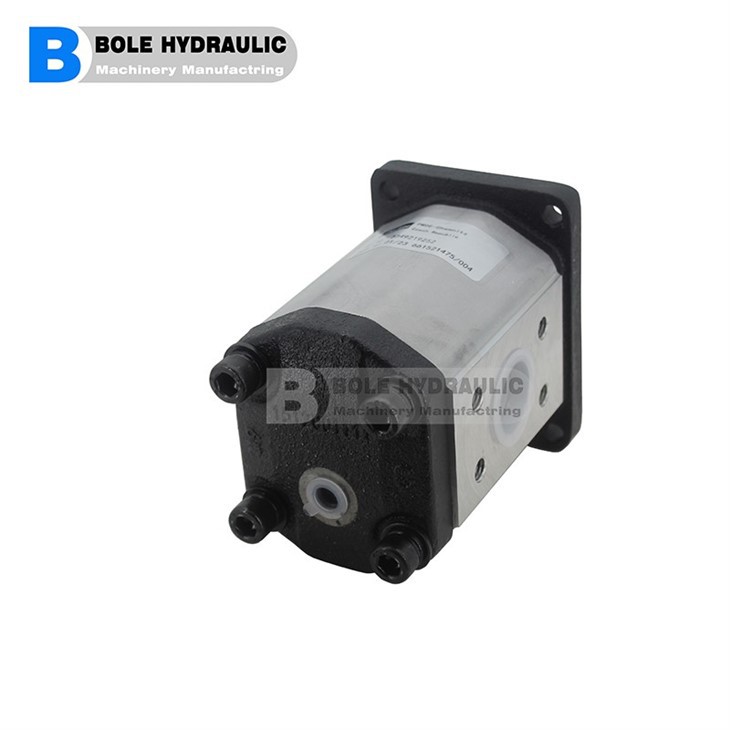

Ronzio Gear Pump Group 1
♦ High pressure option: up to 300 bar max. continuous pressure ( 4350 psi ) ♦ Axial compensation achieved using pressure balanced bushing blocks. ♦ High volumetric efficiency: average 95% ♦ Wide range of capacities : 0.8 -1.1-1.6-2.1-2.6-3.2-3.7-4.2-4.8-5.5 6.2-7.8-8.8 -10.5 cm3/rev ♦ Extruded aluminium body ♦ Gear tooth profile accurately projected providing low noise operation. ♦ A wide variety of shafts, flanges and ports are available to meet specific application requirements. ♦ High-temperature seals available. ♦ Single rotational pumps and motors. ♦ Bi-rotational pumps and motors. ♦ Multiple pumps availability: tandem
01ZA011C401TD,01ZA016C401TD,01ZA021C401TD,01ZA026C401TD,01ZA032C401TD
01ZA037C401TD,01ZA042C401TD,01ZA048C401TD,01ZA055C401TD,01ZA062C401TD
01ZA078C401TD,01ZA088C401TD,01ZAG37C401D,01ZAG62C442D
|
FLANGIA E COPERCHI IN GHISA / CAST IRON COVER AND FLANGE |
||||||||||||||||
|
Tipo Type |
08 |
11 |
16 |
21 |
26 |
32 |
37 |
42 |
48 |
55 |
62 |
78 |
88 |
105 |
||
|
Cilindrata Capacity |
Cm3 / giro Cm3 / rev |
0.80 |
1.08 |
1.59 |
2.09 |
2.59 |
3.15 |
3.68 |
4.19 |
4.79 |
5.49 |
6.2 |
7.81 |
8.82 |
10.5 |
|
|
P1 Pressione max continua Max working pressure |
Bar |
300 |
300 |
300 |
300 |
280 |
280 |
260 |
250 |
250 |
230 |
220 |
190 |
160 |
140 |
|
|
P2 Pressione intermittente Intermittent pressure |
Bar |
320 |
320 |
320 |
320 |
310 |
290 |
270 |
260 |
260 |
240 |
240 |
190 |
180 |
160 |
|
|
P3 Pressione max di picco Max peak pressure |
||||||||||||||||
|
Bar |
350 |
350 |
350 |
350 |
350 |
310 |
290 |
270 |
270 |
260 |
250 |
210 |
190 |
180 |
||
|
Velocità max per pressione P1 Max speed for P1 pressure |
Giri / min Rpm |
8000 |
8000 |
8000 |
7000 |
5500 |
4500 |
4500 |
4000 |
3600 |
3600 |
3500 |
3000 |
3000 |
3000 |
|
|
Velocità max a vuoto Max speed without load |
Giri / min Rpm |
8000 |
8000 |
8000 |
8000 |
8000 |
7000 |
6000 |
5500 |
5000 |
4500 |
4500 |
4000 |
4000 |
4000 |
|
|
Velocità min. per pressione P1 Min speed for P1 pressure |
Giri / min Rpm |
1100 |
1100 |
1000 |
900 |
800 |
700 |
600 |
500 |
400 |
400 |
400 |
400 |
400 |
400 |
|
