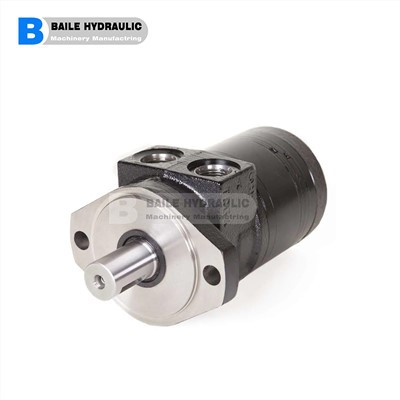

PARKER DENISON TF Series Low Speed High Torque Motors Fixed DisplacementTF0080 TF0100 TF0130 TF0140 TF0170 TF0195 TF0240 TF0280 TF0360 TF0405 TF0475

This rugged, weather resistant design is ideal for industrial and mobile applications. Applications include salt/sand/fertilizer spreader drives, conveyor drives and injection molder compression drives. The sensor is hall-effect type, which when externally powered outputs 30 square wave digital pulses per coupling shaft revolution. The connector is a user friendly universally available 4 pin polarized M12 connector allowing for simplified field service. The integrated design does not effect the side load capacity or performance of the torque motor. TF Series Technical Information： A tough motor for tough applications Sturdy construction throughout makes Parker's TF Series motors suitable for the most severe applications. The powertrain uses patented 60:40 spline geometry for strength. All splines are constantly flushed with cool fluid for durability. Roller vanes and sealed commutation assure high volumetric efficiency, smooth low speed operation and extended life. Displacements (4.9 - 29.1 in3/rev) 81...477 cm3/rev Maximum Speed (749 rpm) 749 rpm Maximum Torque Cont (6027 lb in) 681 Nm Int (8106 lb in) 916 Nm
