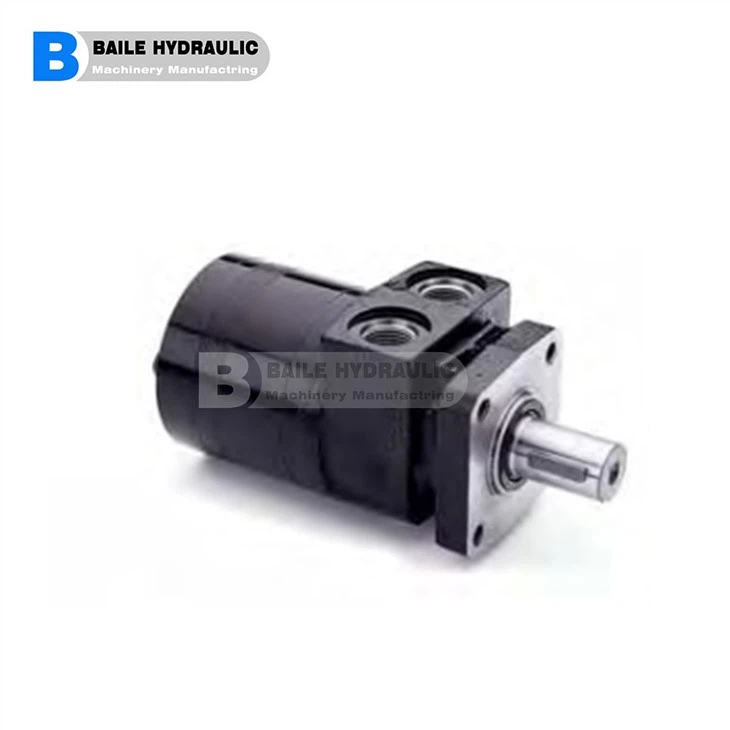

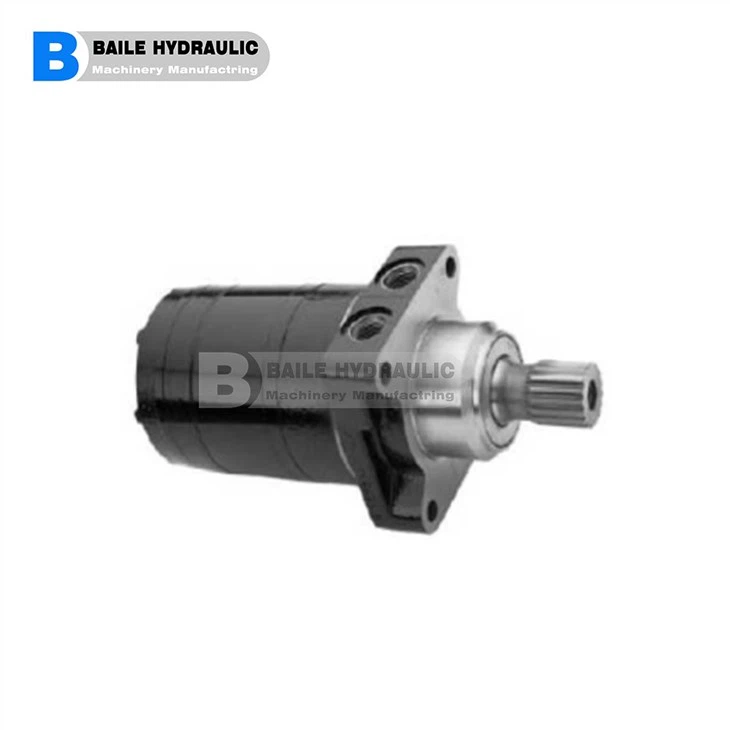

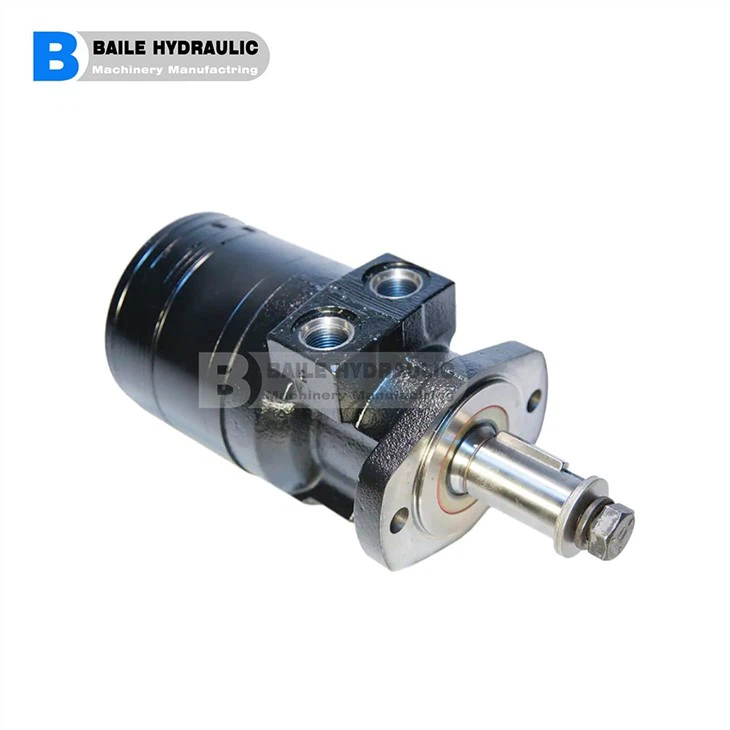

PARKER DENISON TG Series Low Speed High Torque Motors Fixed Displacement TG0140 TG0170 TG0195 TG0240 TG0280 TG0310 TG0335 TG0405 TG0475 TG0530 TG0625 TG0785 TG0960

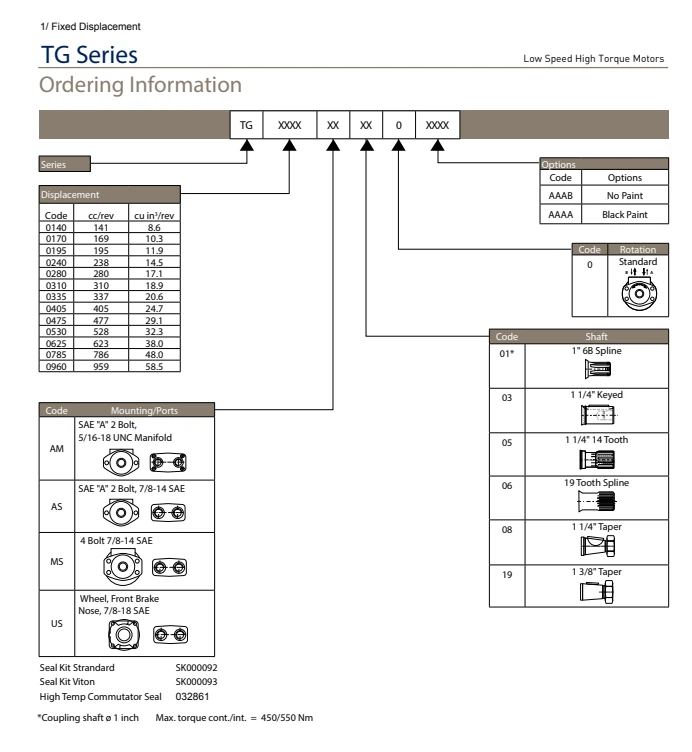

TG Series Technical Information: Exceptional strength and durability in a high performance motor The heart of Parker's TG Series powertrain, the Torqlink, is an extra heavy duty part includes patented 60:40 spline geometry. Rugged construction throughout allows the transmission of over 13,000 lb-in of torque. The entire powertrain is continually washed in cool, high flow fluid to assure long life. Roller vanes and sealed commutator maintain high efficiency and provide smooth low speed performance. 13 Displacements (8.6 - 58.5 in3/rev) 141...959 cm3/rev Maximum Oil Flow (to 30 gpm) ...114 lpm Maximum Speed (660 rpm) 660 rpm Mounting/Ports:SAE "A" 2 Bolt, 5/16-18 UNC Manifold SAE "A" 2 Bolt, 7/8-14 SAE  4 Bolt 7/8-14 SAE Wheel, Front Brake Nose, 7/8-18 SAE
