PARKER DENISON TH Series Low Speed High Torque Motors Fixed Displacement TH0140 TH0170 TH0195 TH0240 TH0280 TH0310 TH0335 TH0405 TH0475 TH0530 TH0625 TH0785 TH0960

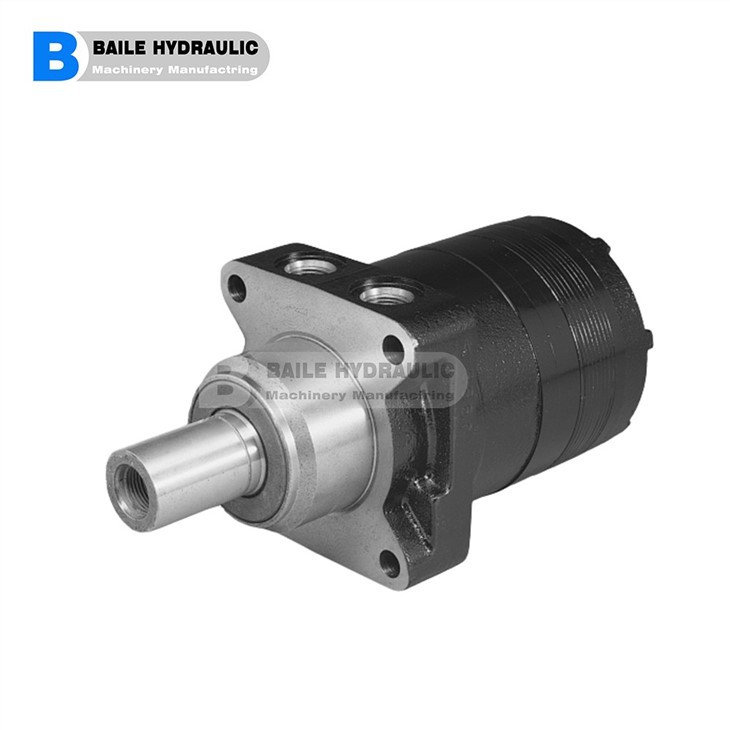

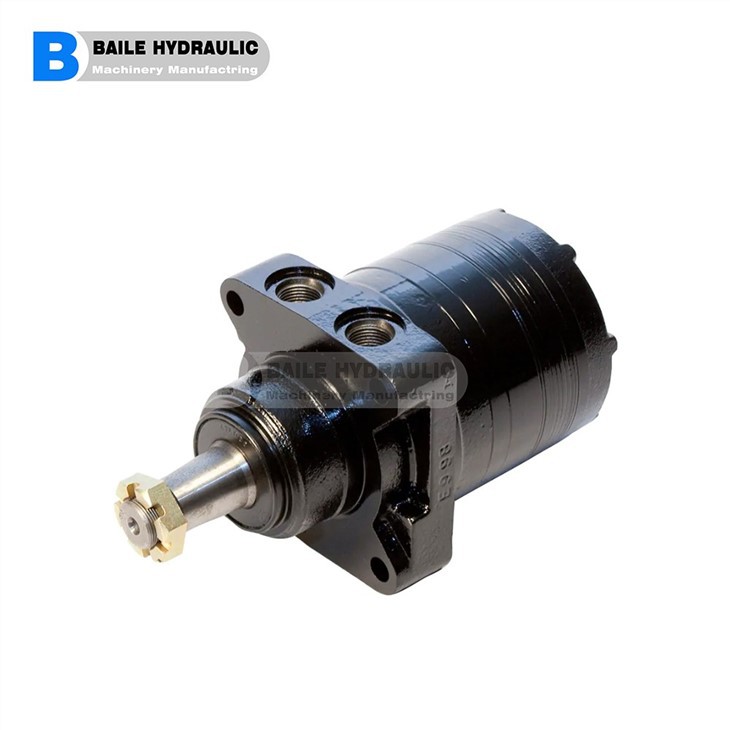

TH Series Technical Information A Rugged Motor for Heavy Duty, High Side Load Applications This motor was designed for tough applications. A stout drive link with unique 60:40 spline geometry will transmit over 13,000 lb-in of torque. The 1-1/2" output shaft can support 7000 pounds of radial load. Efficiency is assured by the use of roller vanes and seal commutator. Durability is maintained by continually washing the power splines and shaft seal in cooling fluid. Mounting/Ports:SAE "B" 4 Bolt, 7/8-14 SAE 4 Bolt 7/8-14 SAE Wheel, Front Brake Nose, 7/8-18 SAE SHAFT:1 1/2" J501 Taper 1 1/2" Keyed 1 1/2" 17 Tooth Speed Sensor An Economical sensor for speed readout This rugged, weather resistant design is ideal for industrial and mobile applications. Applications include salt/ sand/ fertiliser spreader drives, conveyor and injection molder compression drives. The sensor is a hall effect type which when externally powered outputs 30 square wave digital pulses per coupling shaft revolution. The connector is a user friendly universally available 4 pin polarised M12 connector allowing for simplified field service. The integrated design does not effect the side load capacity or performance of the torque motor.
