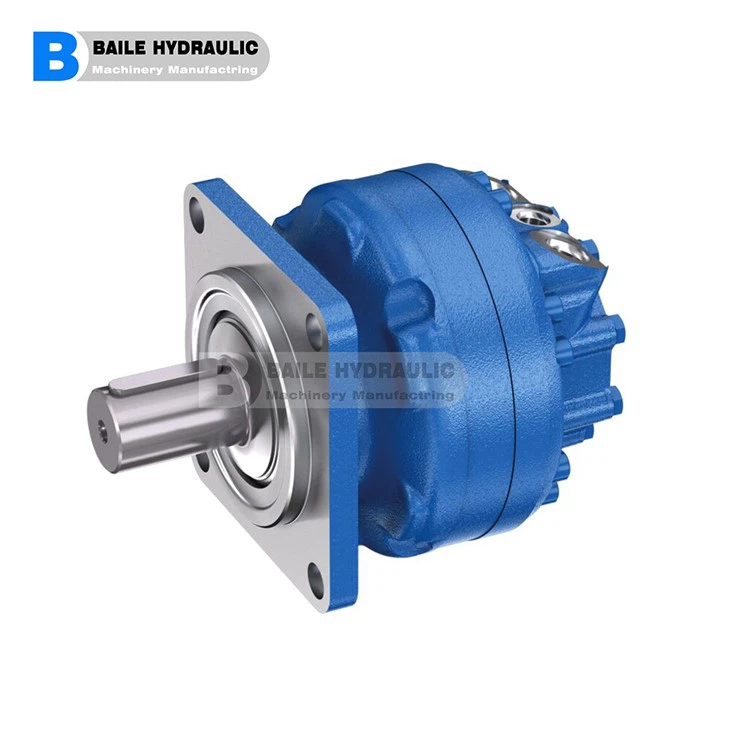

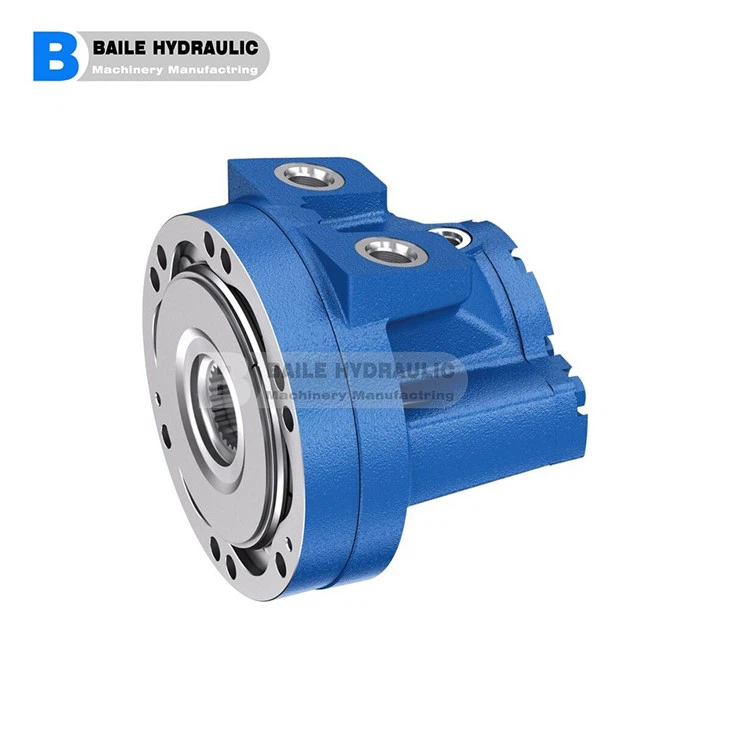

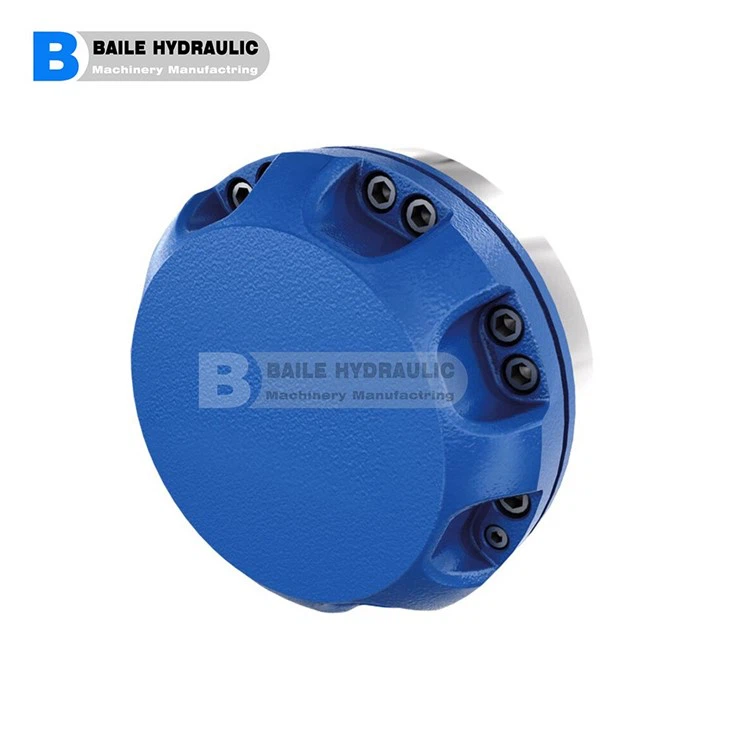

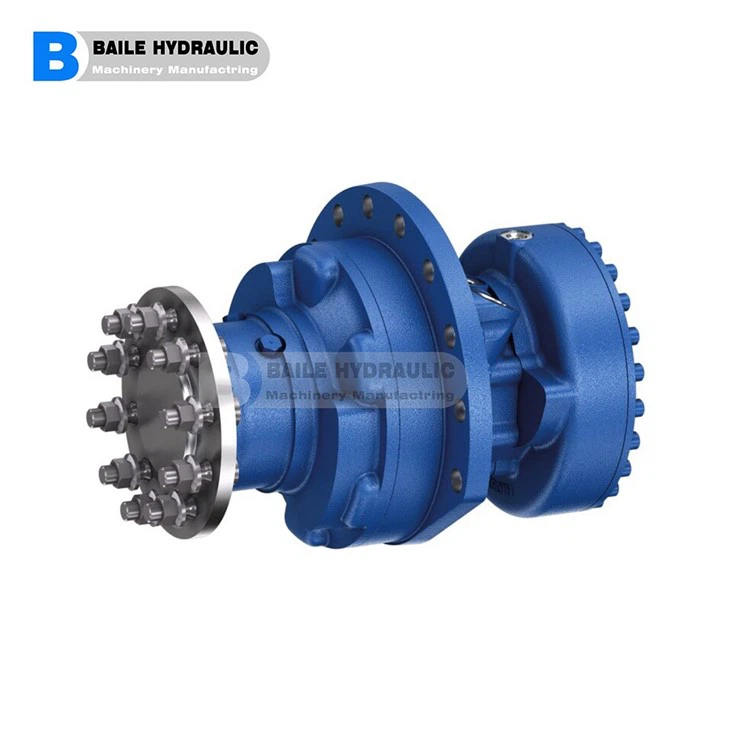

REXROTH Radial Piston Motor (Multi-Stroke) MCR10 MCR10D780 MCR10D860 MCR10D940 MCR10D1120 MCR10D1250 MCR10D1340

Series 3X Size MCR10D780 MCR10D860 MCR10D940 MCR10D1120 MCR10D1250 MCR10D1340 MCR10F780 MCR10F860 MCR10F940 MCR10F1120 MCR10F1250 MCR10F1340 MCR10H780 MCR10H860 MCR10H940 MCR10H1120 MCR10H1250 MCR10H1340 Differential pressure up to 450 bar Torque output up to 8000 Nm Speed up to 215 rpm Open and closed circuits. Features – Compact robust construction – High volumetric and mechanical efficiencies – High pressure rating – High reliability – Low maintenance – Smooth running at very low speeds Low noise – Reversible – – Sealed tapered roller bearings – High radial forces permitted on drive shaft – Freewheeling possible – Available with optional holding brake (multi-disc) or dynamic (drum) brake – Available with: - Bi-directional two speed - Integrated flushing valve - Speed sensor Housing Type: Front case flanged, SAE 4 metric holes D Rear case flanged F Hydrobase (half motor) H
