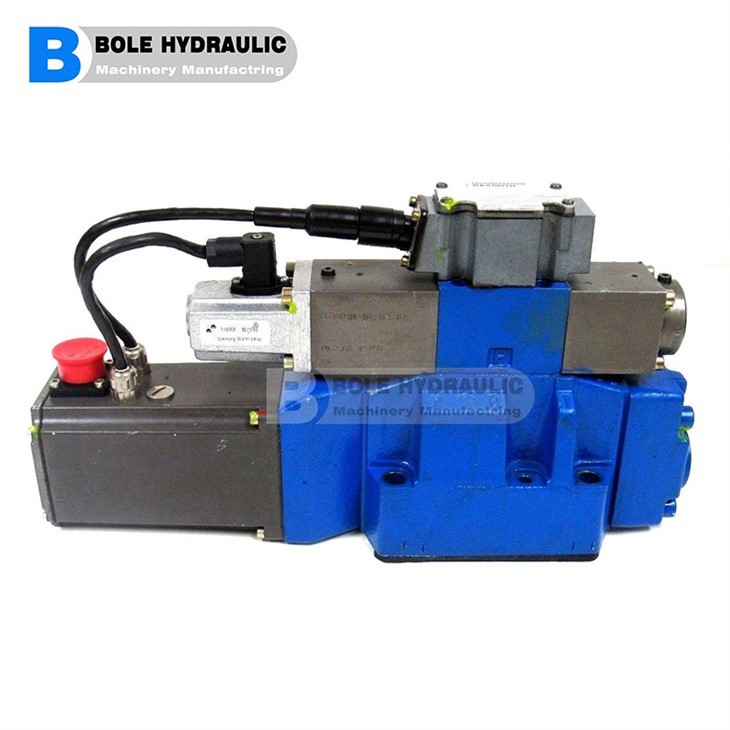

R900931047 4WEH16L72/6EW230N9ETK4/B12 Rexroth 4WEH16L Directional Spool Valve
R900923888 4WEH16L7X/6AG24NETK4 R900923873 4WEH16L7X/6AG24NK4/11V R901184955 4WEH16L7X/6EG125N9ETK4/B10 R900933265 4WEH16L7X/6EG125N9ETS2K4 R901017946 4WEH16L7X/6EG205N9K4/B10 R901291706 4WEH16L7X/6EG24ETK4/B10 R978914235 4WEH16L7X/6EG24N9EDA R900930859 4WEH16L7X/6EG24N9EK4 R900934317 4WEH16L7X/6EG24N9EK4/10 R901170879 4WEH16L7X/6EG24N9EK4/10B08 R900246868 4WEH16L7X/6EG24N9EK4/B08 R901150485 4WEH16L7X/6EG24N9EK4/B08P4,5 R901332248 4WEH16L7X/6EG24N9EK4/B10 R901119793 4WEH16L7X/6EG24N9EK4/B10D3 R901355639 4WEH16L7X/6EG24N9EK4/B15 R901159670 4WEH16L7X/6EG24N9ES2DL/10B10 R987144193 4WEH16L7X/6EG24N9ES2K4 R978020880 4WEH16L7X/6EG24N9ES2K4 R900617871 4WEH16L7X/6EG24N9ES2K4/10B08 R900954345 4WEH16L7X/6EG24N9ES2K4/10B10 R900755284 4WEH16L7X/6EG24N9ES2K4/B08 R900941793 4WEH16L7X/6EG24N9ES2K4/B10 R901118928 4WEH16L7X/6EG24N9ES2K4/B10D3 R901320870 4WEH16L7X/6EG24N9ES2K4/B10V R901133280 4WEH16L7X/6EG24N9ES2K4/B15 R901018996 4WEH16L7X/6EG24N9ESDJL/B10 R900755801 4WEH16L7X/6EG24N9ESDJL1/B10 R900948690 4WEH16L7X/6EG24N9ESK4/10B10 R978006697 4WEH16L7X/6EG24N9ETDAL R900924643 4WEH16L7X/6EG24N9ETK4 R900961508 4WEH16L7X/6EG24N9ETK4/10B10 R901305826 4WEH16L7X/6EG24N9ETK4/12B10 R900711896 4WEH16L7X/6EG24N9ETK4/B08 R900952631 4WEH16L7X/6EG24N9ETK4/B10 R900759798 4WEH16L7X/6EG24N9ETK4/B10D3 R900758815 4WEH16L7X/6EG24N9ETK4/B10P4,5 R900744334 4WEH16L7X/6EG24N9ETK4/B10V R901364813 4WEH16L7X/6EG24N9ETK4/B12 R900748284 4WEH16L7X/6EG24N9ETS2DJL/B10 R900713835 4WEH16L7X/6EG24N9ETS2K4/B08 R900712203 4WEH16L7X/6EG24N9ETS2K4/B10 R901088780 4WEH16L7X/6EG24N9ETS2K4/B10P4,5 R900934944 4WEH16L7X/6EG24N9ETSK4 R901397287 4WEH16L7X/6EG24N9ETSK4/B10 R901034404 4WEH16L7X/6EG24N9ETSK4/B10P4,5 R900977794 4WEH16L7X/6EG24N9ETSK4/B10V R900927835 4WEH16L7X/6EG24N9K4 R987013149 4WEH16L7X/6EG24N9K4/B08 R900965805 4WEH16L7X/6EG24N9K4/B10 R978917507 4WEH16L7X/6EG24N9K4/V R901025836 4WEH16L7X/6EG24N9S2DL/B10 R900955915 4WEH16L7X/6EG24N9S2K4 R901170882 4WEH16L7X/6EG24N9S2K4/B10D3 R901548809 4WEH16L7X/6EG24N9S2K4/B15 R901020097 4WEH16L7X/6EG24N9TDJL R900926210 4WEH16L7X/6EG24N9TK4 R900965575 4WEH16L7X/6EG24N9TK4/B08 R901395041 4WEH16L7X/6EG24N9TK4/B10P4,5 R978910724 4WEH16L7X/6EG24N9TK4/V R901005178 4WEH16L7X/6EG24N9TS2K4 R900934457 4WEH16L7X/6EG24NES2DL/10 R901249226 4WEH16L7X/6EG24NES2DL/10B10 R901132104 4WEH16L7X/6EG24NES2DL/B10 R901216194 4WEH16L7X/6EG24NES2K4/10B10 R901137929 4WEH16L7X/6EG24NETDL/B10 R901146816 4WEH16L7X/6EG24NETK4/B10 R901199040 4WEH16L7X/6EG24NTK4/B10D3 R901312005 4WEH16L7X/6EG48N9K4 R901236174 4WEH16L7X/6EG96N9EK4/10B10 R900760281 4WEH16L7X/6EW100N9DJL R901016191 4WEH16L7X/6EW100N9ETDJL/B10 R900759009 4WEH16L7X/6EW100N9ETDJL1/B10 R900740265 4WEH16L7X/6EW100N9ETK4 R900767226 4WEH16L7X/6EW100N9ETS2DJL/B10 R901007106 4WEH16L7X/6EW100N9TS2DJL R901420886 4WEH16L7X/6EW100N9TSDJL R901008632 4WEH16L7X/6EW100RN9ETSDJL1/B10 R978908123 4WEH16L7X/6EW110N9DA R978901394 4WEH16L7X/6EW110N9DK25 R978908604 4WEH16L7X/6EW110N9EDAL R901299483 4WEH16L7X/6EW110N9EDAL/B10 R900940973 4WEH16L7X/6EW110N9EK4 R901251786 4WEH16L7X/6EW110N9EK4/B08D3 R901278720 4WEH16L7X/6EW110N9EK4/B10 R900928743 4WEH16L7X/6EW110N9ES2K4 R901271354 4WEH16L7X/6EW110N9ES2K4/B10 R978914619 4WEH16L7X/6EW110N9ESK4 R978918055 4WEH16L7X/6EW110N9ETDAL R900938904 4WEH16L7X/6EW110N9ETK4 R900965808 4WEH16L7X/6EW110N9ETK4/B10 R900933555 4WEH16L7X/6EW110N9ETK4/V R978917094 4WEH16L7X/6EW110N9ETS2K4 R901545659 4WEH16L7X/6EW110N9ETS2K4/B10 R978005041 4WEH16L7X/6EW110N9ETS2K4/V R901171053 4WEH16L7X/6EW110N9ETSDJL1/B10 R900927337 4WEH16L7X/6EW110N9K4 R983031301 4WEH16L7X/6EW110N9K4IN010 R978909706 4WEH16L7X/6EW110N9TK4 R901027089 4WEH16L7X/6EW110N9TK4 R901285097 4WEH16L7X/6EW110N9TK4/B10 R900777388 4WEH16L7X/6EW110N9TS2K4 R978914608 4WEH16L7X/6EW110N9TS2K4/P4,5 R901292698 4WEH16L7X/6EW110RN5S2DJL R901290983 4WEH16L7X/6EW110RN5S2DL R901312920 4WEH16L7X/6EW110RN9ETSDJL/B10 R901213878 4WEH16L7X/6EW200N9DJL R901185049 4WEH16L7X/6EW200N9ESDJL1/B10 R901358286 4WEH16L7X/6EW200N9ETS2DJL/B10 R900740266 4WEH16L7X/6EW200N9ETSDJL1 R901250771 4WEH16L7X/6EW200N9S2DJL R900962925 4WEH16L7X/6EW230N9EK4 R900962975 4WEH16L7X/6EW230N9ES2K4/B10 R901222364 4WEH16L7X/6EW230N9ESDL/B10 R900924823 4WEH16L7X/6EW230N9ETK4 R901265945 4WEH16L7X/6EW230N9ETK4/B10 R900702115 4WEH16L7X/6EW230N9ETK4/B10D3 R901372843 4WEH16L7X/6EW230N9ETK4/B10P4,5 R900931047 4WEH16L7X/6EW230N9ETK4/B12 R900932643 4WEH16L7X/6EW230N9ETK4/P4,5 R987009599 4WEH16L7X/6EW230N9ETS2K4 R900933560 4WEH16L7X/6EW230N9ETS2K4/B08 R900948292 4WEH16L7X/6EW230N9ETS2K4/B10 R978033379 4WEH16L7X/6EW230N9ETS2K4/P4,5 R901046421 4WEH16L7X/6EW230N9ETSDL/B10 R900970575 4WEH16L7X/6EW230N9K4 R901142768 4WEH16L7X/6EW230N9K4/B10 R901203053 4WEH16L7X/6EW230N9TS2DJL R900970154 4WEH16L7X/6EW230NSK4 R901127537 4WEH16L7X/6HG24N9EK4 R901108854 4WEH16L7X/6HG24N9EK4/B10 R901108848 4WEH16L7X/6HG24N9ETK4 R901108814 4WEH16L7X/6HG24N9ETK4/B10 R901108861 4WEH16L7X/6HG24N9K4 R901480134 4WEH16L7X/6HG24N9K4-910 R900769777 4WEH16L7X/6SG24N9EK4/B10 R900734111 4WEH16L7X/6SG24N9ETK4 R900784499 4WEH16L7X/6SG24N9ETK4/B10 R901025267 4WEH16L7X/6SG24N9K4 R900923835 4WEH16L7X/U R900945176 4WEH16L7X/UET R900939637 4WEH16L7X=6EG24N9ETK4/B10=KM R900925115 4WEH16L7X=6EG24N9ETK4=KM R901367285 4WEH16L7X=6EG24N9K4 R901132239 H-4WEH16L7X/6EG110N9TS2DJL R901046769 H-4WEH16L7X/6EG24N9EK4/B10D3 R901077622 H-4WEH16L7X/6EG24N9EK4/B10D3ZV R900977630 H-4WEH16L7X/6EG24N9ES2K4/B10D3 R900956812 H-4WEH16L7X/6EG24N9ETK4/B10D3 R901282894 H-4WEH16L7X/6EG24N9ETK4/B10D3V R901168115 H-4WEH16L7X/6EG24N9ETS2DJL/B10D3 R901364228 H-4WEH16L7X/6EG24N9ETSK4/B10D3 R900939919 H-4WEH16L7X/6EG24N9K4 R901077620 H-4WEH16L7X/6EG24N9K4/Z R900784082 H-4WEH16L7X/6EG24N9S2K4 R900729122 H-4WEH16L7X/6EG24N9S2K4/B10D3 R901147679 H-4WEH16L7X/6EG24N9TK4/B10D3 R900943539 H-4WEH16L7X/6EG24N9TSK4 R978022979 H-4WEH16L7X/6EG24NTK4 R900755785 H-4WEH16L7X/6EW100N9ETDJL/B10D3 R901066610 H-4WEH16L7X/6EW100N9ETK4/B10D3 R901080306 H-4WEH16L7X/6EW100N9TS2DJL/B10D3 R900750722 H-4WEH16L7X/6EW100N9TS2K4/B10D3 R901250338 H-4WEH16L7X/6EW110N9EK4/B08D3 R900926338 H-4WEH16L7X/6EW110N9K4 R901095051 H-4WEH16L7X/6EW110N9TS2DJL/B10D3 R900771791 H-4WEH16L7X/6EW110N9TS2K4/B10D3 R901412144 H-4WEH16L7X/6EW200N9S2K4 R901180421 H-4WEH16L7X/6EW230N9K4 R900924008 H-4WEH16L7X/U
Features:
Types of actuation (internal or external pilot control): Electro-hydraulic (type WEH)
For subplate mounting
Porting pattern according toISO 4401
4/3-, 4/2- or 3/2-way version
Spring or pressure centering, spring end position or hydraulic end position
Wet-pin DC or AC solenoids, optional
Electrical connection as individual or central connection
Optional versions:
- Manual override
- Switching time adjustment
- Preload valve in channel P of the main valve
- Stroke setting and/or spool position monitoring
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | ||
| WEH | / | K4 | / | * |
| 01 | up to 280 bar | no code |
| 02 | 3-way version | 3 |
| 4-way version | 4 | |
| Types of actuation | ||
| 03 | electro-hydraulic | WEH |
| Size | ||
| 04 | NG10 | 10 |
| NG16 | 16 | |
| NG25 (version "WEH 22") | 22 | |
| NG25 (version "WEH 25") | 25 | |
| Size 32 | 32 | |
| Spool return in the main valve | ||
| 05 | by means of springs | no code |
|
hydraulic 1) |
H | |
| 06 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | |
| 07 | Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10 | 4X |
| Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("WEH 25") and NG32 | 6X | |
| Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("WEH 22") | 7X | |
| Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols C, D, K, Z and hydraulic control spool return in the main valve) | ||
| 08 | With spring return | no code |
| Without spring return | O | |
|
Without spring return with detent 2) |
OF | |
|
Pilot control valve 2) |
||
| 09 | High-power valve | 6E |
| 10 |
Direct voltage 24 V 2) |
G24 |
|
Alternating voltage 230 V, 50/60 Hz 2) |
W230 | |
| For other voltages, frequencies and electric data, see data sheet of high-power valve | ||
| 11 | Without manual override | no code |
| With manual override | N | |
| With concealed manual override | N9 | |
| Pilot oil flow | ||
| 12 |
External pilot oil supply, external pilot oil return 3) |
no code |
|
Internal pilot oil supply, external pilot oil return 3; 4) |
E | |
|
Pilot oil supply internal, pilot oil return internal 4) |
ET | |
|
External pilot oil supply, internal pilot oil return 3) |
T | |
| version "ET" and "T" with 3-spool position valve, pressure-centered, only possible if ppilot ≥ 2 x ptank + ppilot min!) | ||
| Switching time adjustment | ||
| 13 | without switching time adjustment | no code |
| Switching time adjustment as supply control | S | |
| Switching time adjustment as discharge control | S2 | |
| Corrosion resistance | ||
| 14 | None (valve housing primed) | no code |
| Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
|
Electrical connection 2) |
||
| 15 | Individual connection | |
| Without mating connector; connector DIN EN 175301-803 | K4 6) | |
| For further electrical connections, see data sheet 23178 and 08010 | ||
| Spool position monitoring | ||
| 16 | Without position switch | no code |
| Monitored spool position "a" | QMAG24 | |
| Monitored spool position "b" | QMBG24 | |
| Monitored spool position "a" and "b" | QMABG24 | |
| Monitored rest position | QM0G24 | |
| Stroke setting | ||
| 17 | For ordering code, see stroke setting | |
|
Throttle insert 2) |
||
| 18 | Without throttle insert | no code |
| Throttle Ø 0.8 mm | B08 | |
| Throttle Ø 1.0 mm | B10 | |
| Throttle Ø 1.2 mm | B12 | |
| Throttle Ø 1.5 mm | B15 | |
| Throttle Ø 2.0 mm | B20 | |
| Throttle Ø 2.5 mm | B25 | |
|
preload valve (not for NG10) 2) |
||
| 19 | without preload valve | no code |
| with preload valve (pö = 4.5 bar) | P4,5 | |
| 20 | without pressure reducing valve | no code |
| with pressure reducing valve | D3 5) | |
| Seal material | ||
| 21 | NBR seals | no code |
| FKM seals | V | |
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||
| 22 | Further details in the plain text | * |
Rexroth Type 4WEH16L Serie Directional Spool Valves, Pilot Operated, With electro-hydraulic Actuation on Sale, Short lead time, Best price!!!
| R900923888 | 4WEH16L7X/6AG24NETK4 |
| R900923873 | 4WEH16L7X/6AG24NK4/11V |
| R901184955 | 4WEH16L7X/6EG125N9ETK4/B10 |
| R900933265 | 4WEH16L7X/6EG125N9ETS2K4 |
| R901017946 | 4WEH16L7X/6EG205N9K4/B10 |
| R901291706 | 4WEH16L7X/6EG24ETK4/B10 |
| R978914235 | 4WEH16L7X/6EG24N9EDA |
| R900930859 | 4WEH16L7X/6EG24N9EK4 |
| R900934317 | 4WEH16L7X/6EG24N9EK4/10 |
| R901170879 | 4WEH16L7X/6EG24N9EK4/10B08 |
| R900246868 | 4WEH16L7X/6EG24N9EK4/B08 |
| R901150485 | 4WEH16L7X/6EG24N9EK4/B08P4,5 |
| R901332248 | 4WEH16L7X/6EG24N9EK4/B10 |
| R901119793 | 4WEH16L7X/6EG24N9EK4/B10D3 |
| R901355639 | 4WEH16L7X/6EG24N9EK4/B15 |
| R901159670 | 4WEH16L7X/6EG24N9ES2DL/10B10 |
| R987144193 | 4WEH16L7X/6EG24N9ES2K4 |
| R978020880 | 4WEH16L7X/6EG24N9ES2K4 |
| R900617871 | 4WEH16L7X/6EG24N9ES2K4/10B08 |
| R900954345 | 4WEH16L7X/6EG24N9ES2K4/10B10 |
| R900755284 | 4WEH16L7X/6EG24N9ES2K4/B08 |
| R900941793 | 4WEH16L7X/6EG24N9ES2K4/B10 |
| R901118928 | 4WEH16L7X/6EG24N9ES2K4/B10D3 |
| R901320870 | 4WEH16L7X/6EG24N9ES2K4/B10V |
| R901133280 | 4WEH16L7X/6EG24N9ES2K4/B15 |
| R901018996 | 4WEH16L7X/6EG24N9ESDJL/B10 |
| R900755801 | 4WEH16L7X/6EG24N9ESDJL1/B10 |
| R900948690 | 4WEH16L7X/6EG24N9ESK4/10B10 |
| R978006697 | 4WEH16L7X/6EG24N9ETDAL |
| R900924643 | 4WEH16L7X/6EG24N9ETK4 |
| R900961508 | 4WEH16L7X/6EG24N9ETK4/10B10 |
| R901305826 | 4WEH16L7X/6EG24N9ETK4/12B10 |
| R900711896 | 4WEH16L7X/6EG24N9ETK4/B08 |
| R900952631 | 4WEH16L7X/6EG24N9ETK4/B10 |
| R900759798 | 4WEH16L7X/6EG24N9ETK4/B10D3 |
| R900758815 | 4WEH16L7X/6EG24N9ETK4/B10P4,5 |
| R900744334 | 4WEH16L7X/6EG24N9ETK4/B10V |
| R901364813 | 4WEH16L7X/6EG24N9ETK4/B12 |
| R900748284 | 4WEH16L7X/6EG24N9ETS2DJL/B10 |
| R900713835 | 4WEH16L7X/6EG24N9ETS2K4/B08 |
| R900712203 | 4WEH16L7X/6EG24N9ETS2K4/B10 |
| R901088780 | 4WEH16L7X/6EG24N9ETS2K4/B10P4,5 |
| R900934944 | 4WEH16L7X/6EG24N9ETSK4 |
| R901397287 | 4WEH16L7X/6EG24N9ETSK4/B10 |
| R901034404 | 4WEH16L7X/6EG24N9ETSK4/B10P4,5 |
| R900977794 | 4WEH16L7X/6EG24N9ETSK4/B10V |
| R900927835 | 4WEH16L7X/6EG24N9K4 |
| R987013149 | 4WEH16L7X/6EG24N9K4/B08 |
| R900965805 | 4WEH16L7X/6EG24N9K4/B10 |
| R978917507 | 4WEH16L7X/6EG24N9K4/V |
| R901025836 | 4WEH16L7X/6EG24N9S2DL/B10 |
| R900955915 | 4WEH16L7X/6EG24N9S2K4 |
| R901170882 | 4WEH16L7X/6EG24N9S2K4/B10D3 |
| R901548809 | 4WEH16L7X/6EG24N9S2K4/B15 |
| R901020097 | 4WEH16L7X/6EG24N9TDJL |
| R900926210 | 4WEH16L7X/6EG24N9TK4 |
| R900965575 | 4WEH16L7X/6EG24N9TK4/B08 |
| R901395041 | 4WEH16L7X/6EG24N9TK4/B10P4,5 |
| R978910724 | 4WEH16L7X/6EG24N9TK4/V |
| R901005178 | 4WEH16L7X/6EG24N9TS2K4 |
| R900934457 | 4WEH16L7X/6EG24NES2DL/10 |
| R901249226 | 4WEH16L7X/6EG24NES2DL/10B10 |
| R901132104 | 4WEH16L7X/6EG24NES2DL/B10 |
| R901216194 | 4WEH16L7X/6EG24NES2K4/10B10 |
| R901137929 | 4WEH16L7X/6EG24NETDL/B10 |
| R901146816 | 4WEH16L7X/6EG24NETK4/B10 |
| R901199040 | 4WEH16L7X/6EG24NTK4/B10D3 |
| R901312005 | 4WEH16L7X/6EG48N9K4 |
| R901236174 | 4WEH16L7X/6EG96N9EK4/10B10 |
| R900760281 | 4WEH16L7X/6EW100N9DJL |
| R901016191 | 4WEH16L7X/6EW100N9ETDJL/B10 |
| R900759009 | 4WEH16L7X/6EW100N9ETDJL1/B10 |
| R900740265 | 4WEH16L7X/6EW100N9ETK4 |
| R900767226 | 4WEH16L7X/6EW100N9ETS2DJL/B10 |
| R901007106 | 4WEH16L7X/6EW100N9TS2DJL |
| R901420886 | 4WEH16L7X/6EW100N9TSDJL |
| R901008632 | 4WEH16L7X/6EW100RN9ETSDJL1/B10 |
| R978908123 | 4WEH16L7X/6EW110N9DA |
| R978901394 | 4WEH16L7X/6EW110N9DK25 |
| R978908604 | 4WEH16L7X/6EW110N9EDAL |
| R901299483 | 4WEH16L7X/6EW110N9EDAL/B10 |
| R900940973 | 4WEH16L7X/6EW110N9EK4 |
| R901251786 | 4WEH16L7X/6EW110N9EK4/B08D3 |
| R901278720 | 4WEH16L7X/6EW110N9EK4/B10 |
| R900928743 | 4WEH16L7X/6EW110N9ES2K4 |
| R901271354 | 4WEH16L7X/6EW110N9ES2K4/B10 |
| R978914619 | 4WEH16L7X/6EW110N9ESK4 |
| R978918055 | 4WEH16L7X/6EW110N9ETDAL |
| R900938904 | 4WEH16L7X/6EW110N9ETK4 |
| R900965808 | 4WEH16L7X/6EW110N9ETK4/B10 |
| R900933555 | 4WEH16L7X/6EW110N9ETK4/V |
| R978917094 | 4WEH16L7X/6EW110N9ETS2K4 |
| R901545659 | 4WEH16L7X/6EW110N9ETS2K4/B10 |
| R978005041 | 4WEH16L7X/6EW110N9ETS2K4/V |
| R901171053 | 4WEH16L7X/6EW110N9ETSDJL1/B10 |
| R900927337 | 4WEH16L7X/6EW110N9K4 |
| R983031301 | 4WEH16L7X/6EW110N9K4IN010 |
| R978909706 | 4WEH16L7X/6EW110N9TK4 |
| R901027089 | 4WEH16L7X/6EW110N9TK4 |
| R901285097 | 4WEH16L7X/6EW110N9TK4/B10 |
| R900777388 | 4WEH16L7X/6EW110N9TS2K4 |
| R978914608 | 4WEH16L7X/6EW110N9TS2K4/P4,5 |
| R901292698 | 4WEH16L7X/6EW110RN5S2DJL |
| R901290983 | 4WEH16L7X/6EW110RN5S2DL |
| R901312920 | 4WEH16L7X/6EW110RN9ETSDJL/B10 |
| R901213878 | 4WEH16L7X/6EW200N9DJL |
| R901185049 | 4WEH16L7X/6EW200N9ESDJL1/B10 |
| R901358286 | 4WEH16L7X/6EW200N9ETS2DJL/B10 |
| R900740266 | 4WEH16L7X/6EW200N9ETSDJL1 |
| R901250771 | 4WEH16L7X/6EW200N9S2DJL |
| R900962925 | 4WEH16L7X/6EW230N9EK4 |
| R900962975 | 4WEH16L7X/6EW230N9ES2K4/B10 |
| R901222364 | 4WEH16L7X/6EW230N9ESDL/B10 |
| R900924823 | 4WEH16L7X/6EW230N9ETK4 |
| R901265945 | 4WEH16L7X/6EW230N9ETK4/B10 |
| R900702115 | 4WEH16L7X/6EW230N9ETK4/B10D3 |
| R901372843 | 4WEH16L7X/6EW230N9ETK4/B10P4,5 |
| R900931047 | 4WEH16L7X/6EW230N9ETK4/B12 |
| R900932643 | 4WEH16L7X/6EW230N9ETK4/P4,5 |
| R987009599 | 4WEH16L7X/6EW230N9ETS2K4 |
| R900933560 | 4WEH16L7X/6EW230N9ETS2K4/B08 |
| R900948292 | 4WEH16L7X/6EW230N9ETS2K4/B10 |
| R978033379 | 4WEH16L7X/6EW230N9ETS2K4/P4,5 |
| R901046421 | 4WEH16L7X/6EW230N9ETSDL/B10 |
| R900970575 | 4WEH16L7X/6EW230N9K4 |
| R901142768 | 4WEH16L7X/6EW230N9K4/B10 |
| R901203053 | 4WEH16L7X/6EW230N9TS2DJL |
| R900970154 | 4WEH16L7X/6EW230NSK4 |
| R901127537 | 4WEH16L7X/6HG24N9EK4 |
| R901108854 | 4WEH16L7X/6HG24N9EK4/B10 |
| R901108848 | 4WEH16L7X/6HG24N9ETK4 |
| R901108814 | 4WEH16L7X/6HG24N9ETK4/B10 |
| R901108861 | 4WEH16L7X/6HG24N9K4 |
| R901480134 | 4WEH16L7X/6HG24N9K4-910 |
| R900769777 | 4WEH16L7X/6SG24N9EK4/B10 |
| R900734111 | 4WEH16L7X/6SG24N9ETK4 |
| R900784499 | 4WEH16L7X/6SG24N9ETK4/B10 |
| R901025267 | 4WEH16L7X/6SG24N9K4 |
| R900923835 | 4WEH16L7X/U |
| R900945176 | 4WEH16L7X/UET |
| R900939637 | 4WEH16L7X=6EG24N9ETK4/B10=KM |
| R900925115 | 4WEH16L7X=6EG24N9ETK4=KM |
| R901367285 | 4WEH16L7X=6EG24N9K4 |
| R901132239 | H-4WEH16L7X/6EG110N9TS2DJL |
| R901046769 | H-4WEH16L7X/6EG24N9EK4/B10D3 |
| R901077622 | H-4WEH16L7X/6EG24N9EK4/B10D3ZV |
| R900977630 | H-4WEH16L7X/6EG24N9ES2K4/B10D3 |
| R900956812 | H-4WEH16L7X/6EG24N9ETK4/B10D3 |
| R901282894 | H-4WEH16L7X/6EG24N9ETK4/B10D3V |
| R901168115 | H-4WEH16L7X/6EG24N9ETS2DJL/B10D3 |
| R901364228 | H-4WEH16L7X/6EG24N9ETSK4/B10D3 |
| R900939919 | H-4WEH16L7X/6EG24N9K4 |
| R901077620 | H-4WEH16L7X/6EG24N9K4/Z |
| R900784082 | H-4WEH16L7X/6EG24N9S2K4 |
| R900729122 | H-4WEH16L7X/6EG24N9S2K4/B10D3 |
| R901147679 | H-4WEH16L7X/6EG24N9TK4/B10D3 |
| R900943539 | H-4WEH16L7X/6EG24N9TSK4 |
| R978022979 | H-4WEH16L7X/6EG24NTK4 |
| R900755785 | H-4WEH16L7X/6EW100N9ETDJL/B10D3 |
| R901066610 | H-4WEH16L7X/6EW100N9ETK4/B10D3 |
| R901080306 | H-4WEH16L7X/6EW100N9TS2DJL/B10D3 |
| R900750722 | H-4WEH16L7X/6EW100N9TS2K4/B10D3 |
| R901250338 | H-4WEH16L7X/6EW110N9EK4/B08D3 |
| R900926338 | H-4WEH16L7X/6EW110N9K4 |
| R901095051 | H-4WEH16L7X/6EW110N9TS2DJL/B10D3 |
| R900771791 | H-4WEH16L7X/6EW110N9TS2K4/B10D3 |
| R901412144 | H-4WEH16L7X/6EW200N9S2K4 |
| R901180421 | H-4WEH16L7X/6EW230N9K4 |
| R900924008 | H-4WEH16L7X/U |
Hot Tags: r900931047 4weh16l72/6ew230n9etk4/b12 rexroth 4weh16l directional spool valve, China r900931047 4weh16l72/6ew230n9etk4/b12 rexroth 4weh16l directional spool valve manufacturers, suppliers, factory, servo valve, Check valve, Relief valve, Compact Directional Valves, Proportional valve, Compact Power Modules
