REXROTH M-Z4SEH 4/2 Directional Seat Valve, Pilot Operated M-Z4SEH10E M-Z4SEH10E1 M-Z4SEH10 M-Z4SEH10A M-Z4SEH10B M-Z4SEH16E M-Z4SEH16E1 M-Z4SEH16 M-Z4SEH16A M-Z4SEH16B

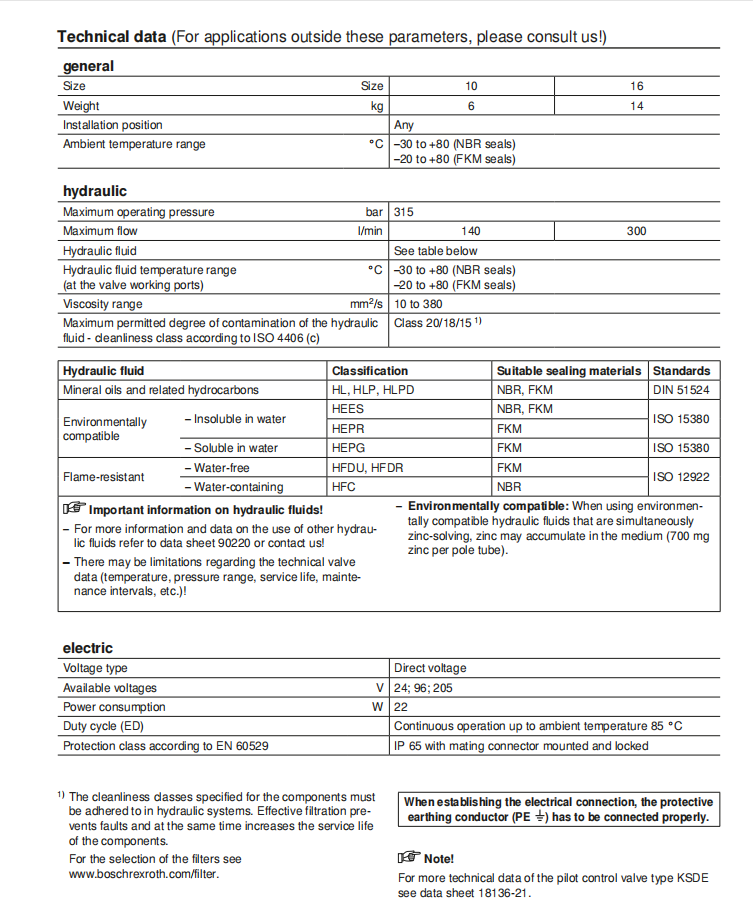

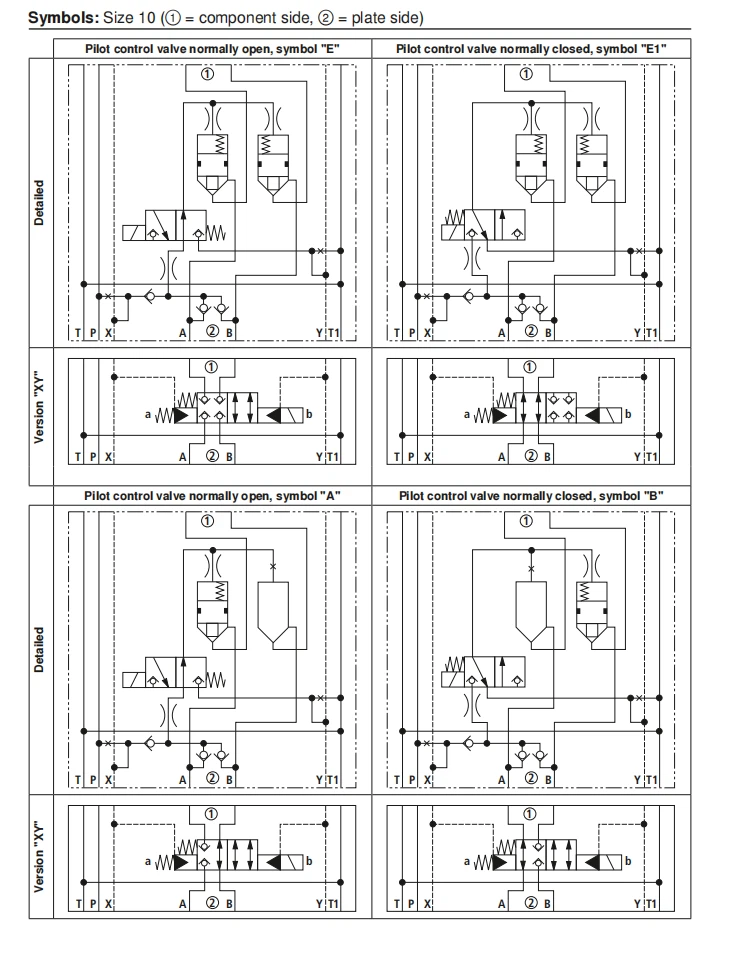

Component size 8 Component series B Maximum operating pressure 500 bar Maximum flow 5 l/min Features – Direct operated directional seat valve with solenoid actuation, tight on both sides – Mounting cavity R/T-8A – Blocked connection tight in a leak-free form – Safe switching also with longer standstill periods – Wet-pin DC solenoids – Rotatable solenoid coil Operating pressure 350 bar Spool symbol Type Material no. N KSDER8NB/HN0V R901085000 KSDER8NB/HN11V R901207100 P KSDER8PB/HN0V R901085005 KSDER8PB/HN9V R901207098 Operating pressure 500 bar Spool symbol Type Material no. N KSDEU8NB/HN0V R901085007 P KSDEU8PB/HN0V R901085009 General The 2/2 directional seat valves are direct operated, pressurecompensated cartridge valves. They basically comprises of screw-in section (1), solenoid (4) as well as closing element (3) and compression spring (2). Function The initial position of the valve (normally open "P" or normally closed "N") is determined by the position of the closing element (3) and the arrangement of the compression spring (2). Due to the structural design, the 2/2 directional seat valves are always pressure-compensated in relation to the actuating forces. The main ports ① and ② can be loaded with an operating pressure of 350/500 bar (see page 4).
