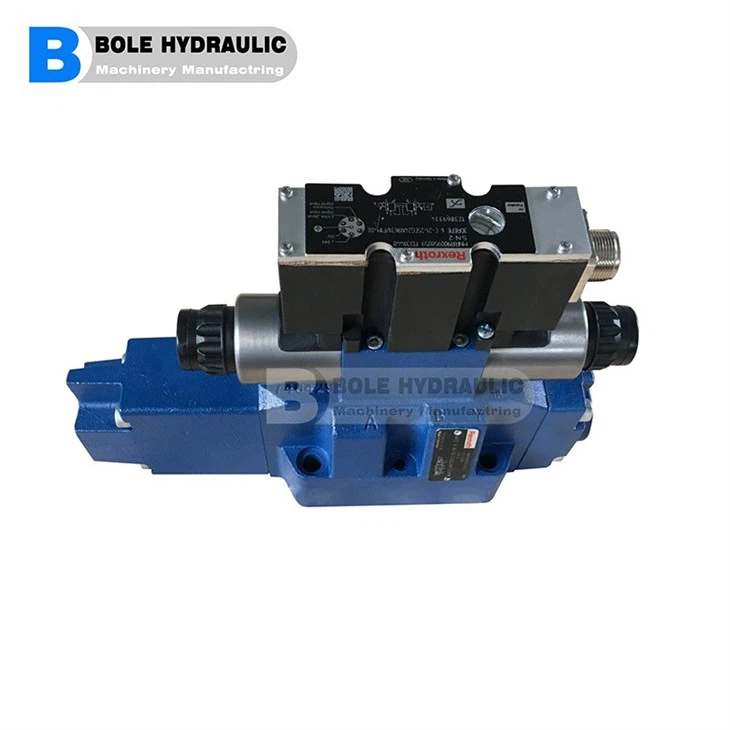

R901240745 Rexroth Hydraulic Valves 3DREME10P-73/315YG24K31A1V 3DREME10P-7X/315YG24K31A1V

R901240745 Rexroth Hydraulic Valves 3DREME10P-73/315YG24K31A1V 3DREME10P-7X/315YG24K31A1V

Proportional pressure reducing valve, pilot-operated 3DRE(M)E on Sale, Short lead time, Best price!!! R901222173 3DREME 16 P-7X/200YG24K31F1M R901256689 3DREME10P-7X/100XYG24K31A1V R901451752 3DREME10P-7X/100XYG24K31F1V R901242254 3DREME10P-7X/100YG24K31A1V R901275767 3DREME10P-7X/100YG24K31F1V R901229977 3DREME10P-7X/200XYG24K31A1V R901220113 3DREME10P-7X/200YG24K31A1V R901232078 3DREME10P-7X/200YG24K31F1M R901218097 3DREME10P-7X/200YG24K31F1V R901252139 3DREME10P-7X/315XYG24K31A1V R901240745 3DREME10P-7X/315YG24K31A1V R901223481 3DREME10P-7X/315YG24K31F1V R901293211 3DREME10P-7X/50YG24K31A1V R901222172 3DREME10P-7X/50YG24K31F1M R901308772 3DREME10P-7X/50YG24K31F1V R901448411 3DREME16P-7X/100XYG24K31A1V R901263897 3DREME16P-7X/100XYG24K31F1V R901261979 3DREME16P-7X/100YG24K31A1V R901238935 3DREME16P-7X/100YG24K31F1V R901298776 3DREME16P-7X/200XYG24K31A1V R901294058 3DREME16P-7X/200XYG24K31F1V R901231067 3DREME16P-7X/200YG24K31A1V R901218100 3DREME16P-7X/200YG24K31F1V R901229466 3DREME16P-7X/250YG24K31A1V R901309623 3DREME16P-7X/250YG24K31F1V R901341832 3DREME16P-7X/50YG24K31A1V

Send Inquiry

Description

Proportional pressure reducing valve, pilot-operated
3DRE(M)E

Size 10, 16
Component series 7X
Maximum set pressure 315 bar
Maximum flow 300 l/min

Features
3-way version
Operation by means of proportional solenoid with rotatable coil
For subplate mounting
Porting pattern according to ISO 4401
Maximum pressure limitation, optional
Valve and control electronics from a single source
Integrated electronics (OBE) with little manufacturing tolerance of the command value pressure characteristic curve
Linear command value pressure characteristic curve

Type Code :

01	02	03	04	05		06		07	08	09	10	11	12	13
3DRE		E		P	-	7X	/			G24	K31			*

01	Proportional pressure reducing valve in 3-way version, pilot-operated	3DRE
02	Without maximum pressure limitation	no code
02	With maximum pressure limitation	M
03	With integrated electronics (OBE)	E
04	Size 10	10
04	Size 16	16
05	Subplate mounting	P
06	Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions)	7X
Pressure rating
07	Up to 50 bar	50
	Up to 100 bar	100
	Up to 200 bar	200
	Up to 250 bar (NG16 only)	250
	Up to 315 bar (NG10 only)	315
08	Internal pilot oil supply, external pilot oil return	Y
08	External pilot oil supply, external pilot oil return	XY
Power supply
09	Direct voltage 24 V	G24
Electrical connection
10	Without mating connector; connector DIN EN 175201-804	K31
Interfaces of the control electronics
11	Command value input 0 ... +10 V	A1
11	Command value input 4 ... 20 mA	F1
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
12	NBR seals	M
12	FKM seals	V
13	Further details in the plain text	*

Proportional pressure reducing valve, pilot-operated 3DRE(M)E on Sale, Short lead time, Best price!!!

R901222173	3DREME 16 P-7X/200YG24K31F1M
R901256689	3DREME10P-7X/100XYG24K31A1V
R901451752	3DREME10P-7X/100XYG24K31F1V
R901242254	3DREME10P-7X/100YG24K31A1V
R901275767	3DREME10P-7X/100YG24K31F1V
R901229977	3DREME10P-7X/200XYG24K31A1V
R901220113	3DREME10P-7X/200YG24K31A1V
R901232078	3DREME10P-7X/200YG24K31F1M
R901218097	3DREME10P-7X/200YG24K31F1V
R901252139	3DREME10P-7X/315XYG24K31A1V
R901240745	3DREME10P-7X/315YG24K31A1V
R901223481	3DREME10P-7X/315YG24K31F1V
R901293211	3DREME10P-7X/50YG24K31A1V
R901222172	3DREME10P-7X/50YG24K31F1M
R901308772	3DREME10P-7X/50YG24K31F1V
R901448411	3DREME16P-7X/100XYG24K31A1V
R901263897	3DREME16P-7X/100XYG24K31F1V
R901261979	3DREME16P-7X/100YG24K31A1V
R901238935	3DREME16P-7X/100YG24K31F1V
R901298776	3DREME16P-7X/200XYG24K31A1V
R901294058	3DREME16P-7X/200XYG24K31F1V
R901231067	3DREME16P-7X/200YG24K31A1V
R901218100	3DREME16P-7X/200YG24K31F1V
R901229466	3DREME16P-7X/250YG24K31A1V
R901309623	3DREME16P-7X/250YG24K31F1V
R901341832	3DREME16P-7X/50YG24K31A1V
