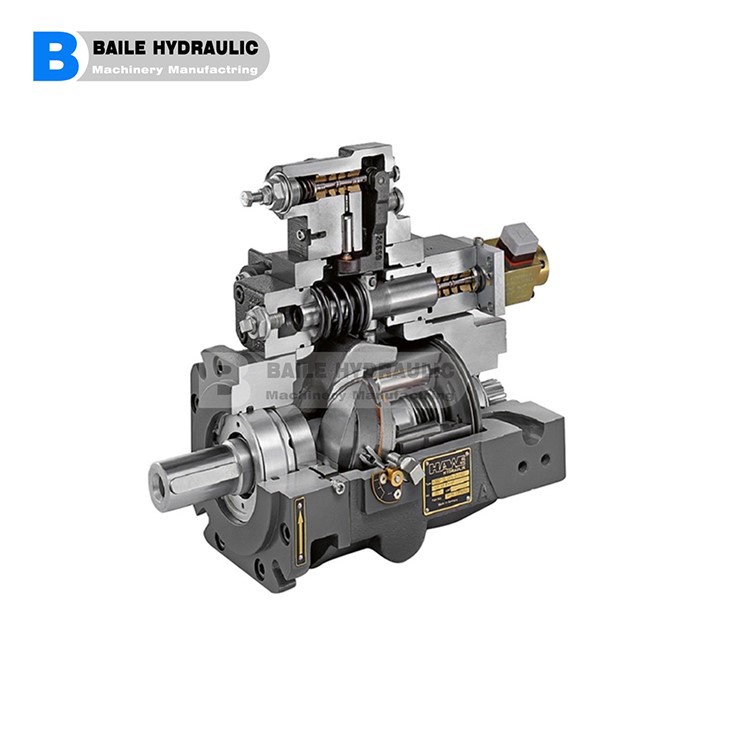

HAWE Variable Displacement Axial Piston Pump Type V30D V30D-045 V30D-075 V30D-095 V30D-115 V30D-140 V30D-160 V30D-250

Variable displacement axial piston pumps adjust the geometric output volume from maximum to zero. As a result they vary the ow rate that is provided to the consumers. The axial piston pump type V30D is designed for open circuits in industrial hydraulics and operate according to the swash plate principle. They are available with the option of a thru-shaft for operating additional hydraulic pumps in series. The sturdy pump is particularly suitable for continuous operation in challenging applications. The range of pump controllers allows the axial piston pump to be used in a wide variety of applications. Features and benets: ■ Low-noise emissions ■ Long lifetime even under demanding application conditions ■ Broad selection of controllers ■ Full torque available at the second pump in tandem pump applications Intended applications: ■ Hydraulic presses ■ Marine applications ■ Industrial plants ■ Power pack assembly ■ Mining and tunnel boring machines. V30D-075RKGN-1-0-02/NL-2/65-350
