KAWASAKI K3V K5V Swash-plate Type Axial Piston Pumps For Open Circuits in Industrial Vehicles
•K3V63DT •K5V80DT •K3V63DTP •K5V80DTP •K3V112DT •K5V140DT •K3V112DTP •K5V140DTP •K3V140DT •K3V140DTP •K5V200DT •K5V200DTP •K5V200DTH •K3V280DTH •K3V112DP •K5V140DP •K3V63S •K5V80S •K3V112S •K5V140S •K3V140S •K5V200DP •K5V200S •K5V200DPH •K5V200SH •K3V280S •K3V280SH
Out of a Wide Variety of Our Swash Plate Type Axial Piston Pumps,
We Introduce below Those Most Suitable
for Construction Machines with Open Circuits.KPM Swash Plate Type Axial Piston Pumps Programs for Industrial Vehicles
•K3V63DT •K5V80DT •K3V63DTP •K5V80DTP •K3V112DT •K5V140DT •K3V112DTP •K5V140DTP •K3V140DT •K3V140DTP •K5V200DT •K5V200DTP •K5V200DTH •K3V280DTH •K3V112DP •K5V140DP •K3V63S •K5V80S •K3V112S •K5V140S •K3V140S •K5V200DP •K5V200S •K5V200DPH •K5V200SH •K3V280S •K3V280SH
1. High Power Density A lighter and more compact machine with higher pressure rating and increased power density (output power/mass) was obtained by adopting a half log type swash plate. In particular, the double pump with its tandem arrangement, has eliminated a power divider, has an increased transmission efficiency, and is lighter. 2. High Efficiency and Large Self-Priming Capability The spherical valve plate and improved hydraulic balance provide stable cylinder rotation, thus achieving high efficiency even in a low-pressure and low-speed operating range.

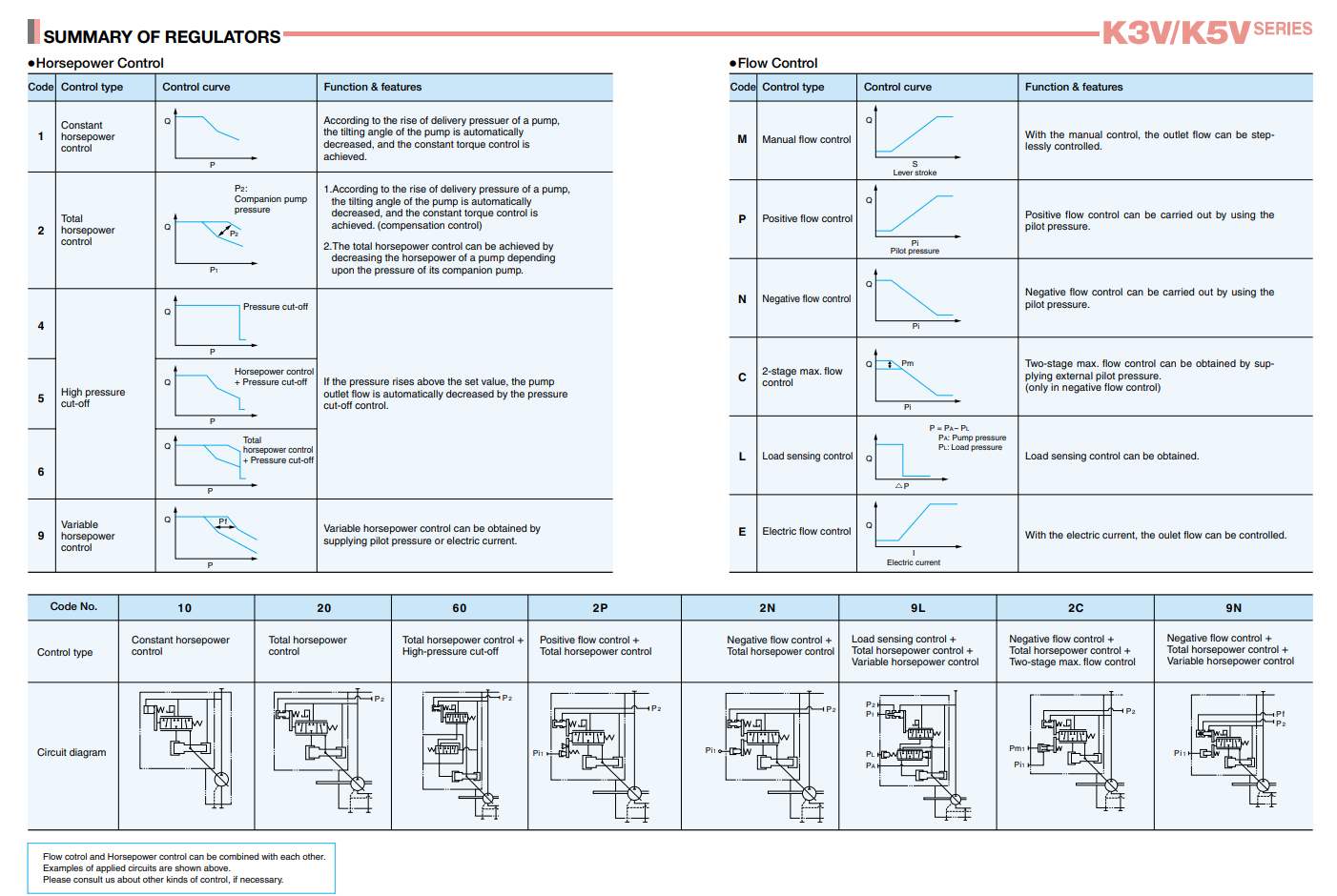

3. Long Life A long life is obtained by adopting main bearings of large capacity and the piston-return mechanism that compensates for the wear of the shoe. 4. Low Noise Even less noise has been achieved because of the optimum design of the valve plate and the casing rigidity. 5. Wide Range of Controls The pump can be controlled in various kinds of control methods and is capable of responding to either mechanical, hydraulic or electrical input.
| KAWASAKI Swash-plate Axial Piston Pump K3V K5V Series |
|
|
K3VL28
K3VL28/C-1ARSM-L0
K3VL28/C-1ARSM-P0
K3VL28/C-1NRSM-L0
K3VL28/C-1NRSM-P0
K3VL28/C-1BRSM-PR24D
K3VL28/C-1NRKM-L0
K3VL28/C-1NRKM-P0
K3VL28/C-1NRKS-L0
K3VL28/C-1NRKS-P0
K3VL45
K3VL45/B-10RKM-L0
K3VL45/B-10RKM-P0/1-H1
K3VL45/B-10RKM-PV/1-L
K3VL45/B-10RMM-P0
K3VL45/B-10RSM-P0/1-E0
K3VL45/B-10RSM-P0
K3VL45/B-10RSS-P0
K3VL45/B-10RTM-P0
K3VL45/B-1ALSM-PM 24VDC
K3VL45/B-1ALSM-P0
K3VL45/B-1ALSS-L0/1-H4
K3VL45/B-1ARKM-P0/1-E0
K3VL45/B-1ARMM-L0/1-H1
K3VL45/B-1ARSM-P0/1-E0
K3VL45/B-1ARSM-P0
K3VL45/B-1ARSS-L1/1-H1
K3VL45/B-1BRSM-L0
K3VL45/B-1BBLSM-PM 24VDC
K3VL45/B-1BBLSM-P0/1-E0
K3VL45/B-1BBLSM-P0/1-H1
K3VL45/B-1BBLTM-P0
K3VL45/B-1BBRKM-P0
K3VL45/B-1BBRSM-P0/1-E0
K3VL45/B-1BBRSM-P0/1-H1
K3VL45/B-1BBRSS-L0
K3VL45/B-1BBRTM-P0
K3VL45/B-1BRMM-P0/1-H1
K3VL45/B-1NLSM-L0
K3VL45/B-1NLSM-P0/1-E0
K3VL45/B-1NLSS-P0
K3VL45/B-1NLTS-P0
K3VL45/B-1NRKM-L1
K3VL45/B-1NRKM-P0/1-H1
K3VL45/B-1NRMM-P0
K3VL45/B-1NRMM-L0/1-H1
K3VL45/B-1NRSM-L0
K3VL45/B-1NRSM-L0/1-H1
K3VL45/B-1NRSS-L0/1-E0
K3VL45/B-1NRSS-L0/1-M1
K3VL45/B-1NRSS-L0
K3VL45/B-1NRSS-PN24D
K3VL45/B-1RLTM-L0
K3VL45/B-1RRTS-L0
K3VL45/B-1BBRSM-L1/1-M2 + K3VL45/B-10RKM-L1/1-M2
K3VL45/B-1BBRSM-P0 + K3VL45/B-10RSM-P0
K3VL80
K3VL80/B-10RKM-L0
K3VL80/B-10RKS-L1/1-L5
K3VL80/B-10RMM-P0/1-H1
K3VL80/B-10RSM-L0
K3VL80/B-10RSM-LN24D
K3VL80/B-10RSM-P0/1-E0
K3VL80/B-10RSS-L0/1-L1
K3VL80/B-1ALSM-PN24D
K3VL80/B-1ALSS-L0/1-H2
K3VL80/B-1ALSS-P0/1-E0
K3VL80/B-1ARMM-P0/1-L3
K3VL80/B-1ARSS-P0/1-L1
K3VL80/B-1BBLSM-PM 24VDC
K3VL80/B-1BBLSM-P0
K3VL80/B-1BBRSM-P0
K3VL80/B-1BBRSS-L1
K3VL80/B-1BLSS-L0/1-H1
K3VL80/B-1BLSS-L1
K3VL80/B-1BLSS-P0/1-Q0
K3VL80/B-1BRMM-L1
K3VL80/B-1BRMM-LM24D
K3VL80/B-1BRMM-P0/1-M4
K3VL80/B-1BRSM-L1/1-L1
K3VL80/B-1CLSM-P0/1-E0
K3VL80/B-1CLSM-P0/1-H1
K3VL80/B-1CLSS-L0
K3VL80/B-1CRMM-P0/1-H1
K3VL80/B-1CRSM-P0/1-E0
K3VL80/B-1CRSM-P0/1-H1
K3VL80/B-1NLKS-P0
K3VL80/B-1NLMM-L0
K3VL80/B-1NLSM-L0
K3VL80/B-1NLSS-L0
K3VL80/B-1NRKM-P0
K3VL80/B-1NRKM-P0/1-H1
K3VL80/B-1NRMM-P0
K3VL80/B-1NRMM-L0/1-M2
K3VL80/B-1NRSM-L1
K3VL80/B-1NRSS-P0/1-E0
K3VL80/B-1NRSS-L0/1-M1
K3VL80/B-1NRSS-L0
K3VL80/B-1NRSS-PN24D
K3VL80/B-1RLSM-L0
K3VL80/B-1RRKS-P0/1-H1
K3VL80/B-1RRSM-L0
K3VL80/B-1RRSS-P0/1-H1
K3VL80/B-1BBLSM-P0 + K3VL45/B-1NLSM-L0
K3VL80/B-1BBLSS-L1 + K3VL45/B-1ALSS-L1
K3VL80/B-1CRMM-L0/1-H1 + K3VL80/B-1NRSM-L0/1-H1
K3VL112/K3VL140
K3VL112/B-10RCM-L1
K3VL112/B-10RKS-P0/1-H4
K3VL112/B-10RWM-L1
K3VL112/B-1ALSM-P0
K3VL112/B-1ALWS-L0
K3VL112/B-1ARMM-L1/1-S6
K3VL112/B-1ARSM-L0/1-M1
K3VL112/B-1BBRMM-L0
K3VL112/B-1BBRWM-L0
K3VL112/B-1BLSM-P0
K3VL112/B-1BRKM-L0/1-H1
K3VL112/B-1BRKS-P0/1-M1
K3VL112/B-1BRMM-L0
K3VL112/B-1BRMM-L1/1-H1
K3VL112/B-1BRSS-L0
K3VL112/B-1BRWS-L0
K3VL112/B-1C4LSM-L1
K3VL112/B-1CLCM-P0/1-E0
K3VL112/B-1CLCM-P0/1-H1
K3VL112/B-1CLCS L0
K3VL112/B-1CLSM-P0
K3VL112/B-1CLWM-L0/1-H1
K3VL112/B-1CLWS-L0
K3VL112/B-1CRCM-P0/1-E0
K3VL112/B-1CRCM-P0/1-H1
K3VL112/B-1CRKS-L1
K3VL112-B-1CRSM-L0_1-H
K3VL112/B-1DRSM-P0
K3VL112/B-1NLSM-L0
K3VL112 B 1NLSS L1
K3VL112/B-1NLWM-L0
K3VL112/B-1NLXS-L1
K3VL112/B-1NRCS-L1/1-H1
K3VL112/B-1NRCS-L1
K3VL112/B-1NRKM-L0/1-E0
K3VL112/B-1NRKM-L0/1-H1
K3VL112/B-1NRSM-L0/1-H1
K3VL112/B-1NRSS-L0-/1-M1
K3VL112/B-1NRSS-L0
K3VL112/B-1NRSS-PN24D
K3VL112/B-1NRWM-L0
K3VL112/B-1RLCM-L1
K3VL112/B-1RLSM-P0
K3VL112/B-1RLXS-L1
K3VL140/B-10RKS-P0
K3VL140/B-10RMM-P0/1-H1
K3VL140/B-10RMM-P0
K3VL140/B-10RSS-P0/1-H2
K3VL140/B-1ALKM-P0
K3VL140/B-1ALSM-L1
K3VL140/B-1ARMM-P0/1-E0
K3VL140/B-1ARSM-P0/1-E0
K3VL140/B-1ARSS-L0/1-H1
K3VL140/B-1BLSM-L0
K3VL140/B-1BLSM-L1/1-Q0
K3VL140/B-1BLXM-PM24D
K3VL140/B-1BRCS-PV
K3VL140/B-1CLMM-L1
K3VL140/B-1CLSM-L0/1-H1
K3VL140/B-1CRKS-L0/1-H1
K3VL140/B-1CRSS-P0
K3VL140 B 1DLKS L1
K3VL140/B-1DLSM-L0/1-E0
K3VL140/B-1DLSM-L1
K3VL140/B-1DRKS-L1/1-00
K3VL140/B-1DRMM-P0
K3VL140/B-1NLCM-L0
K3VL140/B-1NLCM-L1/1-H4
K3VL140/B-1NLMM-L0
K3VL140/B-1NLSM-L1
K3VL140/B-1NLSS-P0/1-E0
K3VL140/B-1NRKM-L0
K3VL140/B-1NRMM-L0/1-H1
K3VL140/B-1NRMM-P0
K3VL140/B-1NRMM-PM24D
K3VL140/B-1NRMM-PV/1-E0
K3VL140/B-1NRSS-L0/1-E0
K3VL112/B-1CRWM-L0 + K3VL80/B-10RSM-L0
K3VL112/B-1CRWM-L0/1-M1 + K3VL80/B-10RSM-L0
K3VL112/B-1DLSS-PN24D + K3VL112/B-1BBLSS-L0 + K3VL45/B-1ALSM-P0
K3VL112/B-1BBRWM-L0 + K3VL45/B-1BRSM-L0
K3VL112/B-1DRWM-L0 + K3VL112/B-1NRSM-L0
K3VL112/B-1BBRWM L0 + K3VL45/B-1NRSM-L0
K3VL112/B-1BBRSS-P0 + K3VL45/B-1BBRSS-P0 + K3VL45/B-10RSS-P0
K3VL112/B-1CLSM-L0/1-M4 + K3VL80/B-1NLSM-L0
K3VL112/B-1CLWM-L0/1-H1 + K3VL80/B-1NLSM-L0
K3VL112/B-1CRKM-P0/1-M2 + K3VL80/B-10RSM-P0
K3VL140/B-1BBLSM-P0 + K3VL45/B-1NLSM-P0
K3VL140/B-1DLSM-L0/1-H3 + K3VL112/B-1BBLSS-P0/1-H3 + K3VL45/B-1NLSS-P0
K3VL140/B-1DLSM-L0/1-E0 + K3VL140/B-1NLSM-L0
K3VL140/B-1DRKS-L1/1-00 + K3VL140/B-1NRSS-L1
K3VL140/B-1DRSM-P0 + K3VL112/B-1CRSM-P0 + K3VL80/B-10RSM-P0
K3VL140/B-1DRSM-P0 + K3VL112/B-10RSM-P0
K3VL200
K3VL200/B-1ARSS-L1
K3VL200/B-1BRKM-L0/1-H2
K3VL200/B-1BRSS-L0/1-H2
K3VL200/B-10RKS-P0/1-H1
K3VL200/B-1CRKS-L0
K3VL200/B-1CRSM-L0
K3VL200/B-1DRKS-PV
K3VL200/B-1CRKS-L0
K3VL200/B-1CRSM-L0
K3VL200/B-1DRKS-PV
K3VL200/B-1DRFM-L1
K3VL200/B-1DRSS-P0/1-H1
K3VL200/B-1ELFM-L0/1-E0
K3VL200/B-1ERFM-L1/1-H5
K3VL200/B-1ERKM-P0/1-H5
K3VL200/B-1NRSM-L1/1-H5
K3VL200/B-1NLKM-L0
K3VL200/B-1NLSM-L0
K3VL200/B-1NLSM-L0/1-E0
K3VL200/B-1NRKM-L1
K3VL200/B-1NRSS-L0
K3VL200/B-1NRKM-P0
K3VL200/B-1NRSS-L0/1-E0
K3VL200/B-1NRSS-L0/1-H1
K3VL200/B-1NRSS-PN24D
K3VL200/B-1ERFM-L1/1-H5 + K3VL200/B-1NRSM-L1/1-H5
