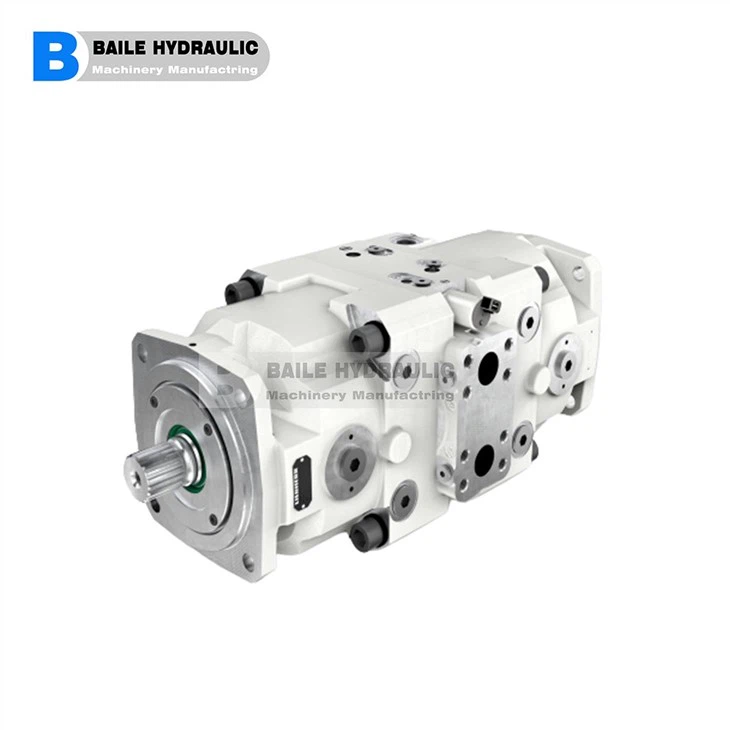

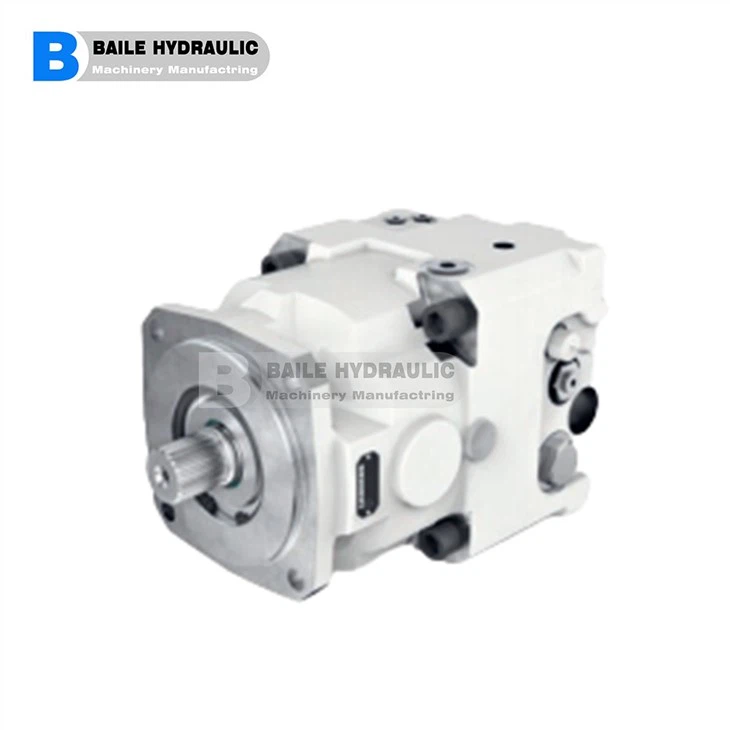

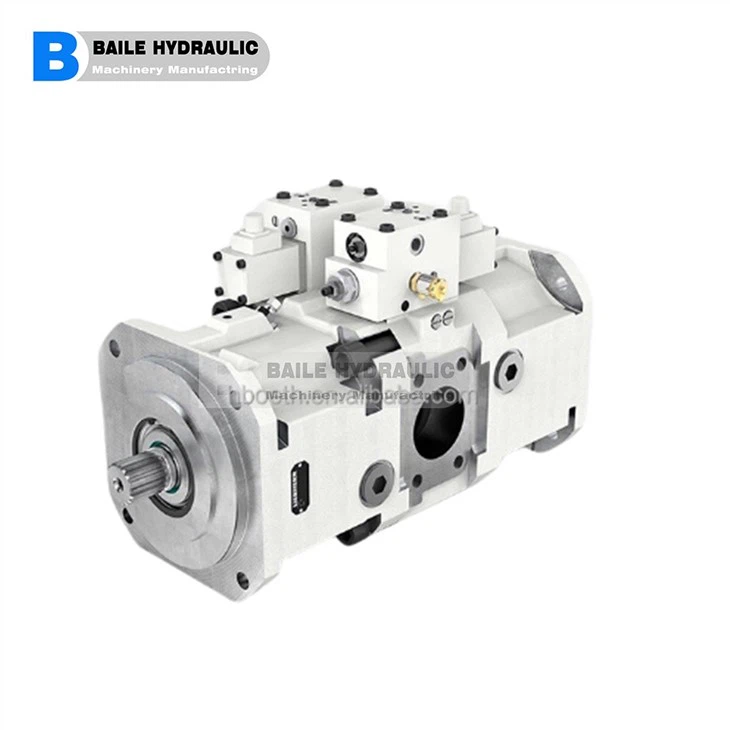

Axial Piston Double Motor LIEBHERR DMVA Series With Variable Displacement DMVA165-108 DMVA165-165 DMVA165-215 DMVA215-165 DMVA165-165/108 (Axial Piston-multi Circuit Motor)

The Liebherr axial piston double motors DMVA serieshave a swash plate design for the open and closed cir.cuit and were specially developed for use in mobile machinery in harsh environments The inverse drive with a swivel angle of 22° is very efficient and has a very high power density, making it ideafor applications that require an adjustable displacement These flanged variable displacement double motors areavailable in nominal sizes from 165-108 to 215-165. Thenominal pressure of the units is 450 bar and the maximum pressure is 500 bar absolute. The rotary groups are separately or parallellyadjustable. A common port plate simplifies piping installation. The DMVA series is available with the most commoncontrols. Speed sensor or preparation for speed sensolavailable on request. Valid for:DMVA 165-108DMVA 165-165DMVA 165-215DMVA 215-165DMVA 165-165/108 (Axial piston-multi circuit motor Features:Series DOpen and closed circuit Regulator types:Various regulator types can be selected Pressure range:Nominal pressure pHDy = 450 barMax. pressure pHDmax = 500 bar
