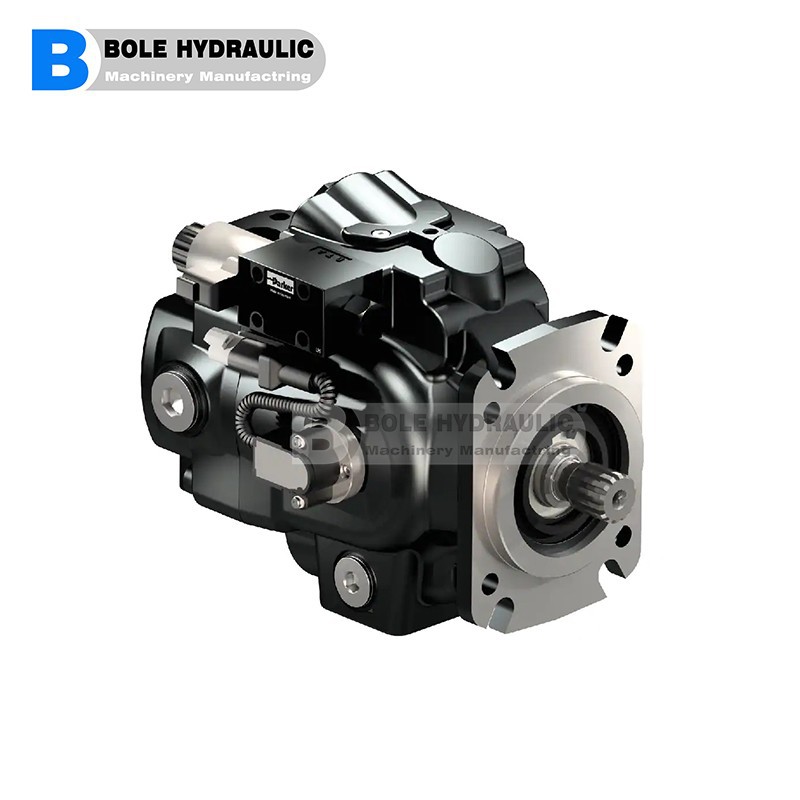

Parker Hannifin 20/911200 JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

Technical Specifications

Rotation: Counter-Clockwise (looking from shaft end)
Shaft: 1" Diameter parralel keyed shaft
Mounting Flange: SAE B 2 hole
Front Pump Displacement: 41 cc/rev (41L/Min per 1000 rpm)
Rear Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)

Flange Inlet: Single 2" SAE
Front Pump Outlet: 1 1/16"-12 UNF threaded
Rear Pump Outlet: 7/8"-14 UNF threaded
Maximum Working Pressure On Front Pump: 220 bar
Maximum Working Pressure On Rear Pump: 275 bar
Max. Input Shaft Torque: 325 Nm
Weight: 26 KG

Replaces the following JCB part numbers
20/911200 - 7441 - 4071 - 20/903200

Machine Fitment
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CX 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 3CX4M Military 9802/9759
PUMP, MAIN HYDRAULIC CODE 7441 3CXC PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 7441 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 7441 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 7441 4CXM Military 9802/9739
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 4CX444 PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 4CXSM444 Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 3CX444 SUPER Sideshift AR AK Engine 9802/9750



​​​​​​​​





​​​​​​​​​​​​​​​
