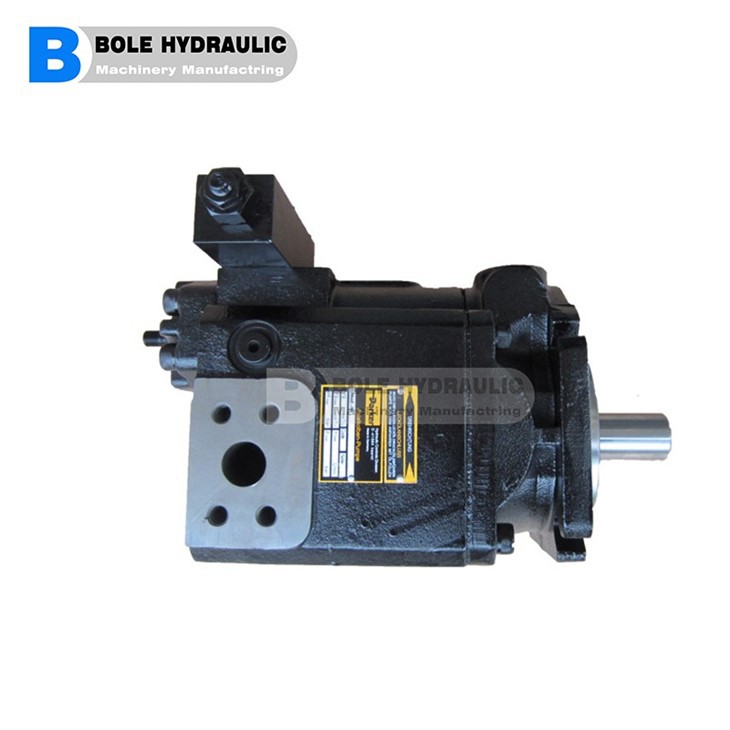

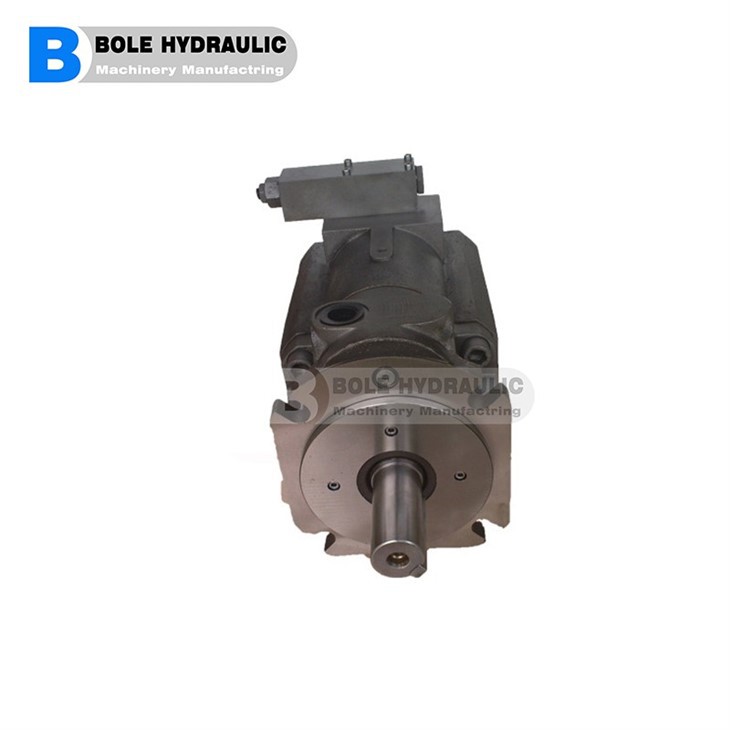

Parker Hannifin 20/912800 JCB 3CX Twin Hydraulic Pump 33 + 29 CC/REV



Technical Specifications

Rotation: Counter-Clockwise (looking from shaft end)
Shaft: 1" Diameter Parallel Keyed Shaft
Mounting Flange: SAE B 2 hole
Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm)
Rear Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)

Flange Inlet: Combined 2" SAE

Front Pump Outlet: 1 1/16"-12 UNF threaded
Rear Pump Outlet: 7/8"-14 UNF threaded
Maximum Working Pressure On Front Pump: 275 bar
Maximum Working Pressure On Rear Pump: 275 bar
Max. Input Shaft Torque: 325 Nm
Weight: 26 KG

Replaces the following JCB part numbers
20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072

Machine Fitment
PUMP, MAIN HYDRAULIC CODE 8282 M 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 831 3CX PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX (24 Volt) Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 831 3CXSM-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 831 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 831 3CXSM-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 831 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 831 3CXSM Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 831 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 831 3CX444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 831 3CX444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 831 3CX-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730

​​​​​​​​





​​​​​​​​​​​​​​​
