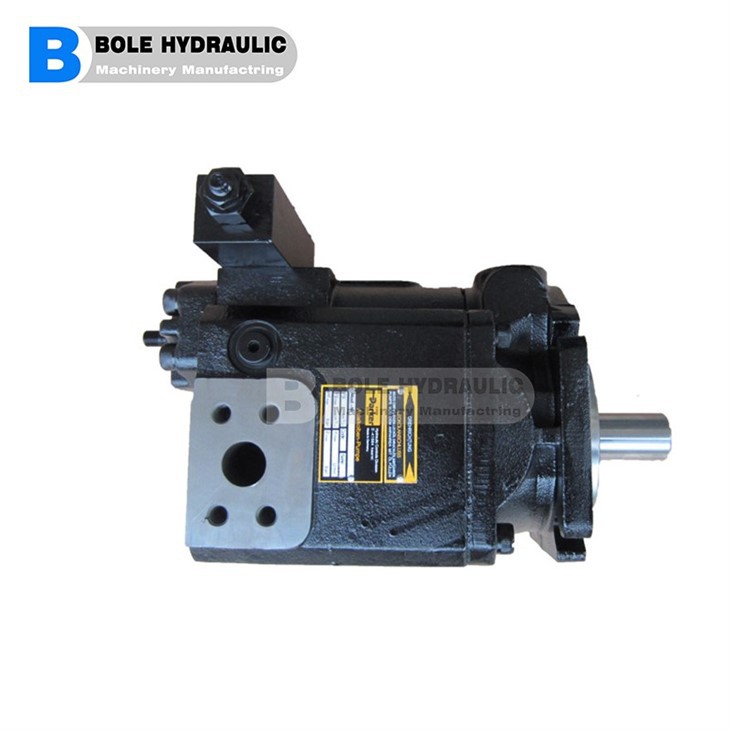

Parker Hannifin 20/925580 JCB 3CX Twin Hydraulic Pump 36 + 29 CC/REV
Technical Specifications Rotation: Clockwise (looking from shaft end) Shaft: 1” Diameter 15T SAE Splined Shaft 16/32 Pitch Mounting Flange: SAE B 2 hole Front Pump Displacement: 36 cc/rev (36L/Min per 1000 rpm) Rear Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm) Flange Inlet: Single 2” SAE Front Pump Outlet: 1.1/16”-12 UNF threaded Rear Pump Outlet: 7/8”-14 UNF threaded Maximum Working Pressure On Front Pump: 250 bar Maximum Working Pressure On Rear Pump: 275 bar Max. Input Shaft Torque: 460 Nm Weight: 26 KG Replaces the following JCB part numbers 20/925580 - 332/F9030 Machine Fitment PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010 PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CXM New Zealand MILITARY 9812/0050 PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010 PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010 PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS AWS 9812/0010 PUMP 36/29 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM (FRANCE) FRENCH MILITARY 9812/0070 PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX 9812/0010 PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS-PC Precision Control (Servo) 9812/0010 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CXSM MANUAL Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM-4 Centremount 9802/9810 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX MANUAL Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4 Centremount 9802/9810 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX P/S Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER MAN Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER P/S Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM444 SUPER Centremount 9802/9810 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX CONTRACTOR Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CXSM Sideshift 9802/9800 PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 Sideshift 9802/9800
Technical Specifications
Rotation: Clockwise (looking from shaft end)
Shaft: 1" Diameter 15T SAE Splined Shaft 16/32 Pitch
Mounting Flange: SAE B 2 hole
Front Pump Displacement: 36 cc/rev (36L/Min per 1000 rpm)
Rear Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)
Flange Inlet: Single 2" SAE
Front Pump Outlet: 1.1/16"-12 UNF threaded
Rear Pump Outlet: 7/8"-14 UNF threaded
Maximum Working Pressure On Front Pump: 250 bar
Maximum Working Pressure On Rear Pump: 275 bar
Max. Input Shaft Torque: 460 Nm
Weight: 26 KG
Replaces the following JCB part numbers
20/925580 - 332/F9030
Machine Fitment
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CXM New Zealand MILITARY 9812/0050
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS AWS 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM (FRANCE) FRENCH MILITARY 9812/0070
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS-PC Precision Control (Servo) 9812/0010
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CXSM MANUAL Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM-4 Centremount 9802/9810
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX MANUAL Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4 Centremount 9802/9810
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER MAN Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX SUPER P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM444 SUPER Centremount 9802/9810
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CX CONTRACTOR Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 3CXSM Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/29CCR M953914 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
PUMP, MAIN HYDRAULIC 36/29CCR 92HP BUILDS M0953914 Sideshift 9802/9800
