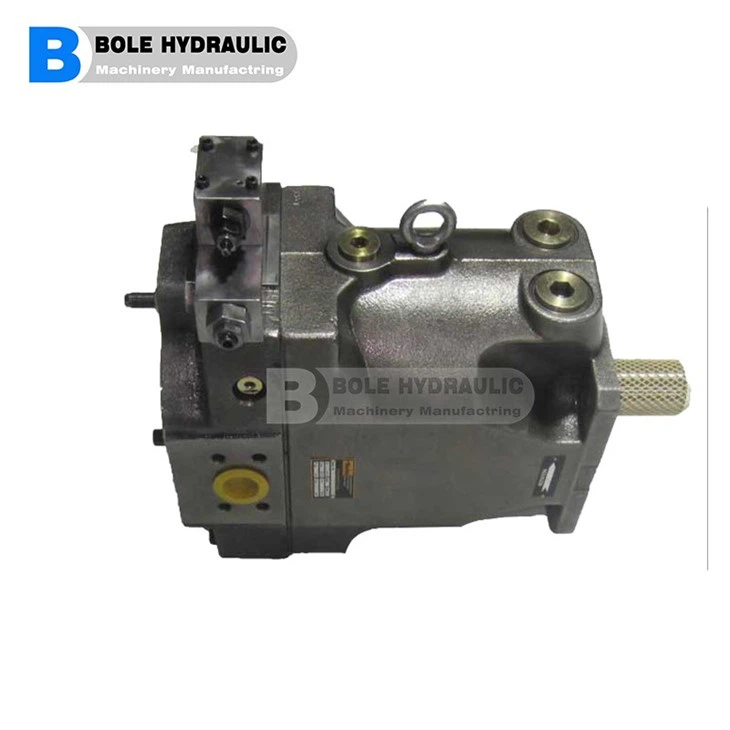

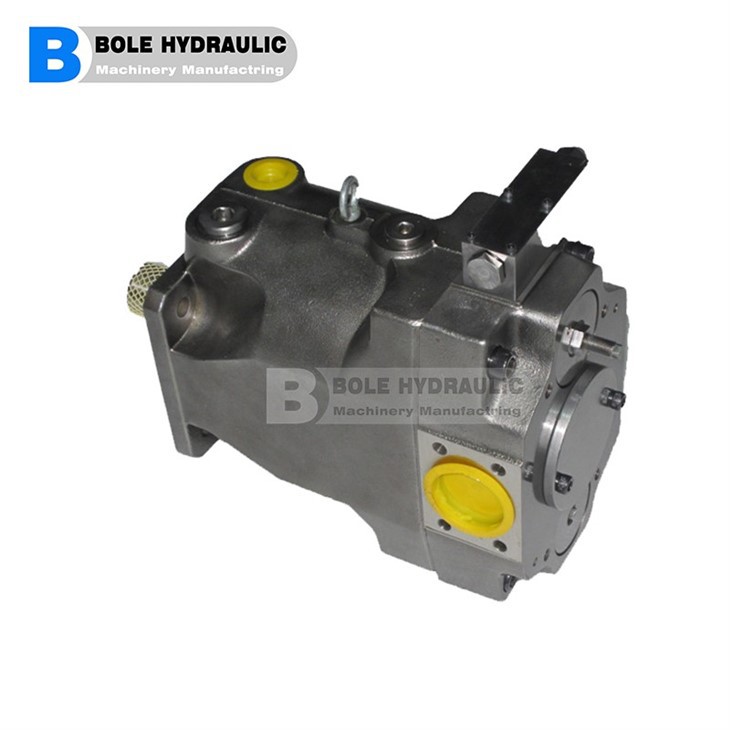

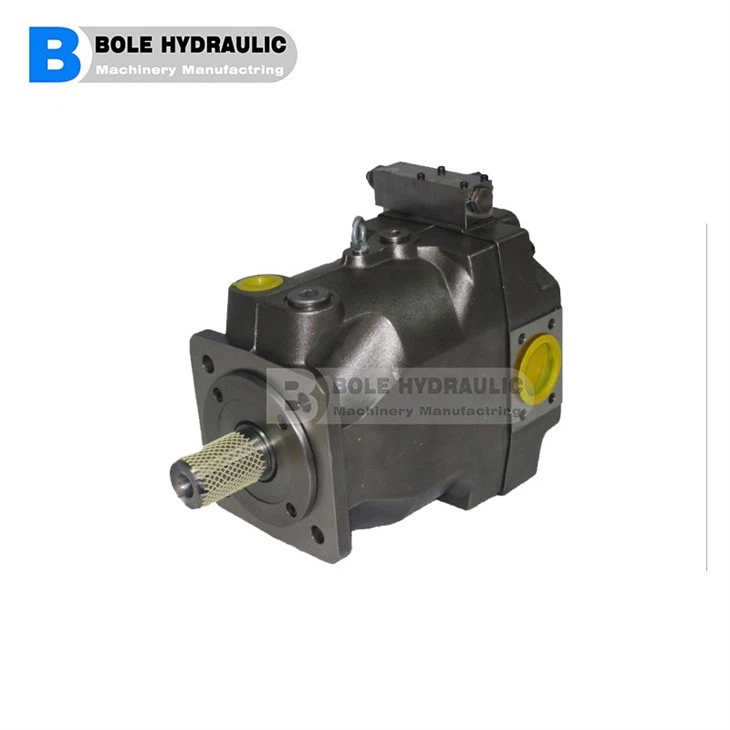

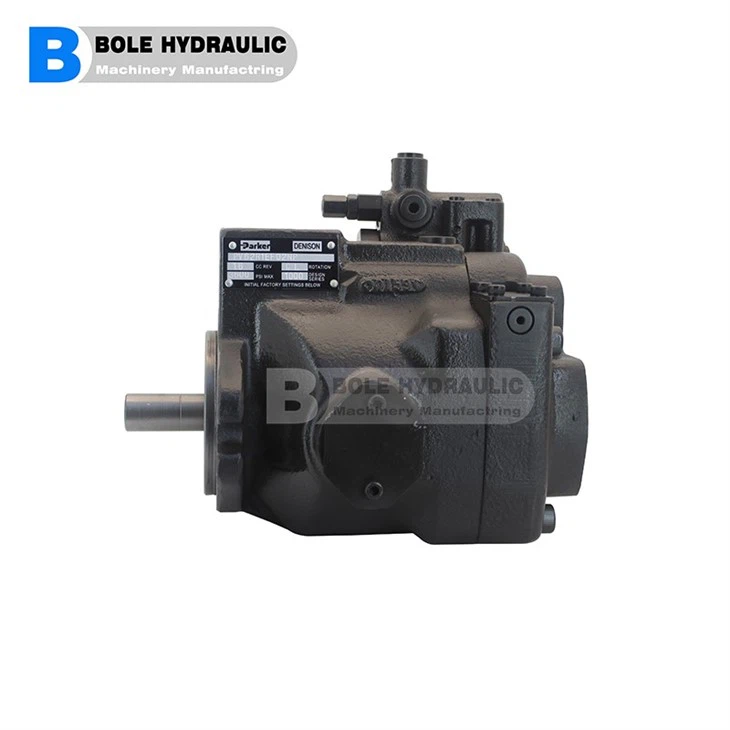

Parker Hannifin 919/27100 JCB Black Cab Twin Hydraulic Pump
Technical Specifications Rotation: Counter-Clockwise (looking from shaft end) Shaft: 1.25” Diameter Parallel Keyed Shaft (31.75mm) Mounting Flange: SAE B 2 hole Front Pump Displacement: 52 cc/rev (52L/Min per 1000 rpm) Rear Pump Displacement: 27 cc/rev (27L/Min per 1000 rpm) Flange Inlet: Combined 1.1/2” SAE Front Pump Outlet: 3/4" BSPP threaded Rear Pump Outlet: 5/8" BSPP threaded Max. Input Shaft Torque: 325 Nm Weight: 35 KG Replaces the following JCB part numbers 919/27100 - 919/72400 - PAJ2207/1906A3 Machine Fitment PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3DS-2 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4C-4 Turbo 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 France 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 Australia 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY .3CX-4 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4CN-4 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 Australia 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 Australia 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3D-4 Australia 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3D-2 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY .3CX-4 S'master 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4C Turbo 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 Sitemastr 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3C-2 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4C-2 Turbo 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY .3CX-2 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 France 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 Sitemastr 9802/8000 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4CN-2 9802/8500 PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3C-2 9802/8500
Technical Specifications
Rotation: Counter-Clockwise (looking from shaft end)
Shaft: 1.25" Diameter Parallel Keyed Shaft (31.75mm)
Mounting Flange: SAE B 2 hole
Front Pump Displacement: 52 cc/rev (52L/Min per 1000 rpm)
Rear Pump Displacement: 27 cc/rev (27L/Min per 1000 rpm)
Flange Inlet: Combined 1.1/2" SAE
Front Pump Outlet: 3/4" BSPP threaded
Rear Pump Outlet: 5/8" BSPP threaded
Max. Input Shaft Torque: 325 Nm
Weight: 35 KG
Replaces the following JCB part numbers
919/27100 - 919/72400 - PAJ2207/1906A3
Machine Fitment
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3DS-2 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4C-4 Turbo 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 France 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 Australia 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY .3CX-4 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4CN-4 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 Australia 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 Australia 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3D-4 Australia 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3D-2 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY .3CX-4 S'master 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4C Turbo 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-4 Sitemastr 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3C-2 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4C-2 Turbo 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY .3CX-2 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 France 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3CX-2 Sitemastr 9802/8000
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 4CN-2 9802/8500
PUMP, MAIN HYDRAULIC DOUBLE, STANDARD EXTRADIG DIPPER, OPTIONAL, AUXILIARY 3C-2 9802/8500
