YUKEN A3HG Series High Pressure Variable Displacement Piston Pumps A3HG16 A3HG37 A3HG56 A3HG71 A3HG100 A3HG145 A3HG180

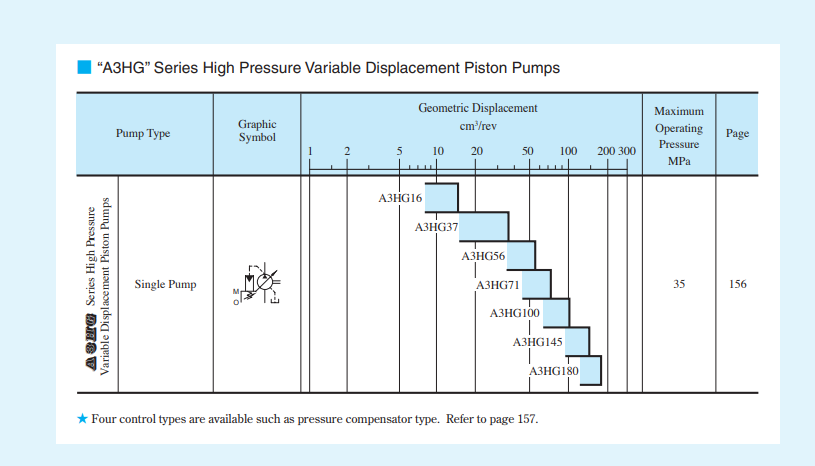

Model Numbers Adjustment Volume MPa 5.5 6.3 5.7 A3HG16/A3HG37/A3HG56-01 A3HG71/A3HG100/A3HG145-01 A3HG180-01. Shaft Extension Keyed Spline. ● High Pressure and wide flow range Maintaining the high performance of our A3H pumps, the improved A3HG series now offers a nominal pressure of 31.5 MPa. With a wide flow range, varying from 16.3 cm3 /rev to 180.7 cm3 /rev. Supporting a wide range of applications as mid-high load capacity pumps. ● Through-drive System Adopted as A Standard Feature The through-drive system adopted as a standard feature allows connecting a pump having the same capacity as the driving pump on the driven side, increasing the maximum flow range. Any pump conforming to international standards can be used on the driven side; replacement in machines can be readily done. ● Wide Variety of Control Modes Four control modes are available to support various functions: pressure compensator type, pilot pressure control type pressure compensator, constant power control type with external pilot and load sensing type. High Pressure Variable Displacement Piston Pumps Pressure Compensator Type:A3HG16-FR01KK-E1C A3HG16-FR01KK-U1C A3HG16-FR01KK-U2C A3HG16-FR01KK-J1C A3HG37-FR01KK-E1C A3HG37-FR01KK-J1C A3HG37-FR01KK-U1C A3HG56-FR01KK-E1C A3HG56-FR01KK-J1C A3HG56-FR01KK-U2C A3HG180-FR01KK-E1D A3HG180-FR01KK-J1D A3HG180-FR01KK-U2D A3HG37-FR01KK-U2C A3HG16-FR07K-E1C A3HG16-FR07K-J1C A3HG16-FR07K-U2C A3HG56-FR07K-E1D A3HG56-FR07K-J1D A3HG100-FR07K-E1D A3HG100-FR07K-J1D A3HG100-FR07K-U2D A3HG37-FR14K-E1D A3HG37-FR14K-J1D A3HG37-FR14K-U2D
