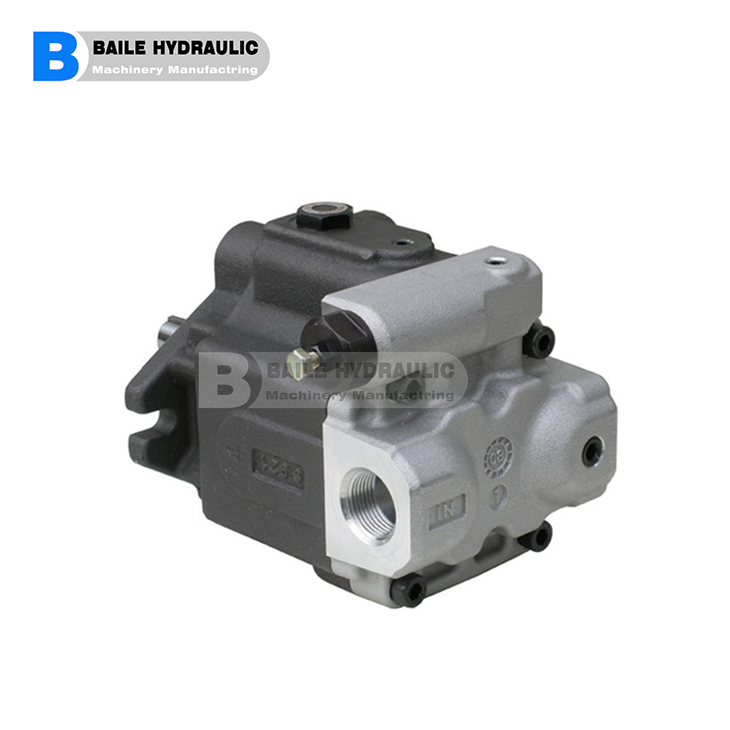

YUKEN ARL1 Series Piston Pumps ARL1-6 ARL1-8 ARL1-12 ARL1-16

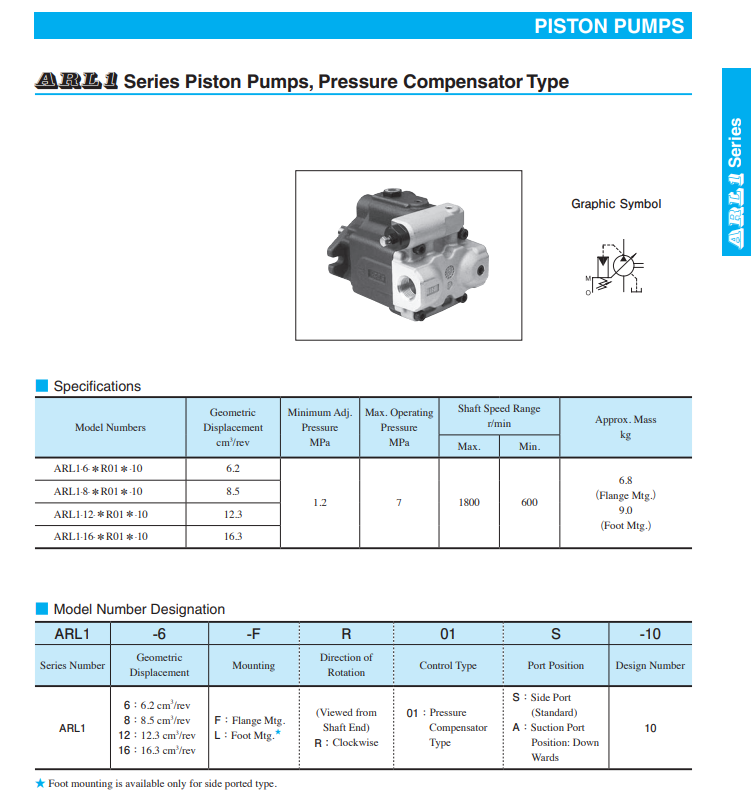

Features ● Low noise and high reliability based on the long established experience The noise at full cut-off with a pressure of 7 MPa, pump rotational speed of 1500 r/min, and measured distance of 1 m is as low as 55 dB(A) (representative value of ARL1-16). This series also has a high reliability based on Yuken’s long-time experience of manufacturing piston pumps. ● Lightweight and compact Compared to the AR Series Variable Displacement Piston Pumps, this series is reduced by 40 % both in mass and volume, realizing a greatly lightweight and compact design. 6：6.2 cm3 /rev 8：8.5 cm3 /rev 12：12.3 cm3 /rev 16：16.3 cm3 /rev. F：Flange Mtg. L：Foot Mtg.
