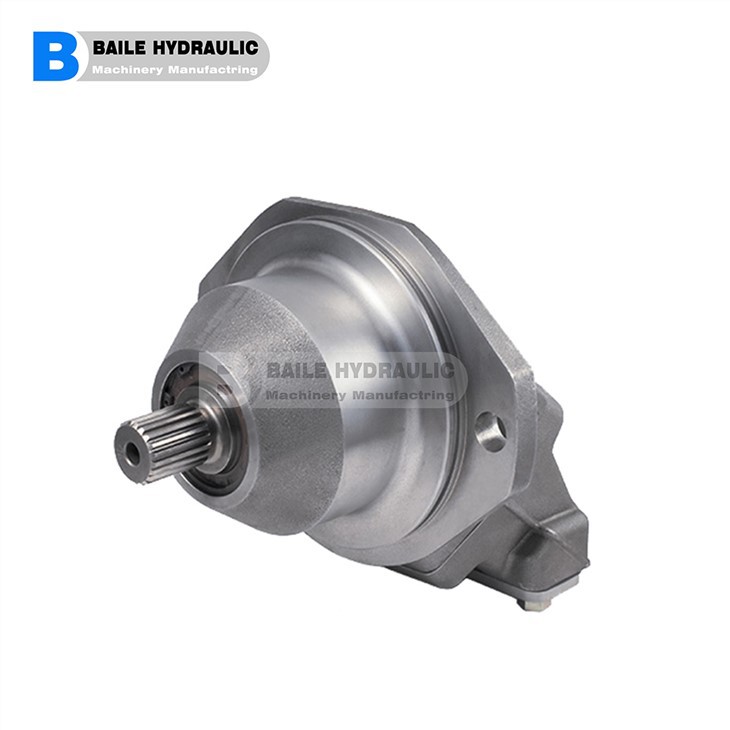

LINDE CMF Series Fixed Displacement Motor For Open And Closed Circuit Operation CMFA2-080

LINDE CMF Series Fixed displacement bent axis motor High speeds 2 Standardized interfaces No need of adaptors 3 Plug-in flange available Compact design .Nominal Size (Maximum Displacement Range):80CC. Flange:C4: ISO 3019-1 / SAE J744, SAE C 4-bolt: 127-4 ˜ D4 :ISO 3019-1 / SAE J744, SAE D 4-bolt: 152-4 E4: ISO 3019-1 / SAE J744, SAE E 4-bolt: 165-4 M4 :ISO 3019-2 metric, 125 mm 4-bolt N4 :ISO 3019-2 metric, 140 mm, 4-bolt ˜ P4: ISO 3019-2 metric, 160 mm, 4-bolt R4 :ISO 3019-2 metric, 180 mm, 4-bolt S4: ISO 3019-2 metric, 200 mm, 4-bolt P2 :Plug-in, similar to ISO 3019-2, 160 mm, 2-bolt Y2: Plug-in, similar to ISO 3019-2, 190 mm, 2-bolt ˜ S2: Plug-in, similar to ISO 3019-2, 200 mm, 2-bolt. Shaft:S7: ISO 3019-1 / SAE J744, 14 teeth, 12/24: 32-4 ˜ S8 :ISO 3019-1 / SAE J744, 21 teeth, 16/32: 35-4 ˜ T1 :ISO 3019-1 / SAE J744, 13 teeth, 8/16: 44-4 T2: ISO 3019-1 / SAE J744, 15 teeth, 8/16: 50-4 D4 ;ISO 3019-2 / DIN5480, W35 D5 ISO 3019-2 / DIN5480, W40 ˜ D6 :ISO 3019-2 / DIN5480, W45 D7: ISO 3019-2 / DIN5480, W50
