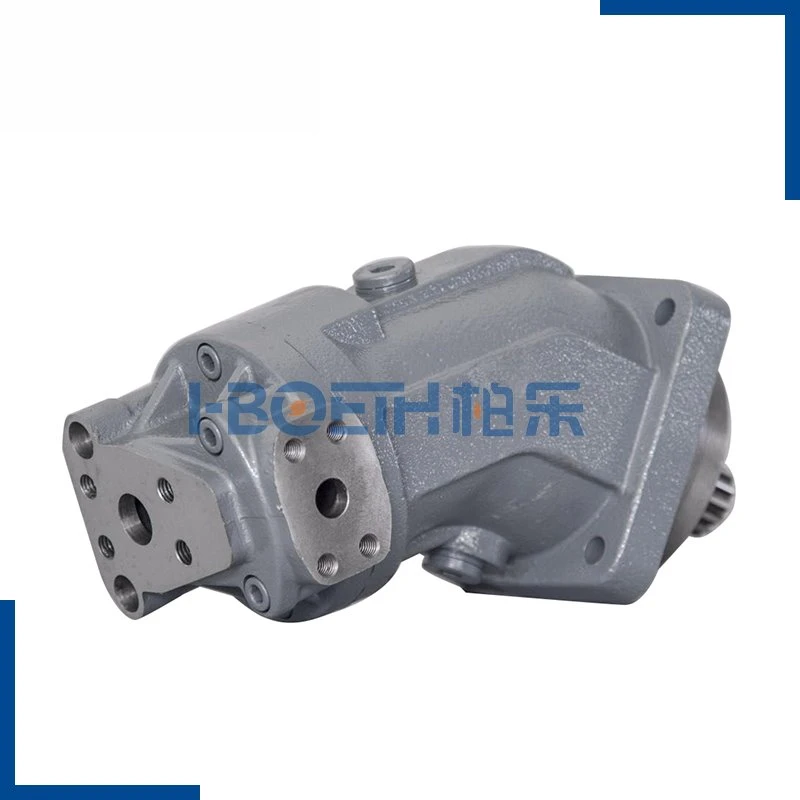

Axial Piston Fixed Hydraulic Pump A2FO5 For REXROTH



All-purpose high pressure pump

Size 5 … 1000

Nominal pressure up to 400 bar

Maximum pressure up to 450 bar

Open circuit

• Robust pump with long service life

• Very high total efficiency

• High power density

• Large variety of available nominal sizes allows exact adjustment to the application

• Optional with long-life bearings for the nominal sizes 250 to 1000

• Bent-axis design





Size				A2FO5	A2FO10	A2FO12	A2FO16	A2FO23	A2FO28	A2FO32	A2FO45	A2FO56	A2FO63	A2FO80	A2FO90	A2FO107	A2FO125	A2FO160	A2FO180	A2FO200	A2FO250	A2FO355	A2FO500	A2FO710	A2FO1000
Displacement geometric, per revolution		Vg	cm³	4.93	10.3	12	16	22.9	28.1	32	45.6	56.1	63	80.4	90	106.7	125	160.4	180	200	250	355	500	710	1000
Nominal pressure		pnom	bar	315	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	350	350	350	350	350
Maximum pressure		pmax	bar	350	450	450	450	450	450	450	450	450	450	450	450	450	450	450	450	450	400	400	400	400	400
Maximum speed		nnom 1)	rpm	5600	3150	3150	3150	2500	2500	2500	2240	2000	2000	1800	1800	1600	1600	1450	1450	1550	1500	1320	1200	1200	950
		nmax 2)	rpm	8000	6000	6000	6000	4750	4750	4750	4250	3750	3750	3350	3350	3000	3000	2650	2650	2750	1800	1600	1500	1500	1200
Flow	at nnom	qV	l/min	27.6	32	38	50	57	70	80	102	112	126	145	162	171	200	233	261	310	375	469	600	852	950
Power	at nnom and pnom	P	kW	14.5	22	25	34	38	47	53	68	75	84	96	108	114	133	155	174	207	219	273	350	497	554
Torque 3)	at pnom	M	Nm	24.7	66	76	102	146	179	204	290	357	401	512	573	679	796	1021	1146	1273	1393	1978	2785	3955	5570
Rotary stiffness		c	kNm/rad	0.63	0.92	1.25	1.59	2.56	2.93	3.12	4.18	5.94	6.25	8.73	9.14	11.2	11.9	17.4	18.2	57.3	73.1	96.1	144	270	324
Moment of inertia for rotary group		JTW	kg·m²	0.00006	0.0004	0.0004	0.0004	0.0012	0.0012	0.0012	0.0024	0.0042	0.0042	0.0072	0.0072	0.0116	0.0116	0.022	0.022	0.0353	0.061	0.102	0.178	0.55	0.55
Maximum angular acceleration		ɑ	rad/s²	5000	5000	5000	5000	6500	6500	6500	14600	7500	7500	6000	6000	4500	4500	3500	3500	11000	10000	8300	5500	4300	4500
Case volume		V	l		0.17	0.17	0.17	0.2	0.2	0.2	0.33	0.45	0.45	0.55	0.55	0.8	0.8	1.1	1.1	2.7	2.5	3.5	4.2	8	8
Weight (approx.)		m	kg	2.5	6	6	6	9.5	9.5	9.5	13.5	18	18	23	23	32	32	45	45	66	73	110	155	325	336



The values are applicable:

– At an abs. pressure pabs = 1 bar at the suction port S

– For the optimum viscosity range of vopt = 36 to 16 mm2/s

- with hydraulic fluid on the basis of mineral oils

Maximum speed (limiting speed) with increased inlet pressure pabs at suction port S, see the following diagram.

Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"
