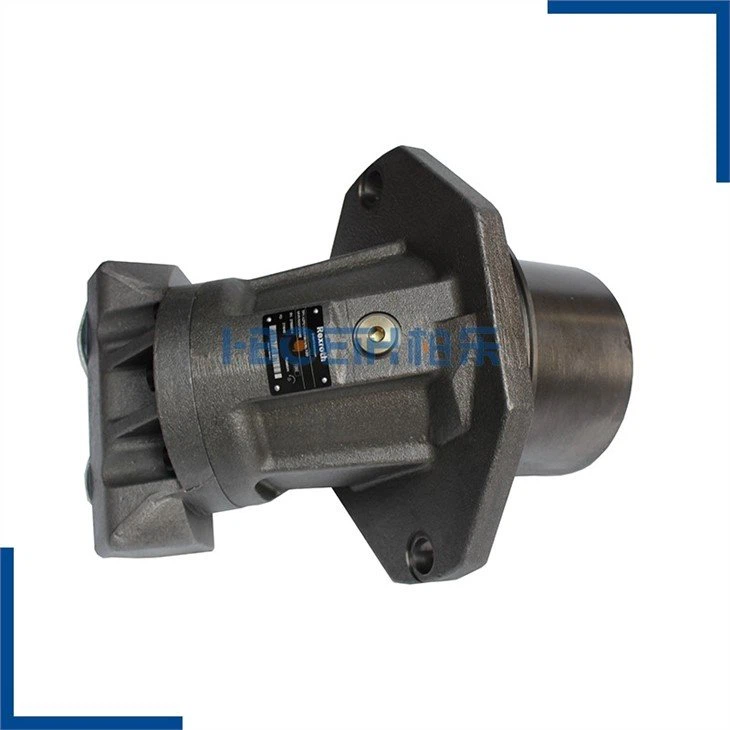

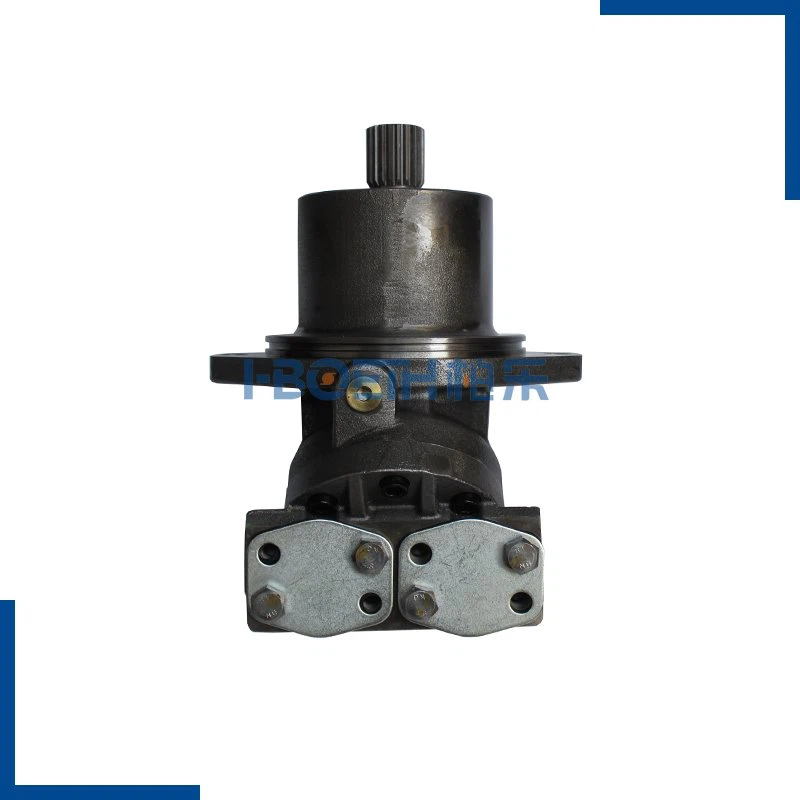

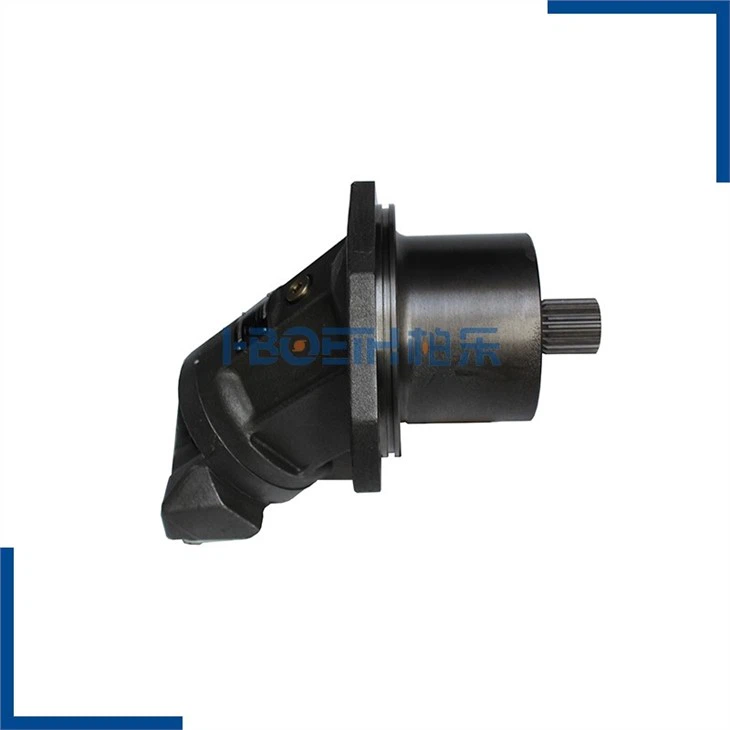

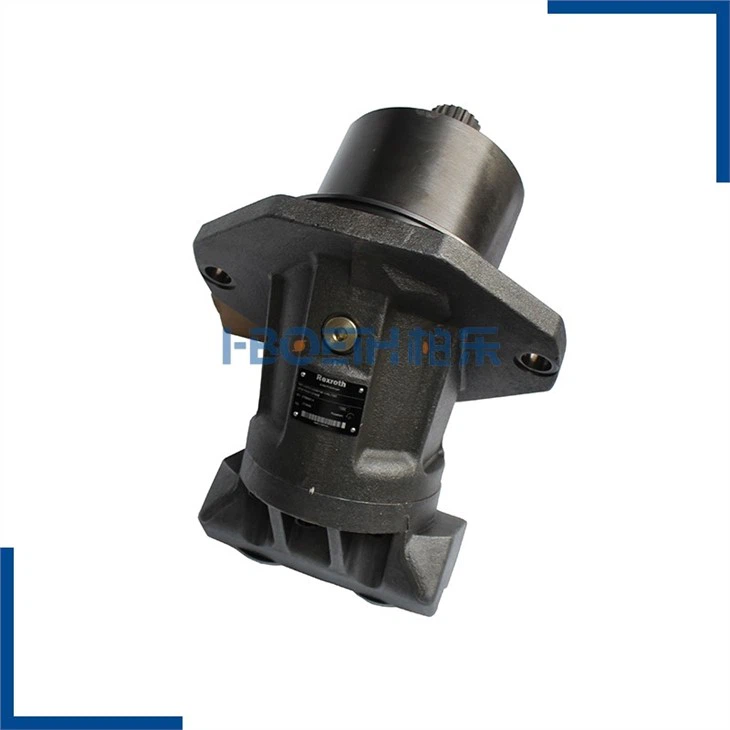

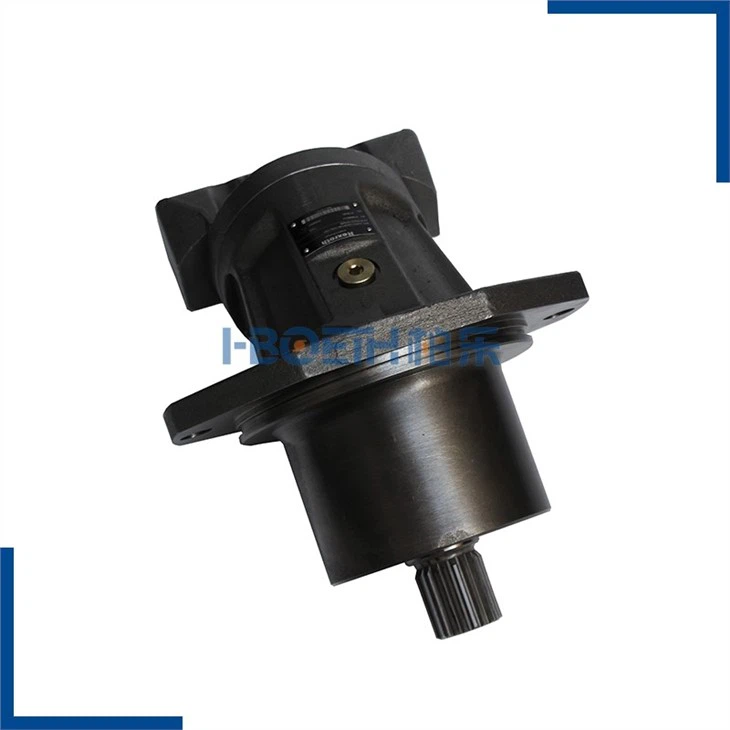

Rexroth Hydraulic Piston Motoe A2FE A2FE125
The A2FE motors is available in displacement sizes: 28 | 32 | 45 | 56 | 63 | 80 | 90 | 107 | 125 | 160 | 180 | 250 | 355 cc/rev. Nominal pressure is up to 400 bar, maximum pressure is up to 450 bar. The output torque increases with the pressure differential between the high-pressure and the low-pressure side.
rexroth hydraulic piston motoe A2FE series
The A2FE motors is available in displacement sizes: 28 | 32 | 45 | 56 | 63 | 80 | 90 | 107 | 125 | 160 | 180 | 250 | 355 cc/rev. Nominal pressure is up to 400 bar, maximum pressure is up to 450 bar. The output torque increases with the pressure differential between the high-pressure and the low-pressure side.
Other features of the Bosch Rexroth A2FE motor include:
Space-saving construction due to recessed mounting flange
Easy to install, simply slide into the mechanical gearbox
High power density
Very high total efficiency
High starting and total efficiency
Optional with integrated pressure relief valve
No configuration specifications to be observed when installing
Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
Bent-axis design
Table of values
|
Size |
28 |
32 |
37 |
45 |
56 |
63 |
80 |
90 |
107 |
23 |
28 |
32 |
45 |
56 |
63 |
80 |
90 |
107 |
125 |
160 |
180 |
45 |
56 |
63 |
80 |
90 |
107 |
125 |
|||
|
Version |
A2FEN |
A2FEM |
A2FEH |
||||||||||||||||||||||||||||
|
Displacement |
Vg |
cm³ |
28.1 |
32 |
36.8 |
44.2 |
56.6 |
63 |
81.7 |
90.5 |
108.8 |
22.9 |
28.1 |
32 |
44.9 |
56.6 |
63 |
79.8 |
90.5 |
106.7 |
125 |
160.4 |
180 |
44.9 |
56.6 |
63 |
79.8 |
90.5 |
106.7 |
125 |
|
|
Nominal pressure |
pnom |
bar |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
|
|
Maximum pressure |
pmax |
bar |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
|
Maximum speed |
nnom 1) |
rpm |
4725 |
4725 |
4200 |
4200 |
3750 |
3750 |
3375 |
3375 |
3000 |
6300 |
6300 |
6300 |
5000 |
5000 |
5000 |
4500 |
4500 |
4000 |
4000 |
3600 |
3600 |
5000 |
5000 |
5000 |
4500 |
4500 |
4000 |
4000 |
|
|
nmax 2) |
rpm |
5175 |
5175 |
4650 |
4650 |
4125 |
4125 |
3700 |
3700 |
3300 |
6900 |
6900 |
6900 |
5500 |
5500 |
5500 |
5000 |
5000 |
4400 |
4400 |
4000 |
4000 |
5500 |
5500 |
5500 |
5000 |
5000 |
4400 |
4400 |
||
|
Inlet flow |
at nnom |
qV |
l/min |
133 |
151 |
155 |
186 |
212 |
236 |
276 |
305 |
326 |
144 |
177 |
202 |
225 |
283 |
315 |
359 |
407 |
427 |
500 |
577 |
648 |
225 |
283 |
315 |
359 |
407 |
427 |
500 |
|
Torque 3) |
at pnom |
M |
Nm |
134 |
153 |
176 |
211 |
270 |
301 |
390 |
432 |
519 |
146 |
179 |
204 |
286 |
360 |
401 |
508 |
576 |
679 |
796 |
1021 |
1146 |
322 |
405 |
451 |
571 |
648 |
764 |
895 |
|
Rotary stiffness |
c |
kNm/rad |
2.2 |
2.46 |
4.29 |
4.84 |
6.97 |
8.11 |
8.47 |
9.85 |
10.96 |
1.76 |
2.2 |
2.46 |
4.65 |
6.97 |
8.11 |
9.1 |
9.85 |
12.49 |
13.65 |
21.32 |
23.04 |
4.65 |
6.97 |
8.11 |
9.1 |
9.85 |
12.49 |
13.65 |
|
|
Moment of inertia for rotary group |
JTW |
kg·m² |
0.001 |
0.0011 |
0.0012 |
0.0012 |
0.0034 |
0.0035 |
0.0037 |
0.0058 |
0.0061 |
0.001 |
0.001 |
0.0011 |
0.0033 |
0.0034 |
0.0035 |
0.0056 |
0.0058 |
0.0088 |
0.0091 |
0.0248 |
0.0254 |
0.0033 |
0.0034 |
0.0035 |
0.0056 |
0.0058 |
0.0088 |
0.0091 |
|
|
Case volume |
V |
l |
0.3 |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.6 |
0.65 |
0.65 |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.6 |
0.65 |
0.65 |
1.1 |
1.1 |
0.8 |
0.8 |
0.6 |
0.6 |
0.6 |
0.65 |
0.65 |
1.1 |
1.1 |
|
|
Weight (approx.) |
m |
kg |
10.7 |
10.7 |
10.7 |
10.7 |
17 |
17 |
17 |
23 |
23 |
10.7 |
10.7 |
10.7 |
17 |
17 |
17 |
23 |
23 |
32.8 |
32.8 |
41 |
41 |
17 |
17 |
17 |
23 |
23 |
32.8 |
32.8 |
|
