REXROTH M-2SED6 M-3SED6 M-4SED6 2/2, 3/2 And 4/2 Directional Seat Valve With Solenoid Actuation

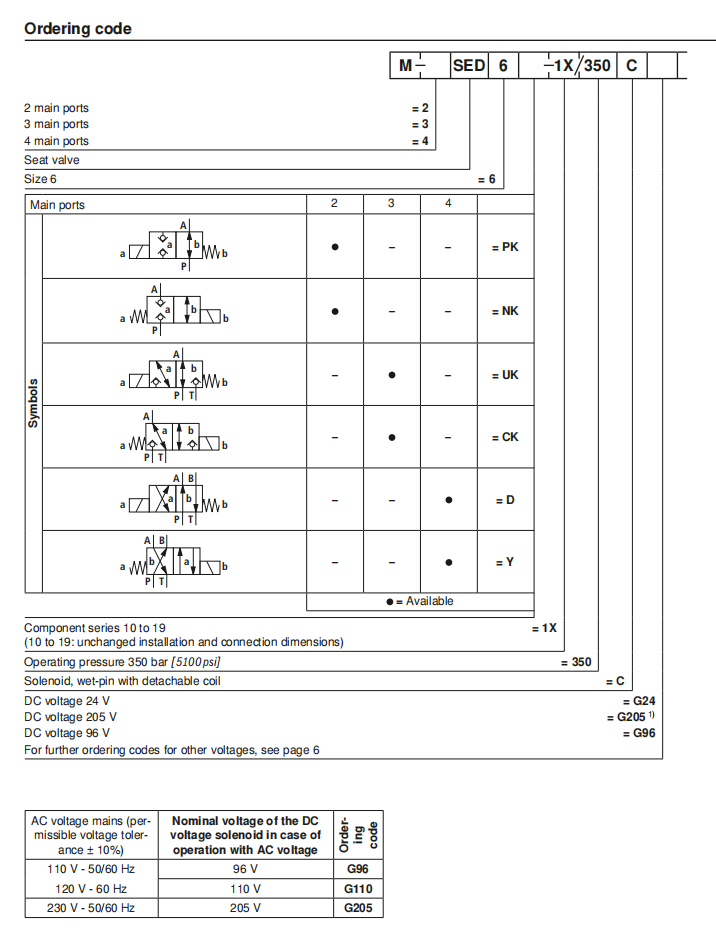

Size M-2SED6 M-3SED6 M-4SED6 Component series 1X Maximum operating pressure 350 bar [5100 psi] Maximum flow 25 l/min [6.6 gpm] Features – Direct operated directional seat valve with solenoid actuation – Porting pattern according to DIN 24340 form A (without locating hole) – Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03 (with locating hole) – Safe switching also with longer standstill periods under pressure – Wet-pin DC voltage solenoids with detachable coil (AC voltage possible by means of a rectifier) – Solenoid coil can be rotated by 90° – The coil can be changed without having to open the pressure-tight chamber – Electrical connection as individual connection (for more electrical connections, see RE 08010) – With concealed manual override, optional – Inductive position switch (contactless), see RE 24830 No code = without check valve insert, without throttle insert P = with check valve insert B12 = Throttle Ø 1.2 mm [0.047 inch] B15 = Throttle Ø 1.5 mm [0.059 inch] B18 = Throttle Ø 1.8 mm [0.071 inch] B20 = Throttle Ø 2.0 mm [0.079 inch] B22 = Throttle Ø 2.2 mm [0.087 inch] Other orifices upon request.
