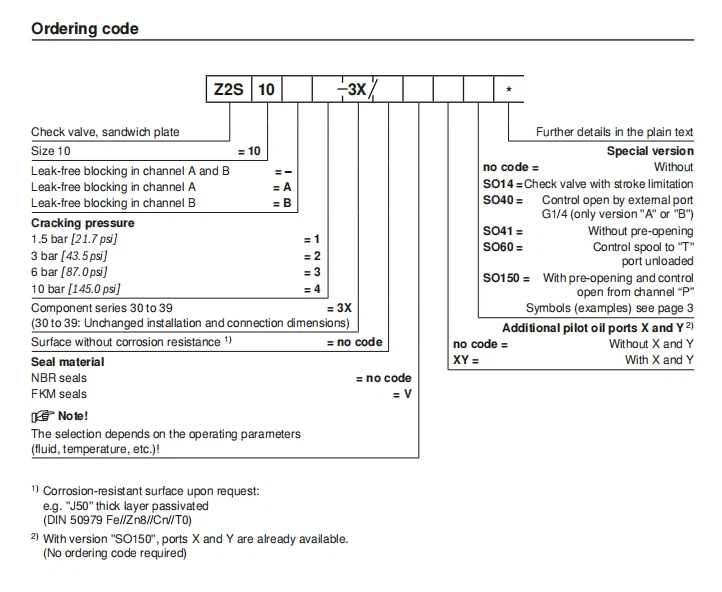

REXROTH Type Z2S10 Check Valve, Pilot Operated Z2S101-3X Z2S10A Z2S10A2-3X Z2S10B Z2S10B3-3X Z2S10B4-3X

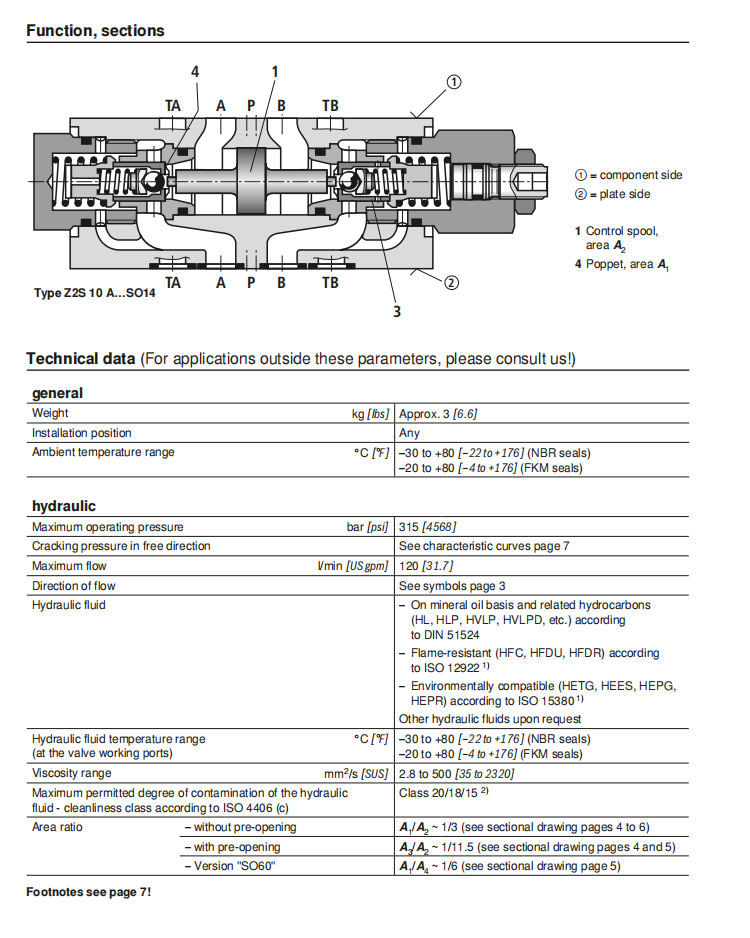

Size Z2S10 Component series 3X Maximum operating pressure 315 bar [4568 psi] Maximum flow 120 l/min [31.7 US gpm] Features – Sandwich plate valve for use in vertical stackings – Porting pattern according to ISO 4401-05-04-0-05, ISO 4401-05-05-0-05 and NFPA T3.5.1 R2-2002 D05 – For the leak-free blocking of one or two actuator ports, optionally – Different cracking pressures – With pre-opening (standard); without pre-opening optional – Check valve installation sets separately available – Special versions upon request – Amending documentation: • "Sandwich plates size 10", data sheet 48052 • "Hydraulic fluids on a mineral oil basis", data sheet 90220
