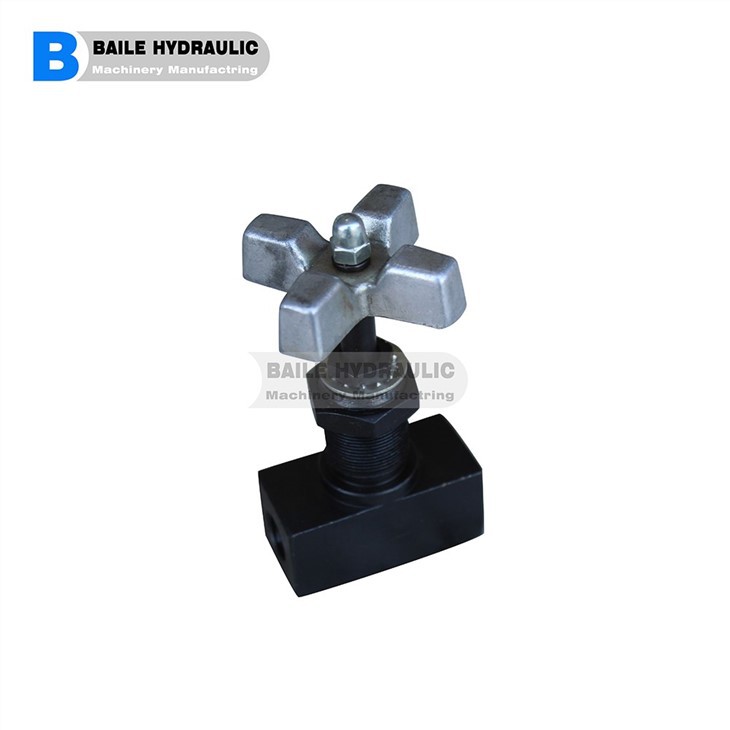

YUKEN GCT-02-32 In-line Type Needle Valve Threaded Connection GCTR-02-32 Angle Type Needle Valve Threaded Connectio

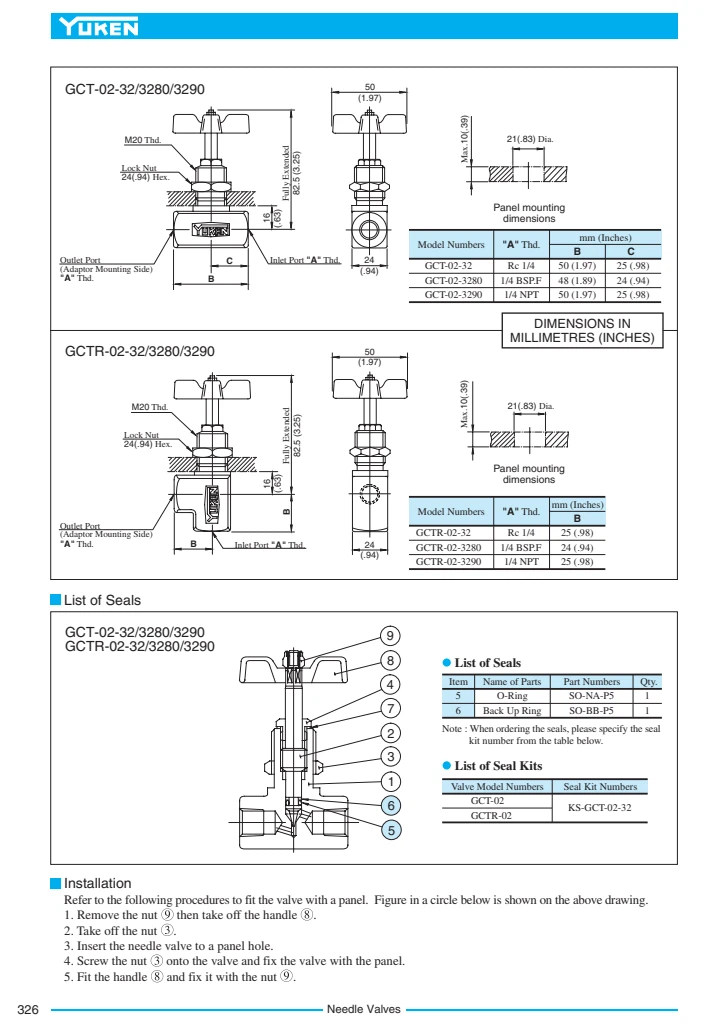

Adaptor AG-02S AG-03S AG-04S G 1/4 G 3/8 G 1/2 24 (.94) 24 (.94) 27 (1.06) 14 (.55) 16 (.63) 18 (.71) 32 (1.26) 35 (1.38) 37 (1.46) 0.075 (.165) 0.075 (.165) 0.08 (.176) BCL Thread Size Dimensions mm (Inches) "D" Thd. Adaptor Type Approx. Mass kg (lbs.) Used as stop valves for pressure gauge lines and small-capacity line. Also can be used as restrictors for regulating flow rates in pilot lines. Needle Valves Used where pressure gauges are attached directly to needle valves. Equipped with pressure snubber for reducing harmful surges to protect pressure gauges. Adaptors are not accessories to needle valves. Order them referring to the table below. For the models shown here, only Japanese standard specifications are available.
