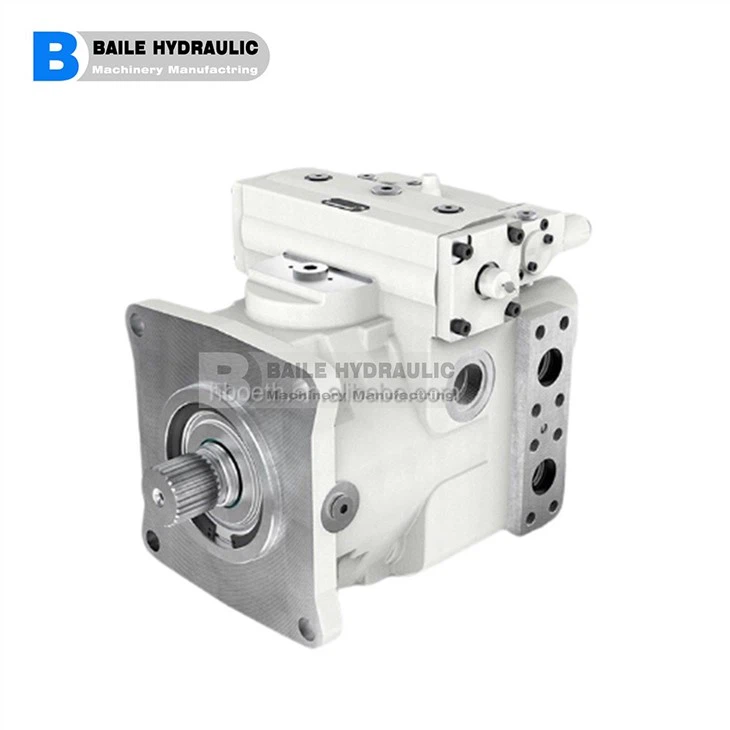

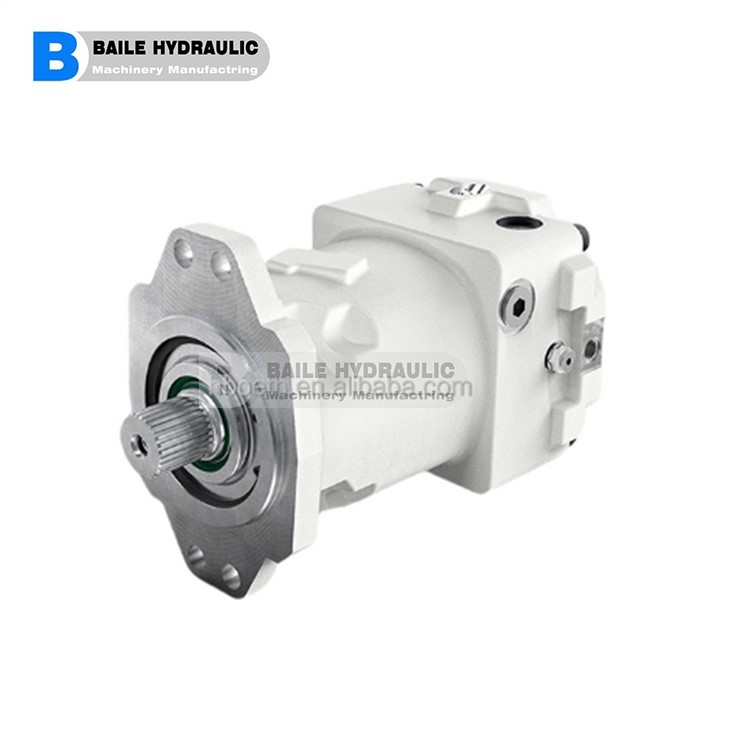

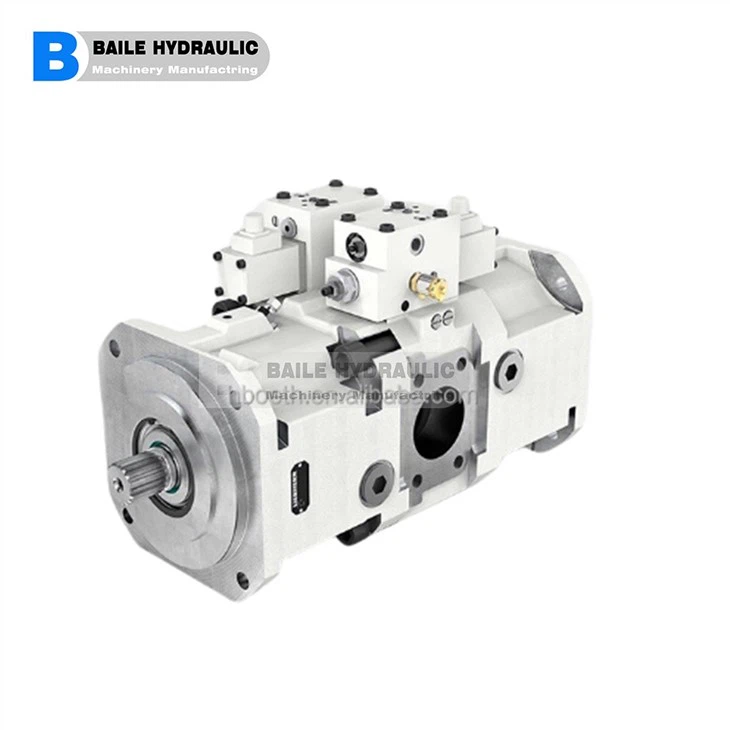

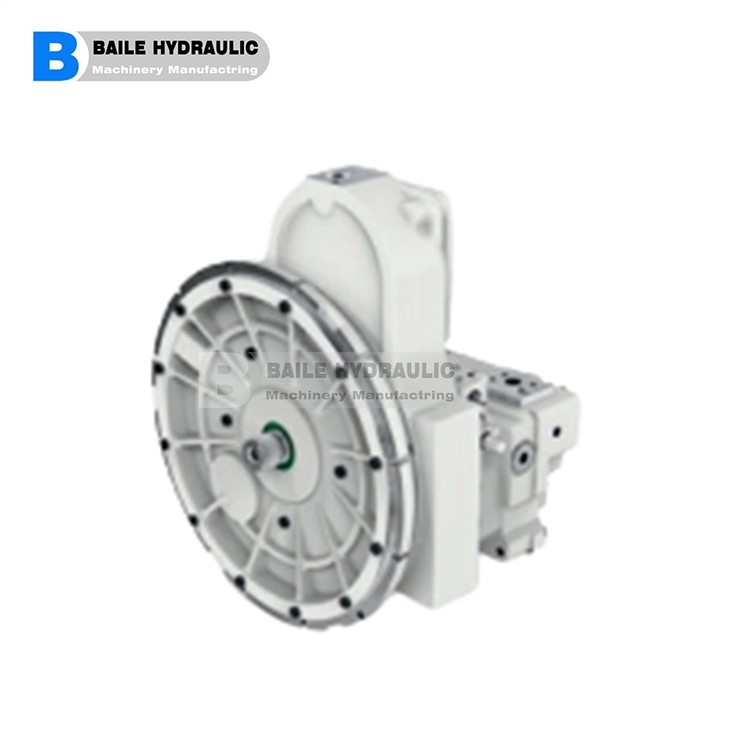

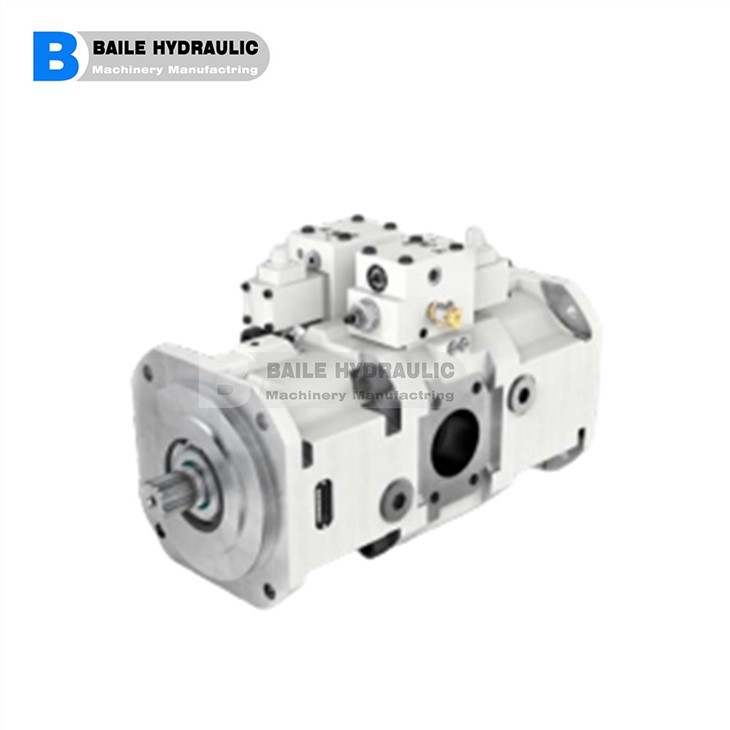

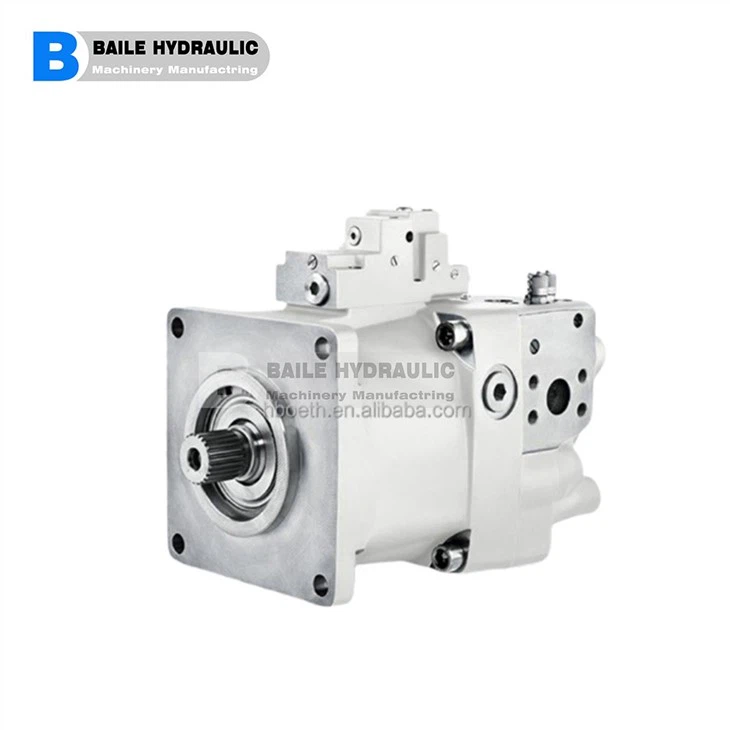

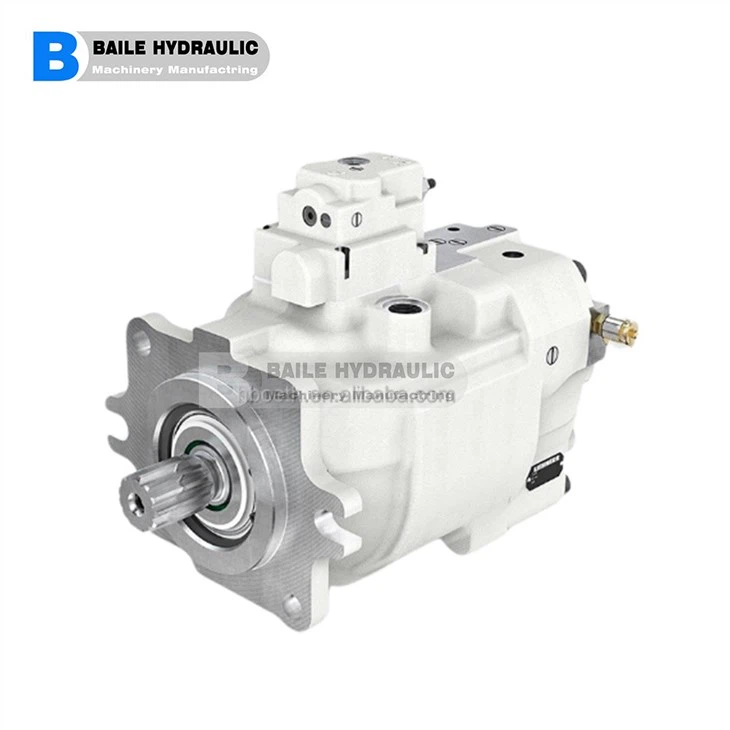

LIEBHERR Parallel Variable Displacement Pump DPVP DPVP108 DPVP 165

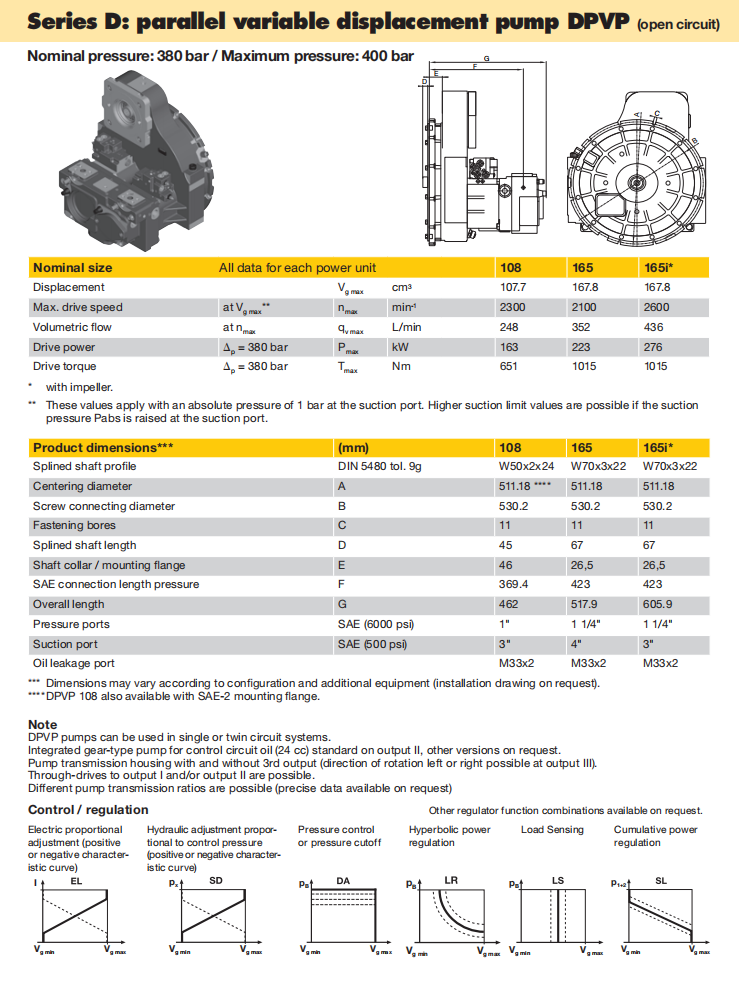

DPVP pumps can be used in single or twin circuit systems. Integrated gear-type pump for control circuit oil (24 cc) standard on output II, other versions on request. Pump transmission housing with and without 3rd output (direction of rotation left or right possible at output III). Through-drives to output I and/or output II are possible. Different pump transmission ratios are possible (precise data available on request). Splined shaft profile DIN 5480 tol. 9g W50x2x24 W70x3x22 W70x3x22 Displacement Vg max cm3 107.7 167.8 167.8 Drive power p = 380 bar Pmax kW 163 223 276 Max. drive speed at Vg max** nmax min-1 2300 2100 2600
