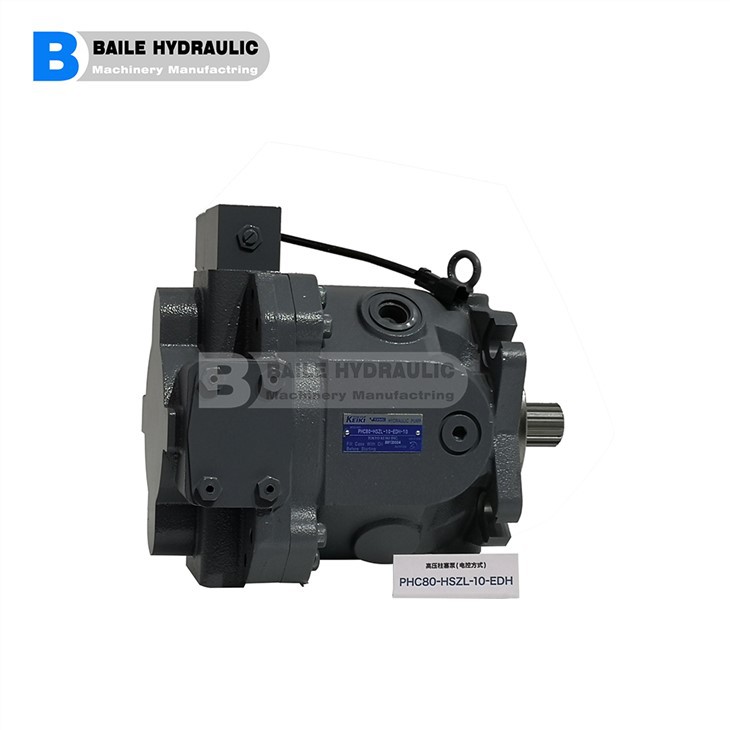

TOKYO KEIKI PH Series Low Noise, High Pressure Variable Displacement Piston Pumps PH56 PH80 PH100 PH130 PH170

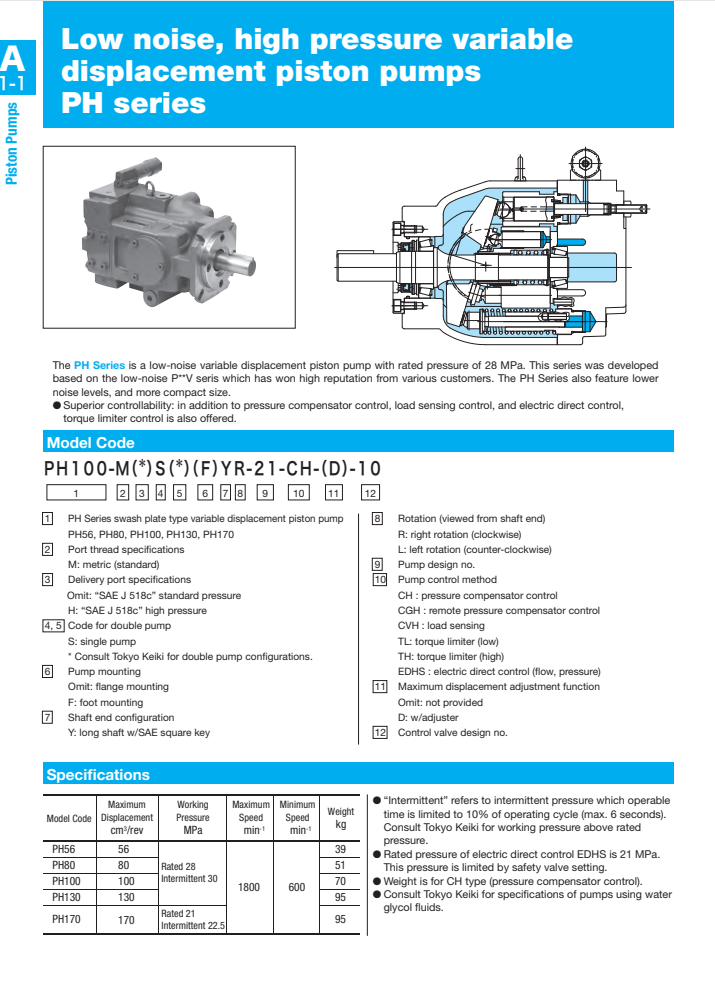

PH Series swash plate type variable displacement piston pump PH56, PH80, PH100, PH130, PH170 .The PH Series is a low-noise variable displacement piston pump with rated pressure of 28 MPa. This series was developed based on the low-noise P**V seris which has won high reputation from various customers. The PH Series also feature lower noise levels, and more compact size. ● Superior controllability: in addition to pressure compensator control, load sensing control, and electric direct control, torque limiter control is also offered. Pump control method CH : pressure compensator control CGH : remote pressure compensator control CVH : load sensing TL: torque limiter (low) TH: torque limiter (high)
