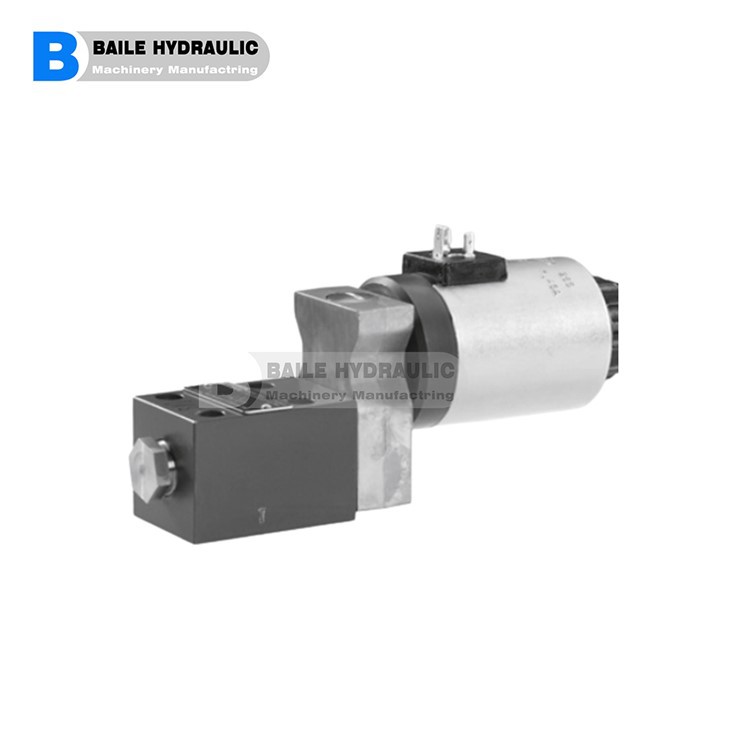

REXROTH E-3SE6 W-3SE6 E-4SE6 W-4SE6 3/2 And 4/2 Directional Poppet Valve, With Solenoid Operation, For Water Emulsions And Water

Size:E-3SE6U7X W-3SE6U7X E-4SE6D7X W-4SE6D7X E-3SE6C7X W-3SE6C7X E-4SE6Y7X W-4SE6Y7X Component series 7X Maximum operating pressue 630 bar Maximum flow 25 l/min Oil-in-water emulsion, water glycol, mineral oil = E Water = W Features – Direct operated directional poppet valve with solenoid operation – Porting pattern to ISO 4401-03-02-0-05 (with locating bore) – Air gap DC solenoid – Electrical connection as individual connection – Port is leak-free closed – Reliable operation even when under pressure over longer periods of time. W-3SE 6 C7X/420G24N9K4 R901138504 W-3SE 6 U7X/420G24N9K4 R901138702 E-3SE 6 C7X/420G24N9K4 R901138718 E-3SE 6 C7X/630G24N9K4 R901138758 E-3SE 6 U7X/630G24N9K4 R901138401
