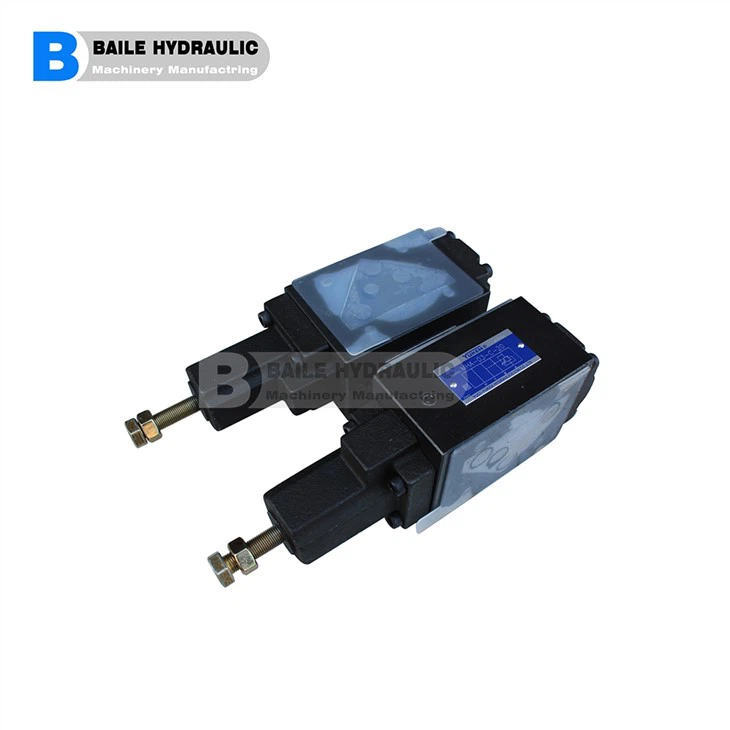

YUKEN Reducing Modular Valves MRP-03 MRA-03 MRB-03 Series MRP-03-B-30 MRA-03-B-30 MRB-03-B-30 MRP-03-H-30 MRA-03-H-30 MRB-03-H-30

MRP : Reducing Valve for P-Line MRA: Reducing Valve for A-Line MRB: Reducing Valve for B-Line B: 1-7 (145-1020) H: 3.5-24.5 (510-3550) In pressure adjustment range "H", if the pressure in the primary side is set above 20 MPa (2900 PSI) and the pressure in the secondary side is set below 10 MPa (1450 PSI), the maximum flow is limited to 50 L/min (13.2 U.S.GPM). The minimum adjustment pressure equals the lower limit of either pressure adjustment range (B, H) plus the tank line back pressure of the next page. This back pressure should include the value of the T-line pressure drop characteristics of the values stacked to the base plate side of the modular valve.
