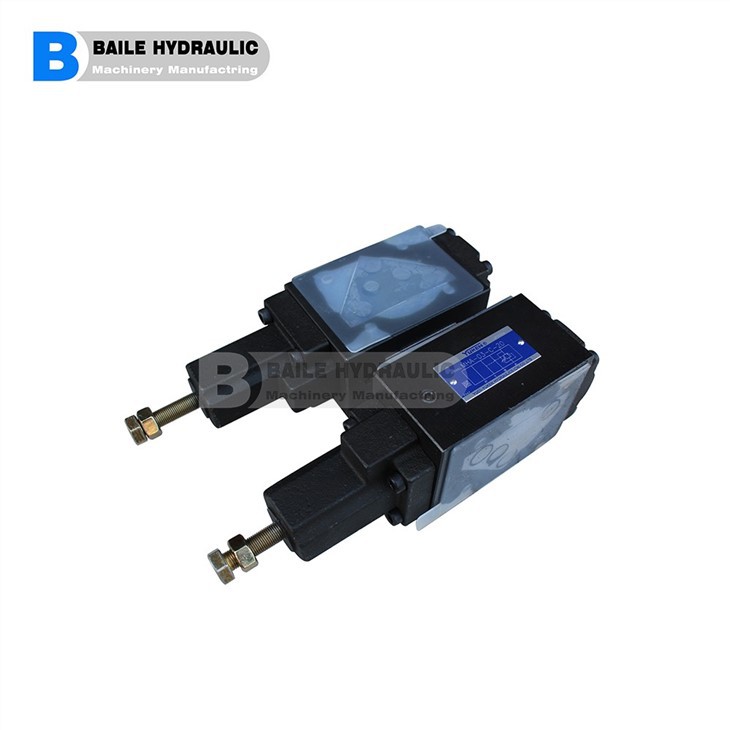

YUKEN Relief Modular Valves MBP-03 MBA-03 MBB-03 MBW-03 Series MBP-03-B-30 MBA-03-B-30 MBB-03-B-30 MBW-03-B-30 MBP-03-H-30 MBA-03-H-30 MBB-03-H-30 MBW-03-H-30

MBP : Relief Valve for P-Line MBA : Relief Valve for A-Line MBB : Relief Valve for B-Line MBW : Relief Valve for A&B-Lines The minimum adjustment pressure equals the value obtained from the minimum adjustment pressure characteristics plus the tank line back pressure of the next page. This back pressure should include the value of the T-line pressure drop characteristics of the valves stacked to the base plate side of the modular valve. To make pressure adjustment, loosen the lock nut and turn the pressure adjustment screw clockwise or anti-clockwise. For an increase of pressure, turn the screw clockwise. Be sure to re-tighten the lock nut firmly after making adjustment to the pressure.
