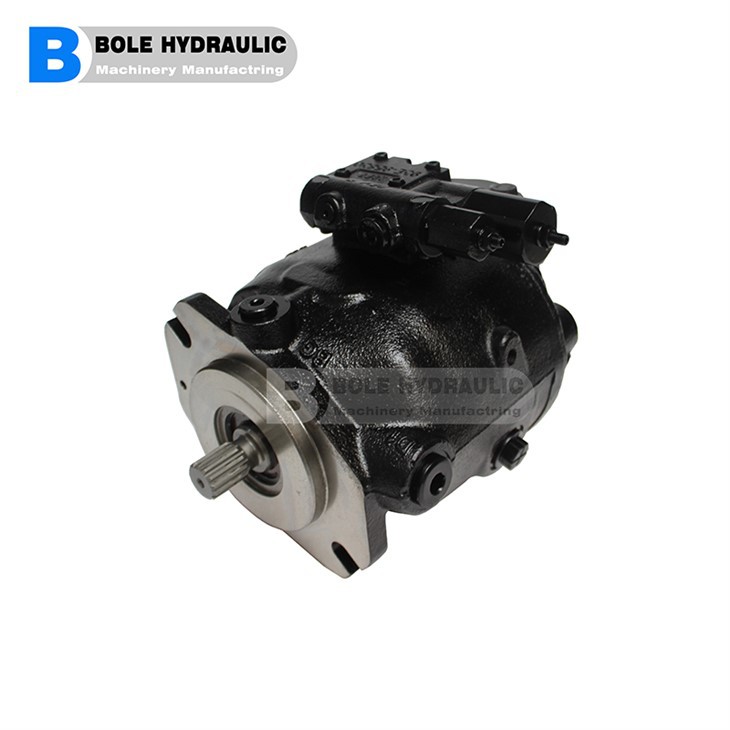

Parker Hannifin 20/903000 JCB 3CX Loadall Twin Hydraulic Pump 29 + 29 CC/REV
Technical Specifications Rotation: Counter-Clockwise (looking from shaft end) Shaft: 1” Diameter Parallel Keyed Shaft Mounting Flange: SAE B 2 Hole Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm) Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm) Inlet: Combined 2” SAE Flange Front Pump Outlet: 1 1/16”-12 UNF Threaded Rear Pump Outlet: 7/8”-14 UNF Threaded Maximum Working Pressure On Front Pump: 275 bar Maximum Working Pressure On Rear Pump: 275 bar Max. Input Shaft Torque: 325 Nm Weight: 26 KG Replaces the following JCB part numbers 20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072 Machine Fitment PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine 9802/9750 PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730 PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730 PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine 9802/9760 PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine 9802/9720 PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine 9802/9770 PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730 PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780 PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750 PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770 PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC 3CXSM 9802/9700 PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC 3CX 9802/9700 PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600 PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
Shijiazhuang Baile Electromechanical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of parker hannifin 20/903000 jcb 3cx loadall twin hydraulic pump 29 + 29 cc/rev in China. With abundant experience, we warmly welcome you to wholesale high quality products at competitive price from our factory. Good service and punctual delivery are available.
Technical Specifications
Rotation: Counter-Clockwise (looking from shaft end)
Shaft: 1" Diameter Parallel Keyed Shaft
Mounting Flange: SAE B 2 Hole
Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm)
Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)
Inlet: Combined 2" SAE Flange
Front Pump Outlet: 1 1/16"-12 UNF Threaded
Rear Pump Outlet: 7/8"-14 UNF Threaded
Maximum Working Pressure On Front Pump: 275 bar
Maximum Working Pressure On Rear Pump: 275 bar
Max. Input Shaft Torque: 325 Nm
Weight: 26 KG
Replaces the following JCB part numbers
20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072
Machine Fitment
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CX 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
