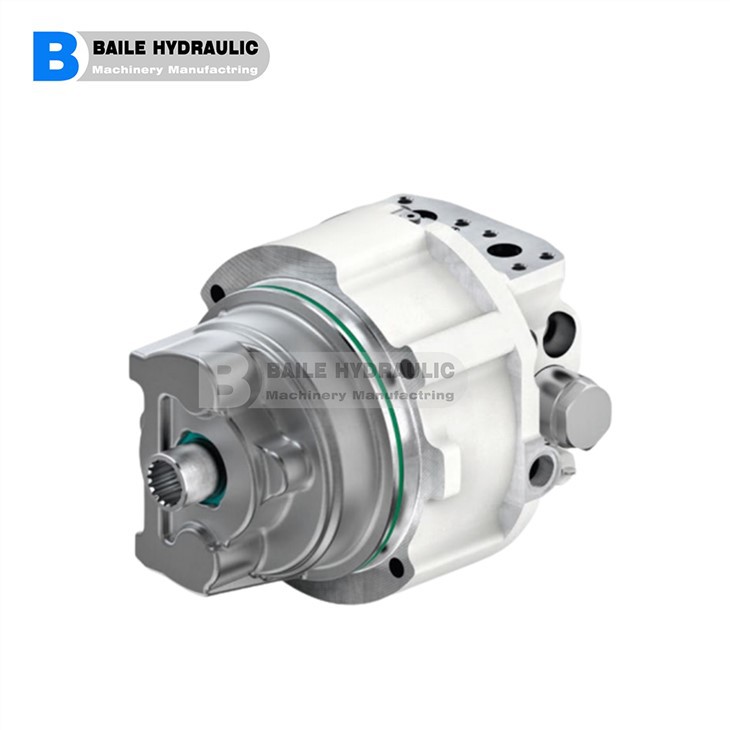

LIEBHERR CMVE Variable Displacement Plug-in Motor (open Circuit) CMVE108 CMVE165

This motor is mainly intended for installation in a mechanical travel drive (FAT). Integrated brake valve, pressure relief valves and internal multi-disc brake. Nominal size CMVE108 CMVE165 Displacement Vg cm3 108 165.9 Max. speed at Vg max and ip = 360 bar nmax min-1 3470 3000 Max. speed at Vg / Vg max = 0,65 and ip = 200 bar nmax min-1 4500 4200 Flow at nmax qv max L/min 375 498 Output power p = 360 bar Pmax kW 225 299 Output torque p = 360 bar Tmax Nm 619 951 Nominal pressure: 380 bar / Maximum pressure: 400 bar
