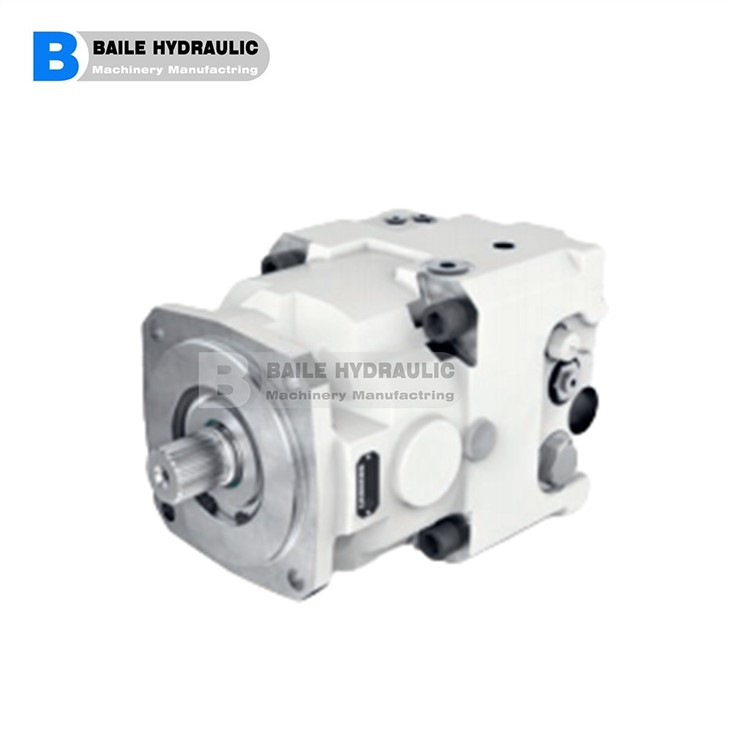

LIEBHERR DMVD Double Motor Variable Displacement DMVD165/108 DMVD165/165

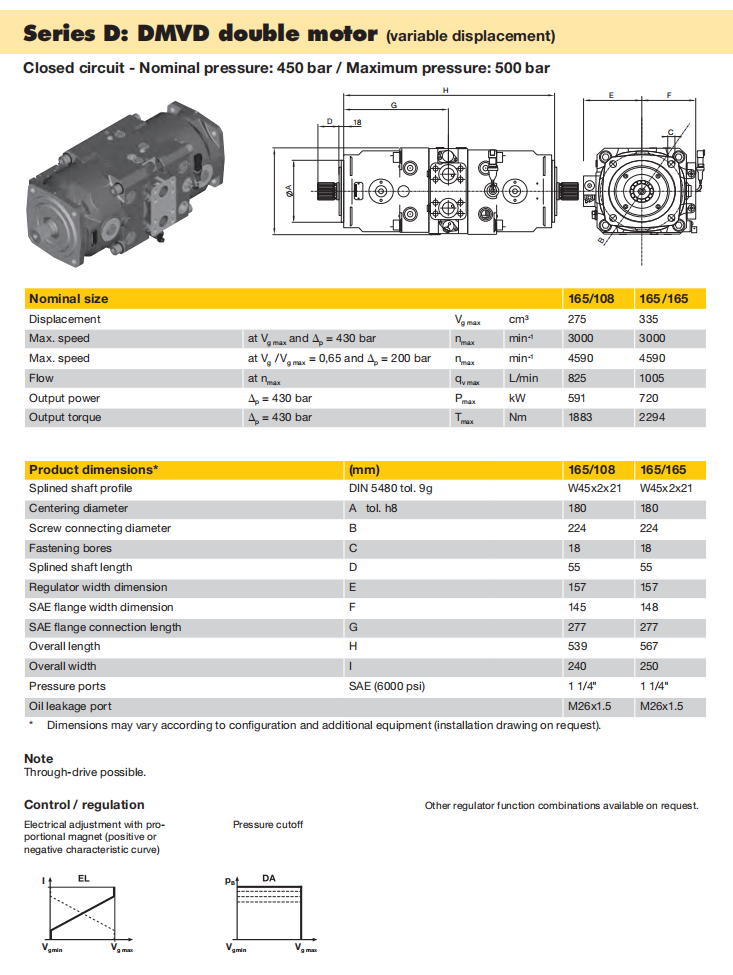

Nominal size DMVD165/108 DMVD165/165 Displacement Vg max cm3 275 335 Max. speed at Vg max and ip = 430 bar nmax min-1 3000 3000 Max. speed at Vg / Vg max = 0,65 and ip = 200 bar nmax min-1 4590 4590 Flow at nmax qv max L/min 825 1005 Output power p = 430 bar Pmax kW 591 720 Output torque p = 430 bar Tmax Nm 1883 2294 Product dimensions* (mm) 165/108 165/165 Splined shaft profile DIN 5480 tol. 9g W45x2x21 W45x2x21 Centering diameter A tol. h8 180 180 Screw connecting diameter B 224 224 Fastening bores C 18 18 Splined shaft length D 55 55 Regulator width dimension E 157 157 SAE flange width dimension F 145 148 SAE flange connection length G 277 277 Overall length H 539 567 Overall width I 240 250 Pressure ports SAE (6000 psi) 1 1/4" 1 1/4" Oil leakage port M26x1.5 M26x1.5 Closed circuit - Nominal pressure: 450 bar / Maximum pressure: 500 bar
